Why Excavators Over 1.5 Tons Demand Internal Gear Slewing Bearings (And How to Identify Them)

When it comes to heavy machinery, particularly excavators weighing 1.5 tons or more, stability and torque management are non-negotiable. While smaller mini-excavators might get away with external gear systems, the industry standard shifts dramatically as the machine size increases. For any excavator over 1.5 tons, the use of an Internal Gear Slewing Bearing is theoretically a must. But why is this the case, and how can you ensure you are getting the right part?

The Engineering Logic: Why Internal Gear?

The primary reason lies in the physics of rotation and space utilization.

Higher Torque Capacity: As excavators get heavier, the rotational torque required to swing the upper structure increases. Internal gear bearings allow for a larger pitch circle diameter relative to the overall size, providing better leverage and distributing stress more evenly across the gear teeth.

Compact Design & Protection: By placing the gear teeth on the inner ring, the outer ring remains smooth. This protects the critical gearing mechanism from external debris, rocks, and mud—common hazards on a construction site. It also allows for a more compact footprint, which is crucial for maintaining the machine's center of gravity.

Structural Rigidity: The internal configuration generally offers superior rigidity, reducing deflection under heavy loads. This ensures smoother operation and extends the lifespan of both the bearing and the slew motor.

Visual Guide: Spotting the Difference

Identifying the correct bearing doesn't require a degree in engineering. You can distinguish them quickly by looking at three key factors: gear orientation, physical dimensions, and weight.

1. Gear Orientation (The Most Obvious Sign)

The most immediate visual cue is the direction of the gear teeth.

Internal Gear (Correct for >1.5T): Look at the bottom bearing in the comparison image. The gear teeth are cut into the inner circumference of the ring, facing inward toward the center hole. This is the standard for medium-to-large excavators.

External Gear (For Mini Excavators): Look at the top bearing. The gear teeth protrude from the outer edge of the ring. These are typically found on micro-excavators (under 1.5 tons) where space constraints and lower torque requirements make this simpler design viable.

2. Size Matters

There is often a correlation between the type of gear and the physical scale of the component.

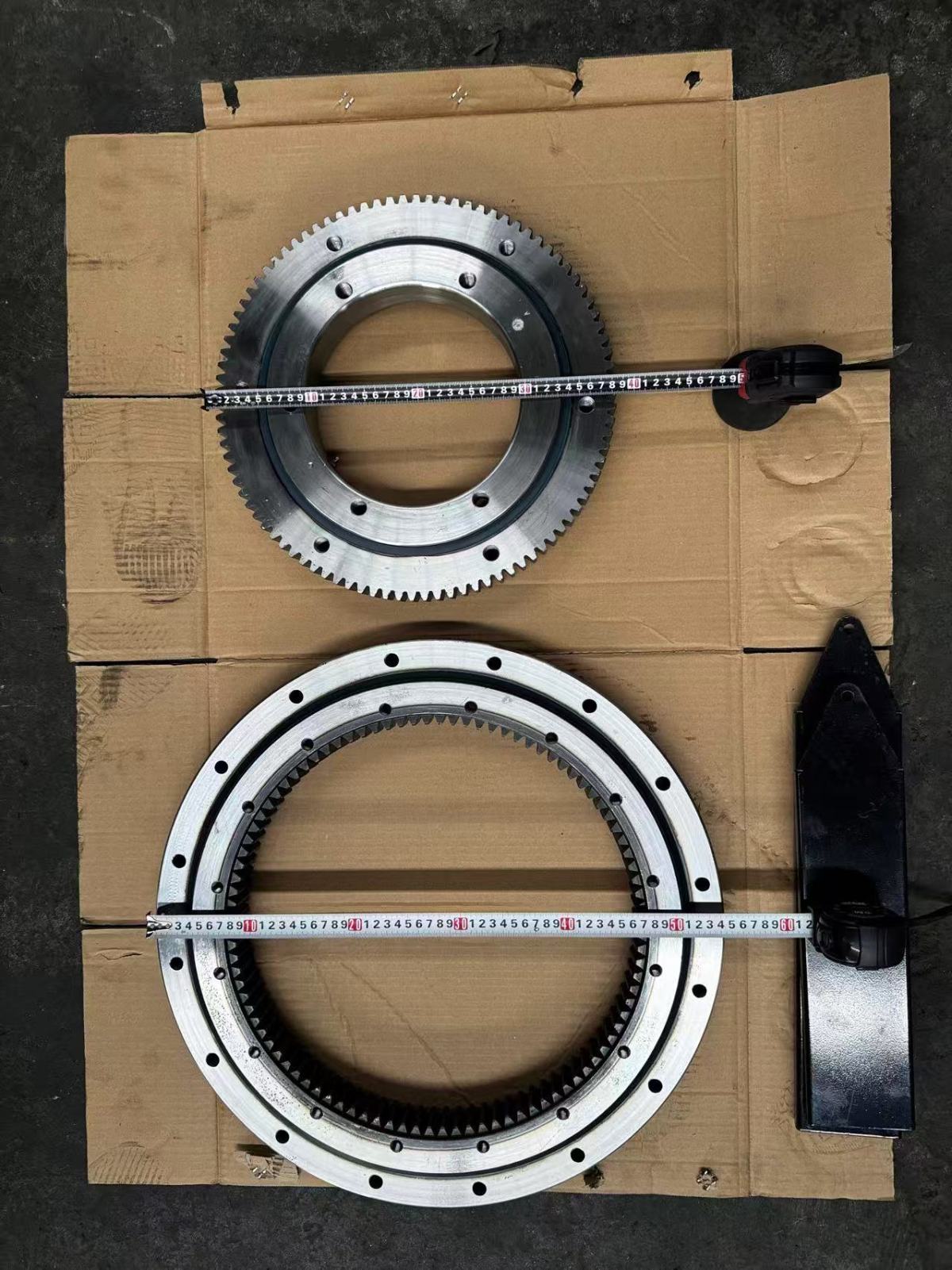

In the provided reference images, the internal gear unit (bottom) has a significantly larger outer diameter (approx. 400mm) compared to the external gear unit (top, approx. 300mm). Larger excavators require larger bearings to support the increased weight of the cab and boom assembly. If you are sourcing a part for a 2-ton+ machine and the bearing looks "small" or resembles the top unit, it is likely incorrect.

3. Weight as a Quality Indicator

Heavier machines demand heavier-duty components.

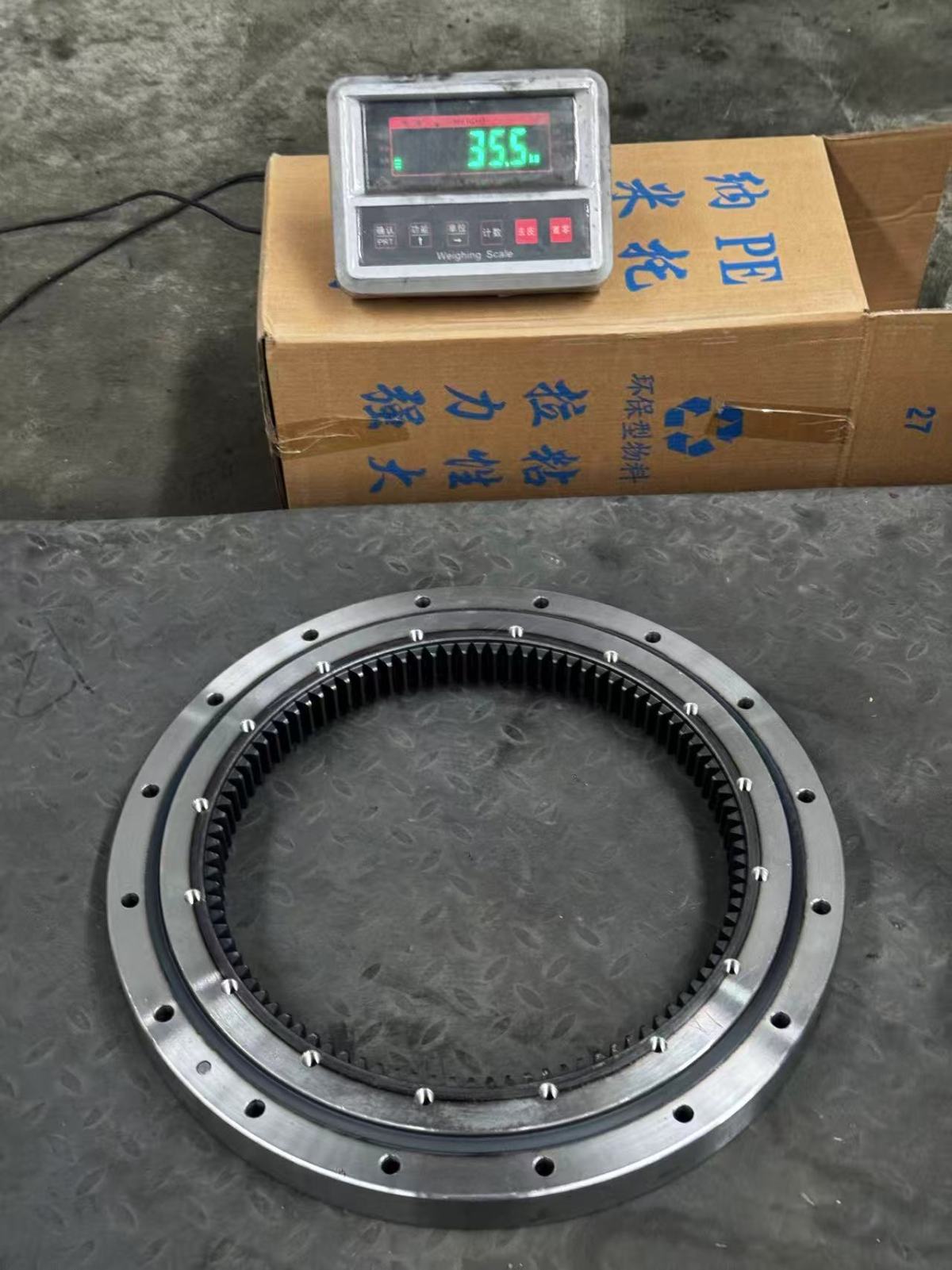

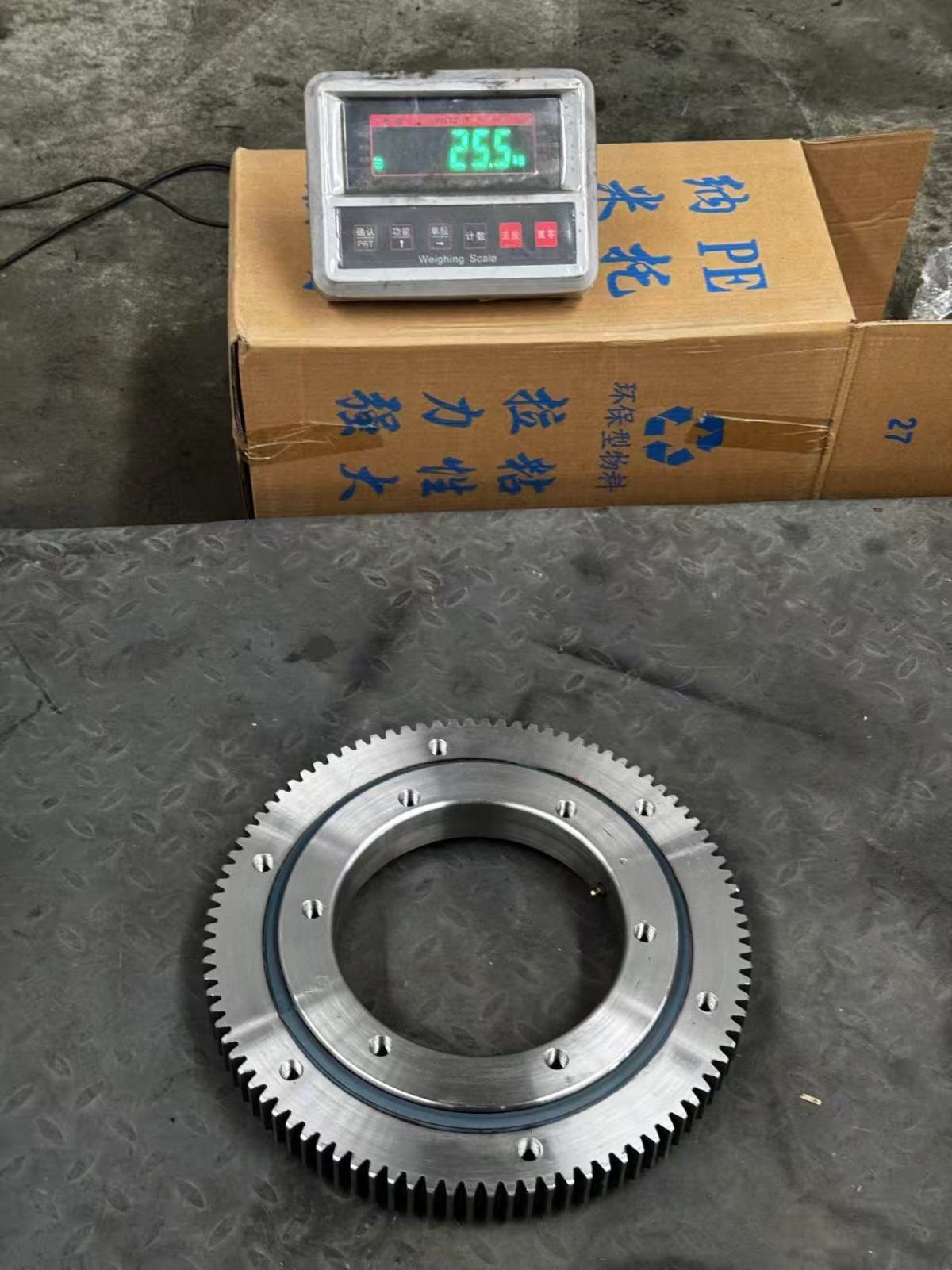

The internal gear bearing shown weighs approximately 35.5 kg, whereas the external gear counterpart weighs only 25.5 kg. This 10 kg difference represents thicker raceways, larger rolling elements, and more robust steel construction necessary to handle high impact loads. A lightweight bearing on a heavy machine is a recipe for premature failure.

Installation & Maintenance Tips

When replacing a slewing bearing, always verify the bolt hole pattern. Internal gear bearings often have bolt holes on both the inner and outer rings to secure them firmly to the chassis and the rotating platform. Additionally, check the sealing; high-quality internal gear bearings will feature robust labyrinth seals or rubber seals to prevent grease leakage and contaminant ingress, ensuring longevity in harsh environments.

By understanding these distinctions, you can avoid costly mistakes and ensure your heavy equipment operates safely and efficiently. Always prioritize the correct specification over generic replacements to maintain the integrity of your machinery.
