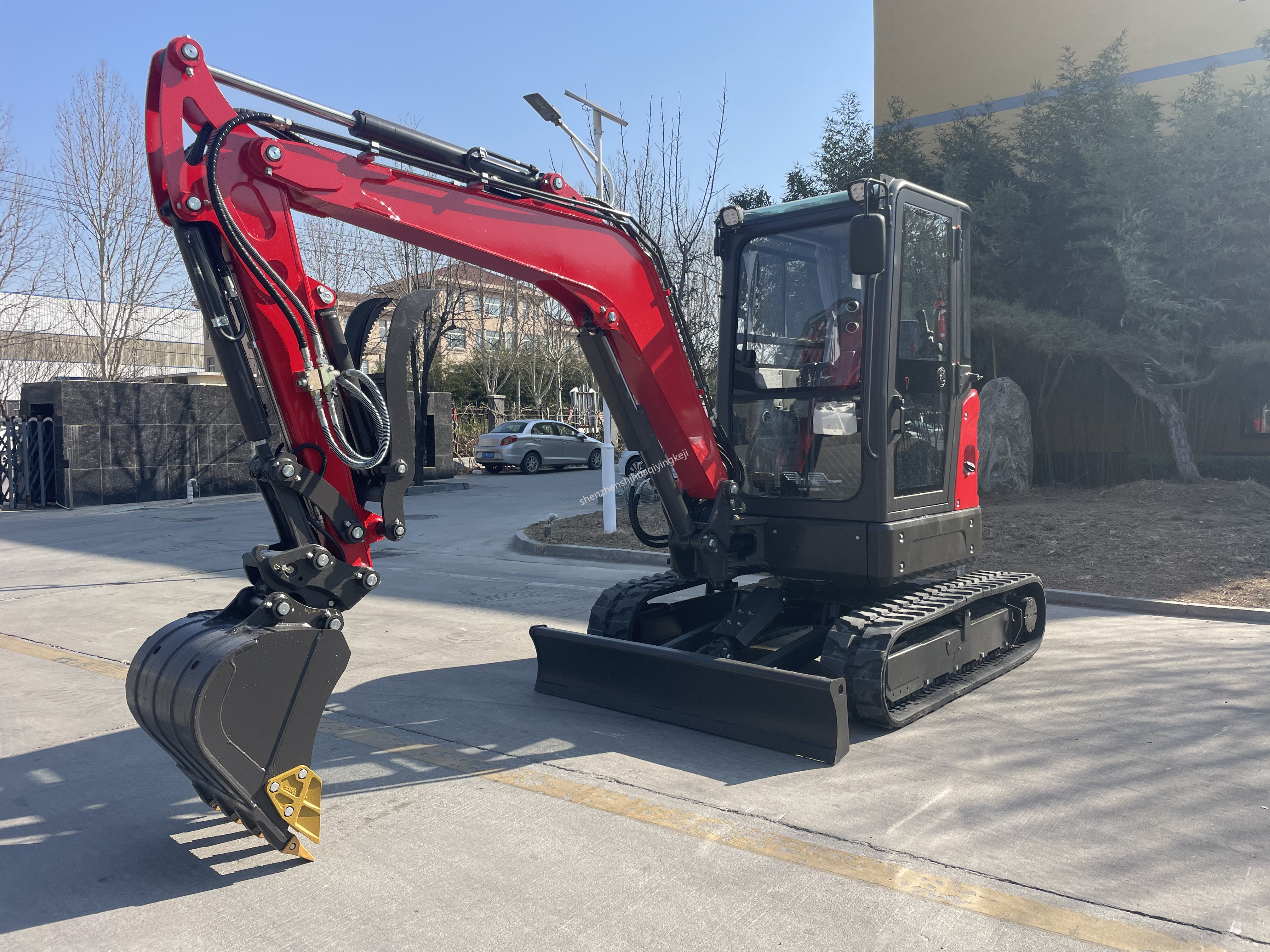

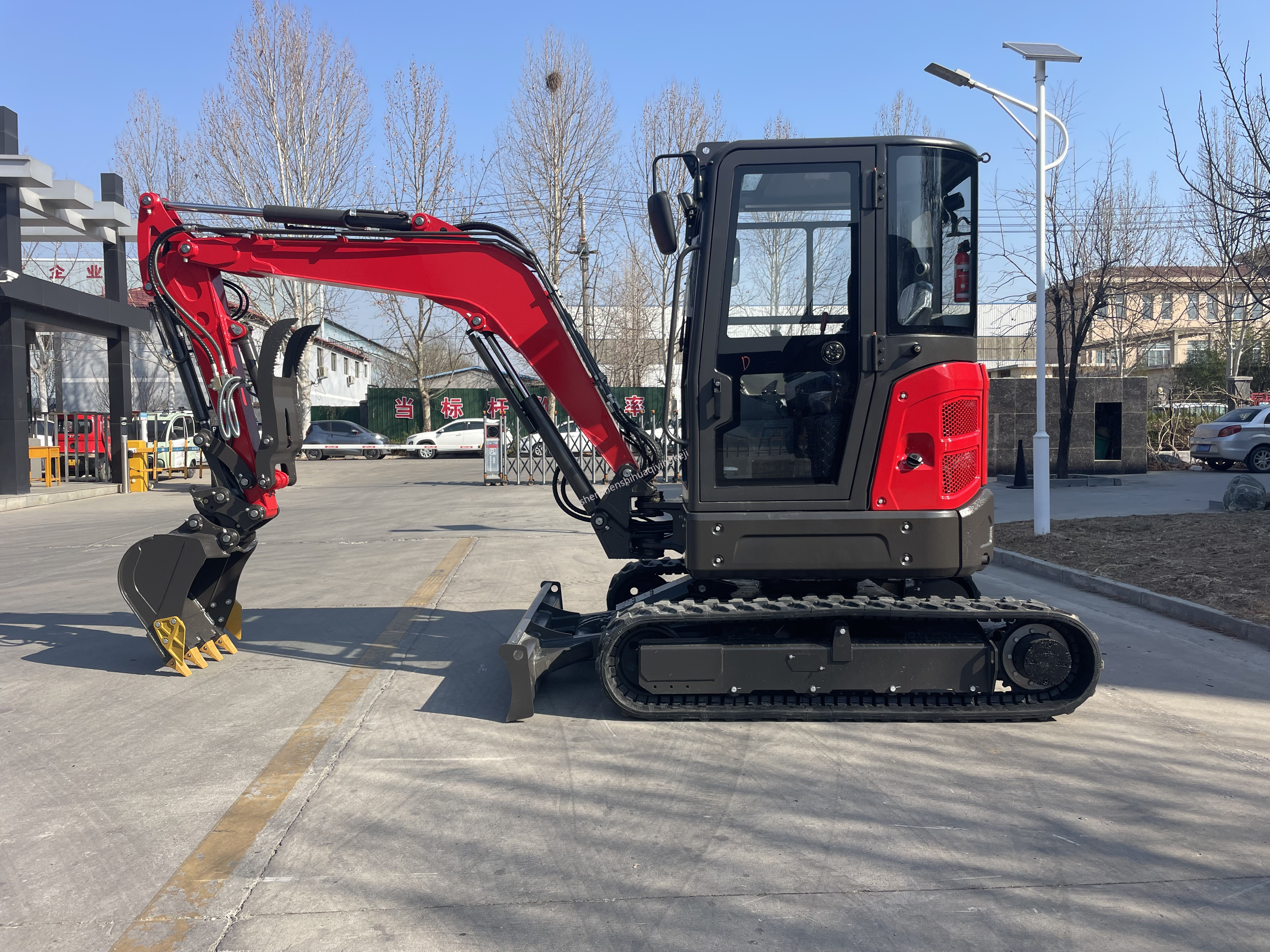

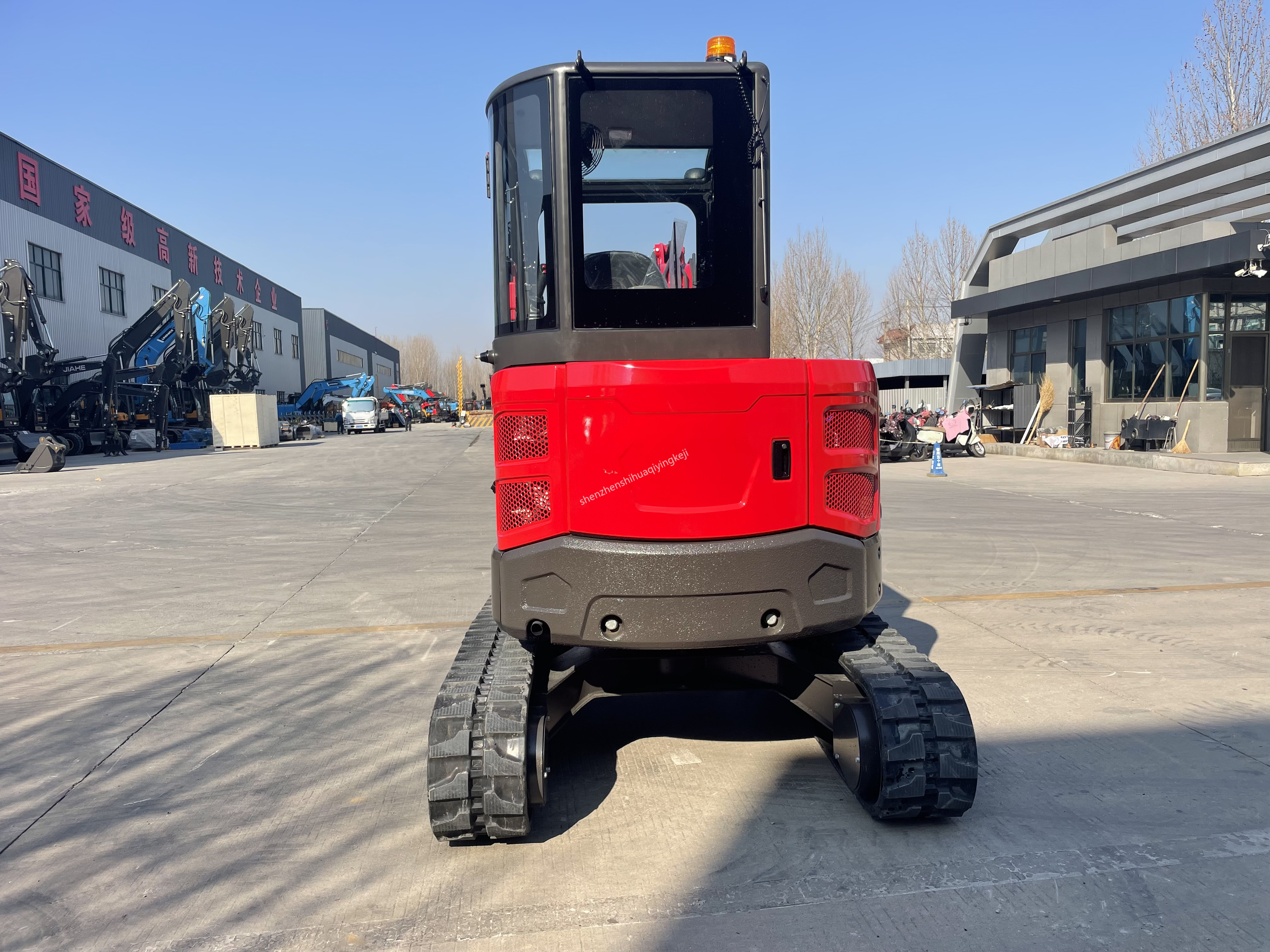

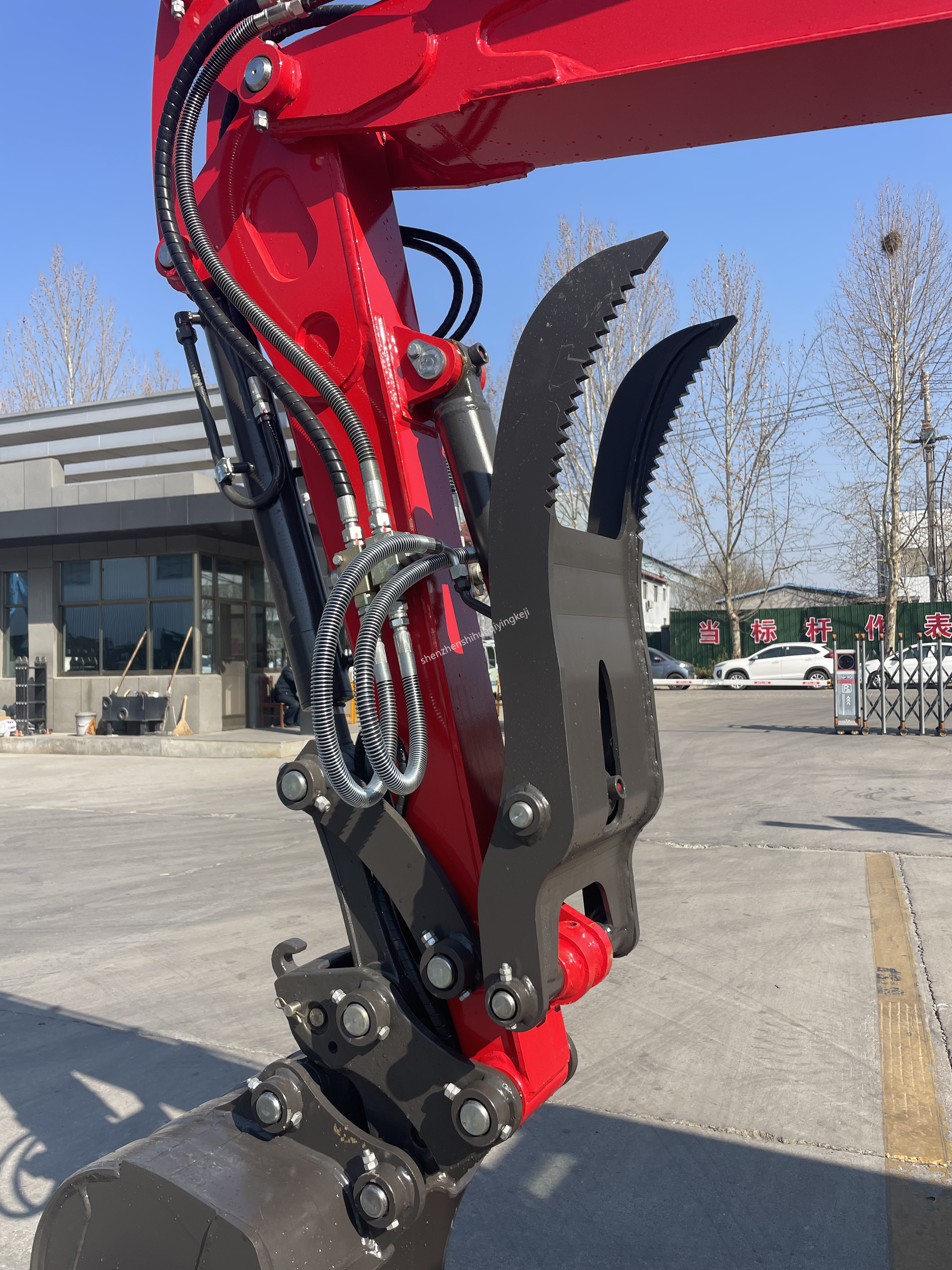

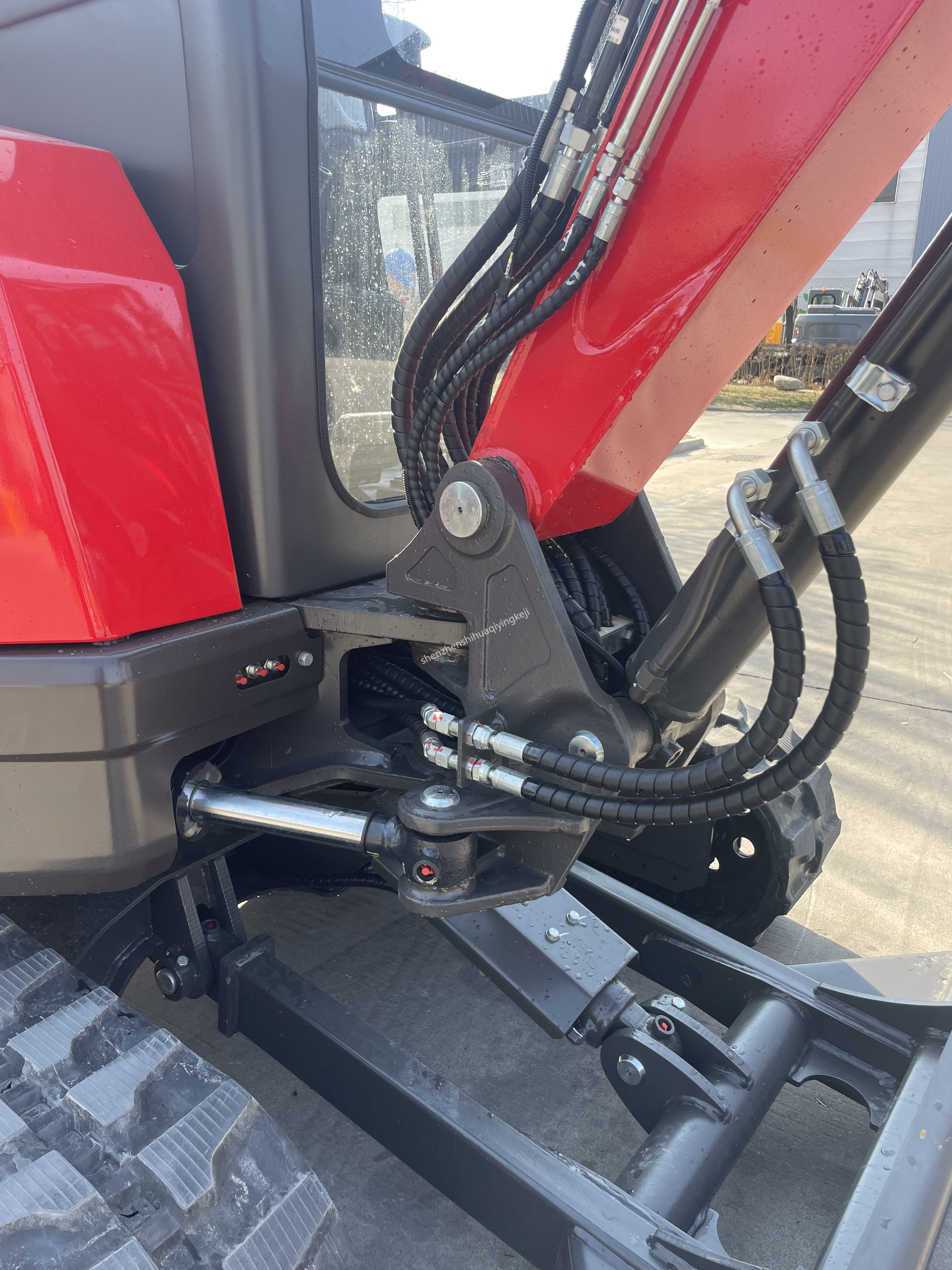

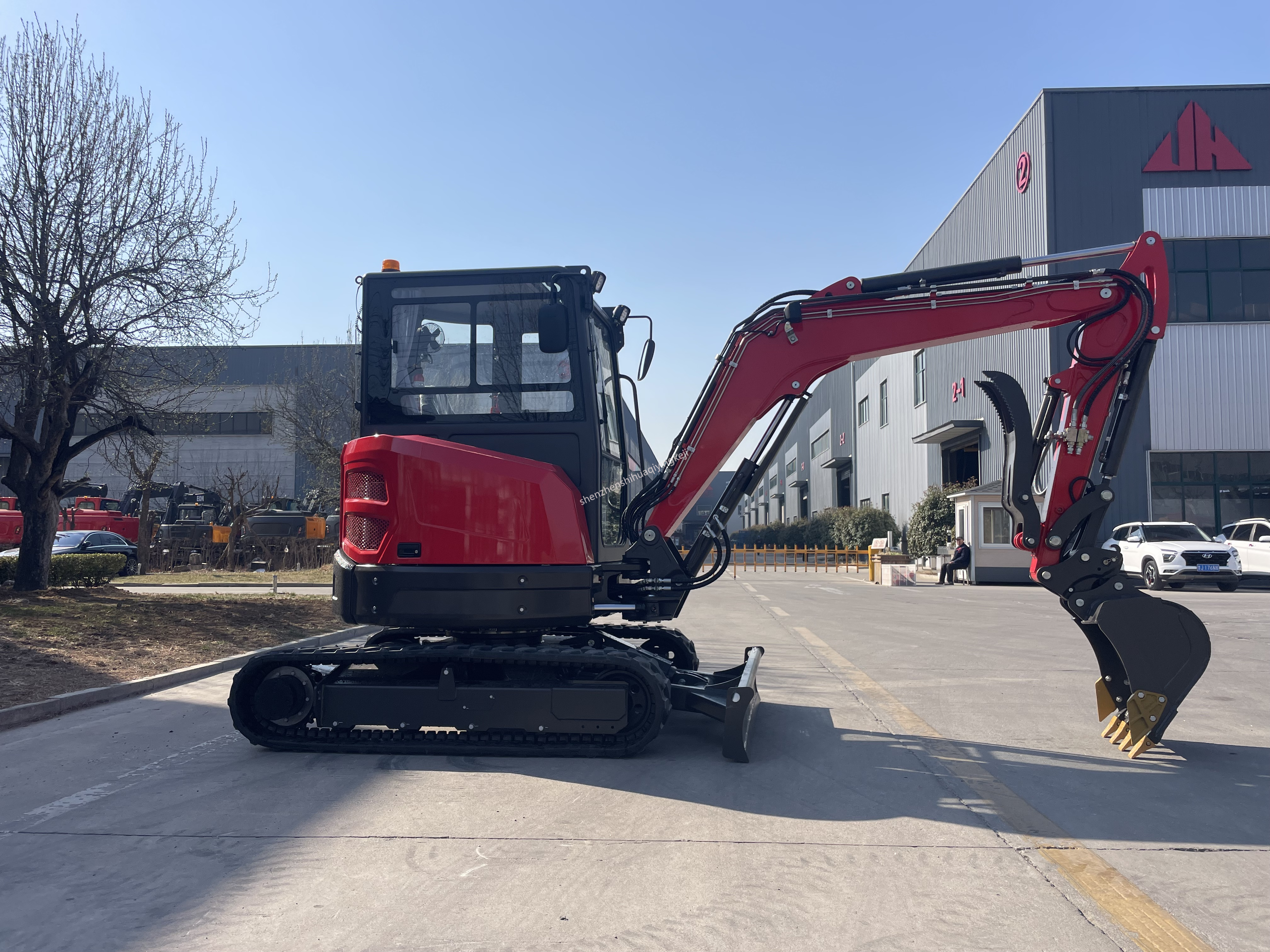

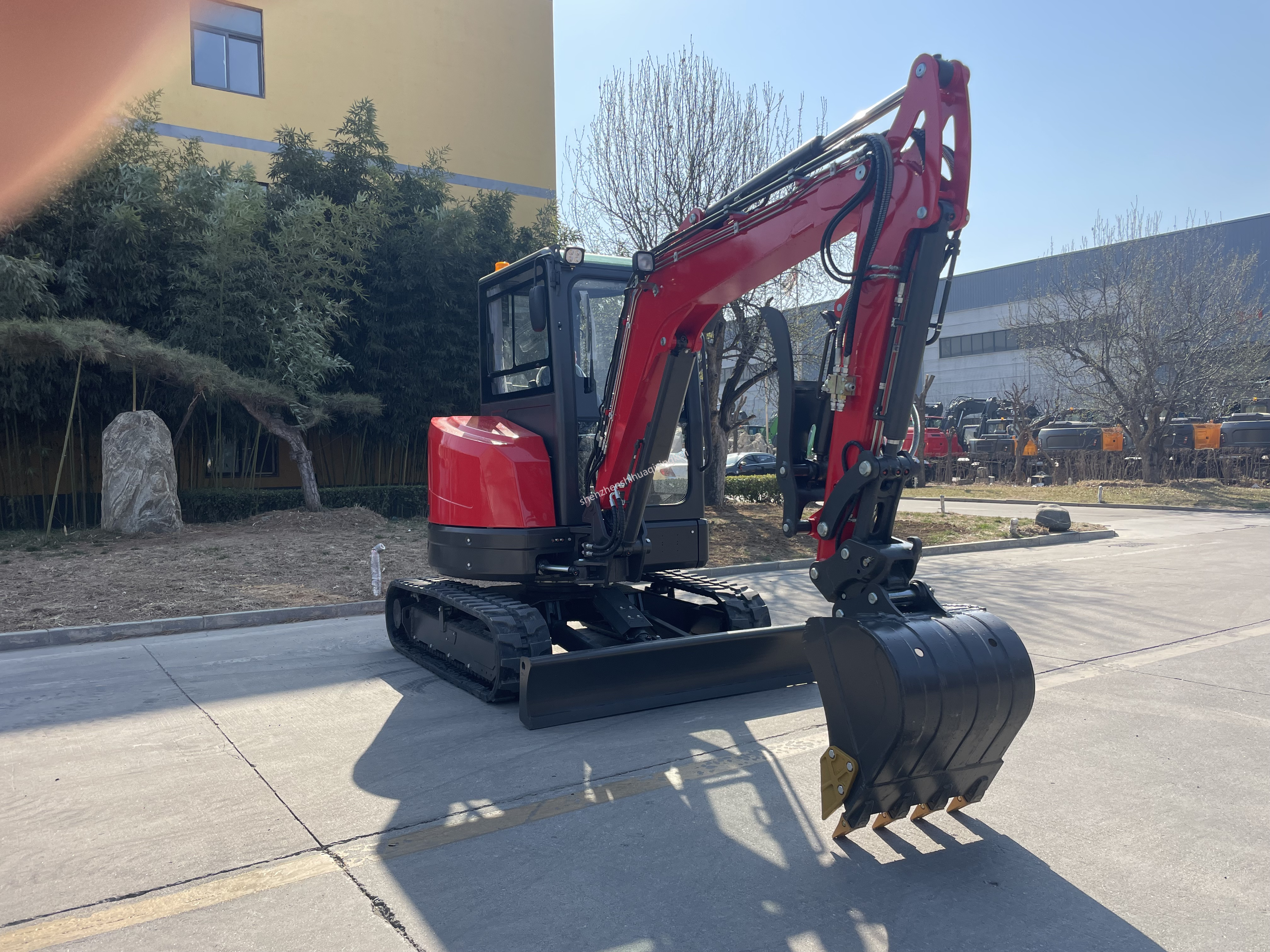

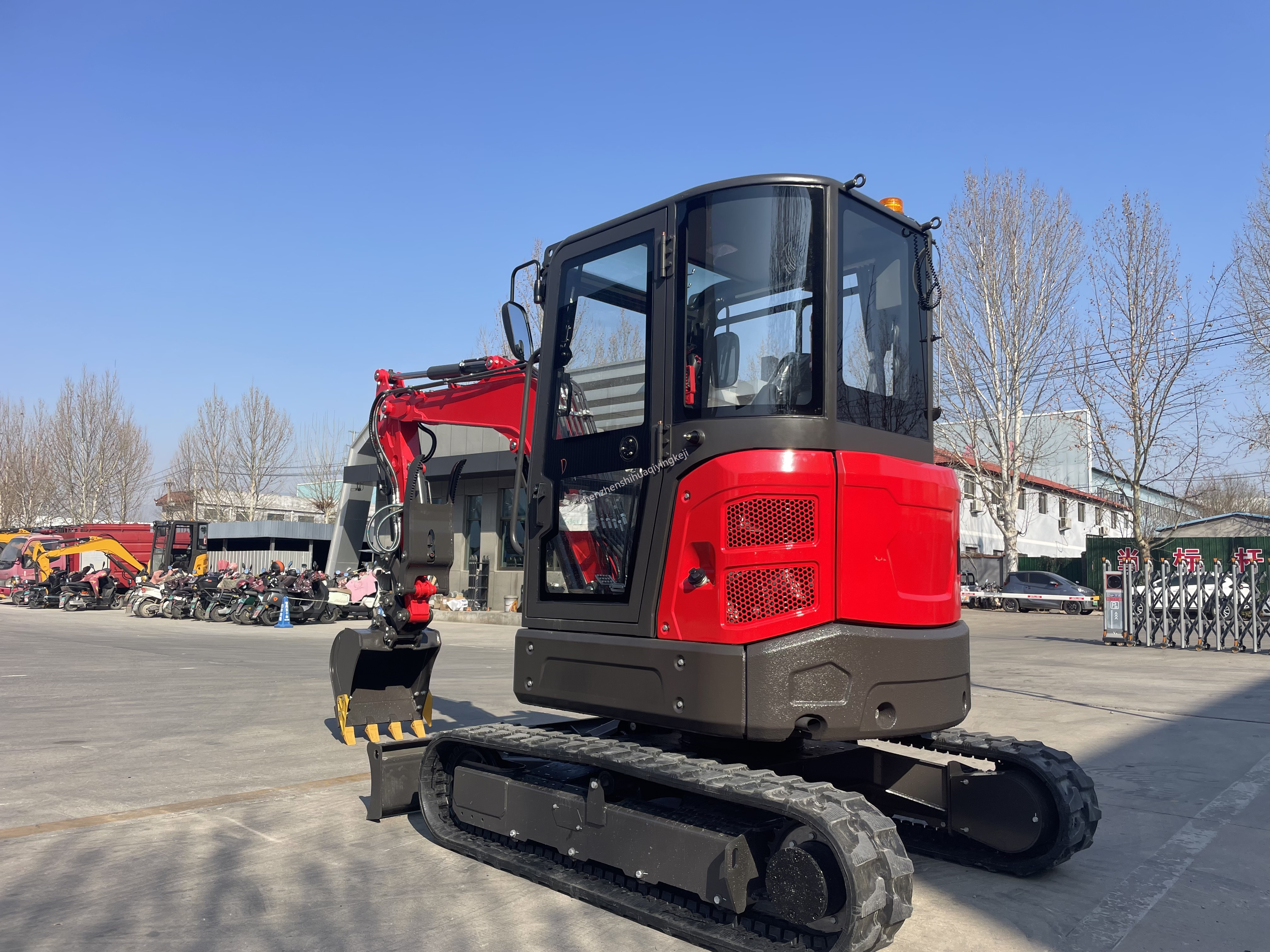

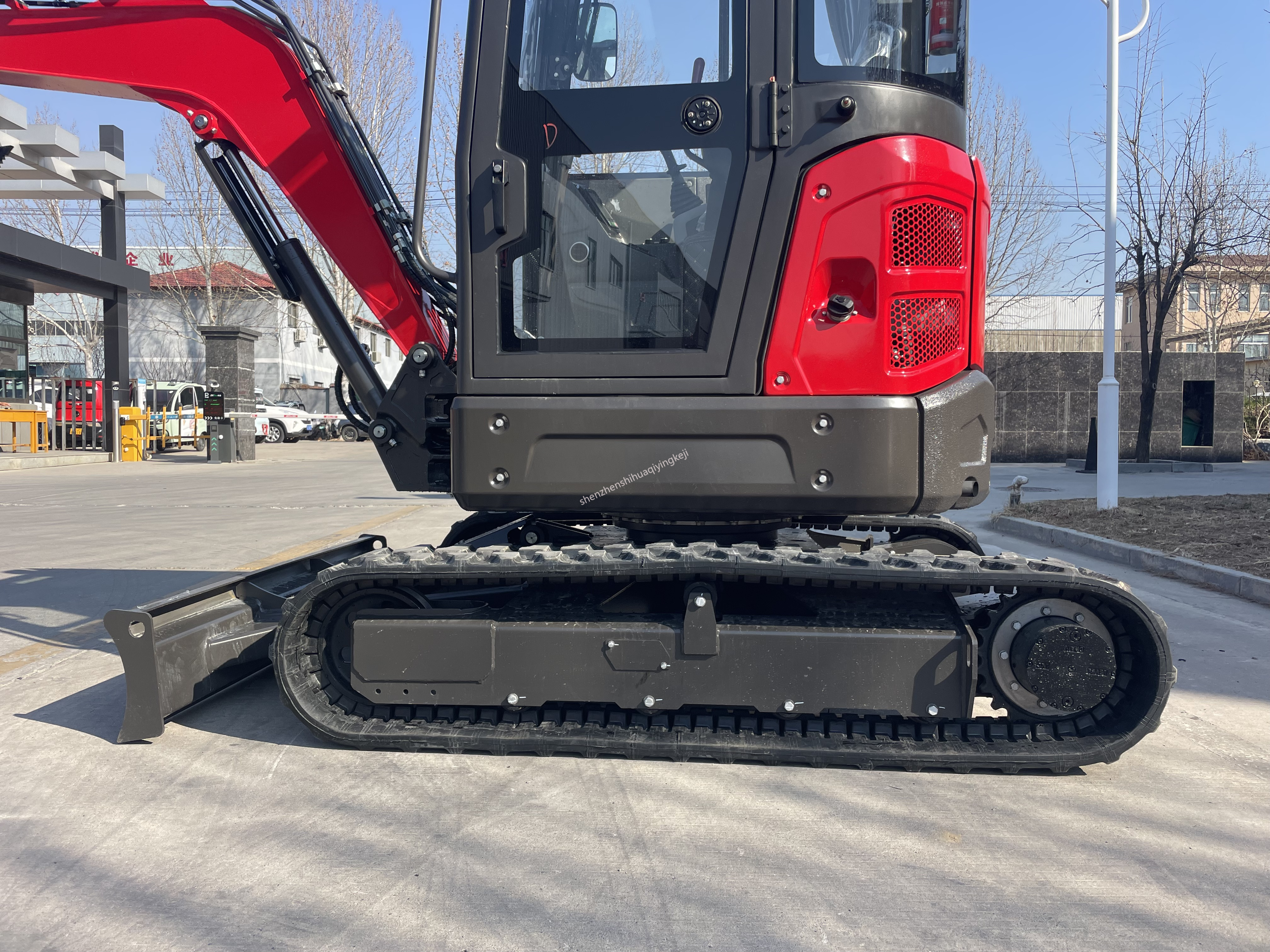

HQE35
Engine: Kubota D1703
Power: 18.2 kW
Bucket Capacity: 0.12 m³
Max. Digging Radius: 5480 mm
Max. Digging Depth: 3208 mm
Max. Digging Height: 4800 mm
Max. Dumping Height: 3406 mm
Inquiry Now

HQE35-Specifications
挖斗容量(m³)Bucket Capacity0.12
回转速度(rmp)Swing Speed1-11
最大爬坡角度(°)Gradeablity30
挖斗最大挖掘力(KN)Max.Bucket Digging Force30
斗杆最大挖掘力(KN)Max.Arm Digging Force18
发动机型号Engine ModelKUBOTAD1703
功率/转速(KW/rmp)Power/revolution speed18.2/2200
轮胎型号Tire Model一
系统压力(MPa)System Pressure22.5
作业范围Working range
最大挖掘高度(mm)Max.Digging Height4800
最大卸载高度(mm)Max.Dumping Height3406
最大挖掘深度(mm)Max.Digging Depth3208
最大垂直挖深(mm)Max.Vertical Digging Depth2957
最大挖掘半径(mm)Max.Digging Radius5480
最小回转半径(mm)Min.Swing Radius2530
推土铲最大离地间隙(mm)Max.Dozer Blade Lifting Distance365
推土板沉下最大深度(mm)Max.Dozer Blade Cutting Distance385
整机尺寸 Machine size
总长(运输时)(mm)Total Length4915
总宽(运输/作业)(mm)Total Width1720
总高(运输时)(mm)Total Height2525
驾驶室高(mm)Cabin Height2290
轴距(mm)Axle Base1670
轮(轨)距(mm)Wheel(track)Distance1420
最小离地间隙(mm)Minimum ground clearance295
尾部回转半径(mm)Tail Swing Radius870
