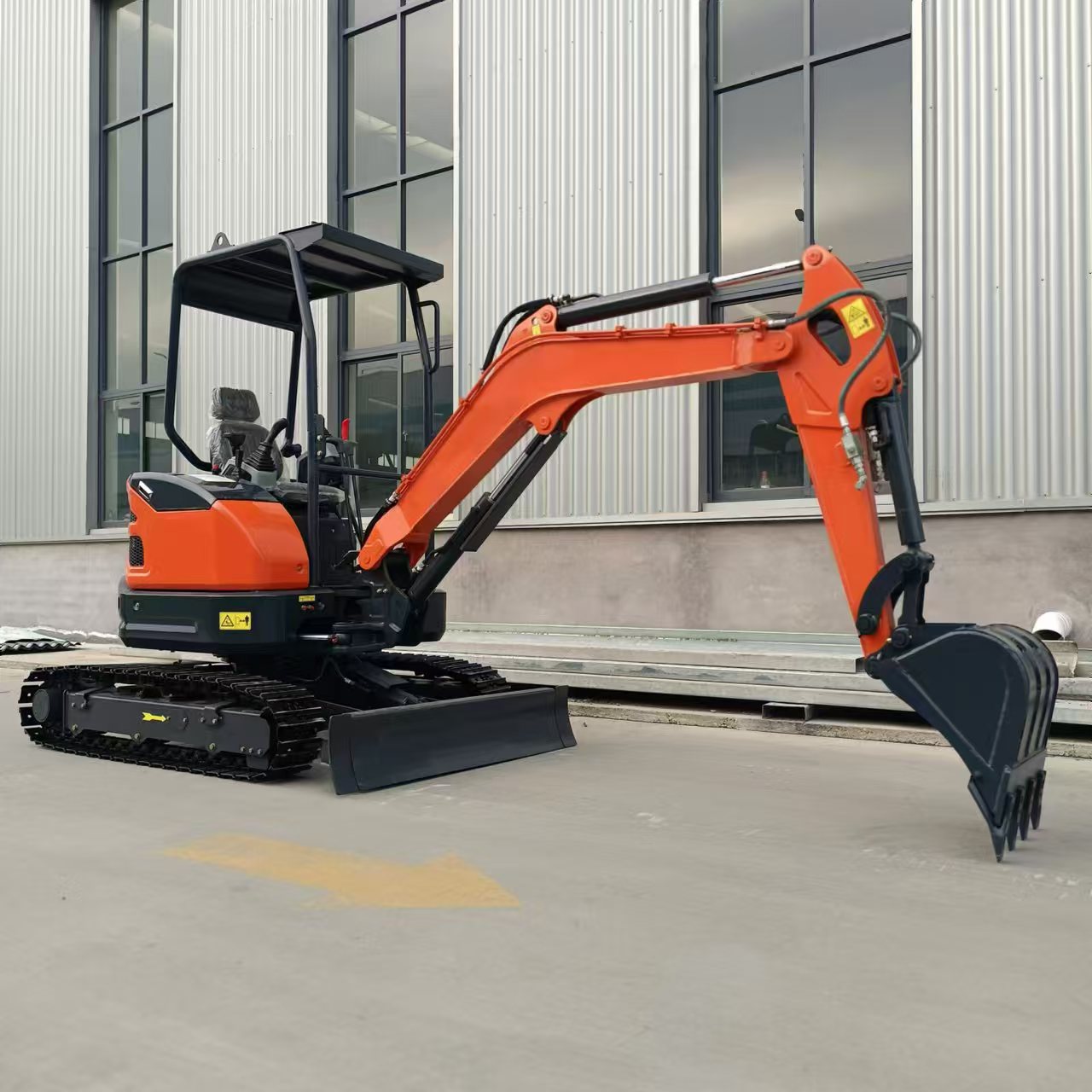

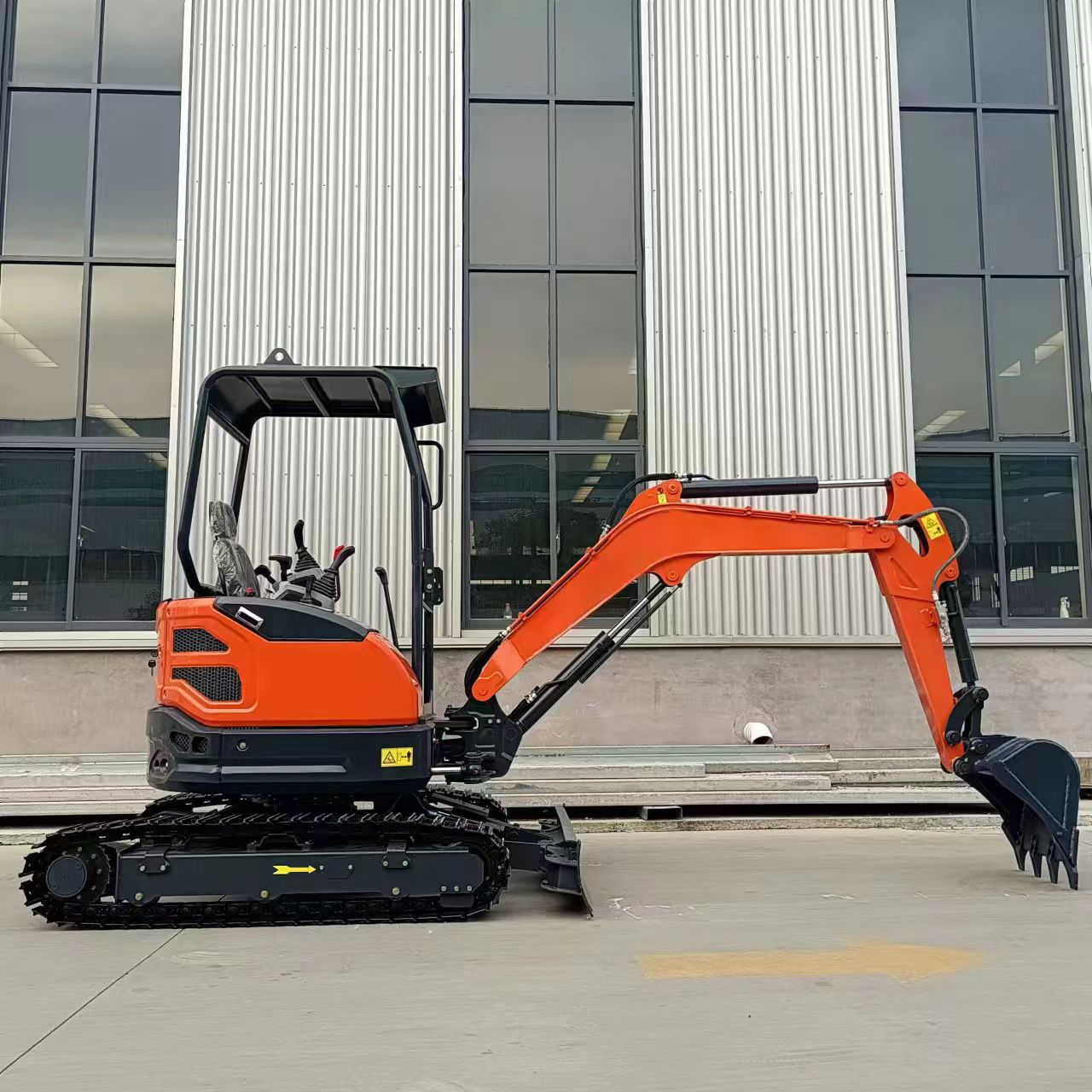

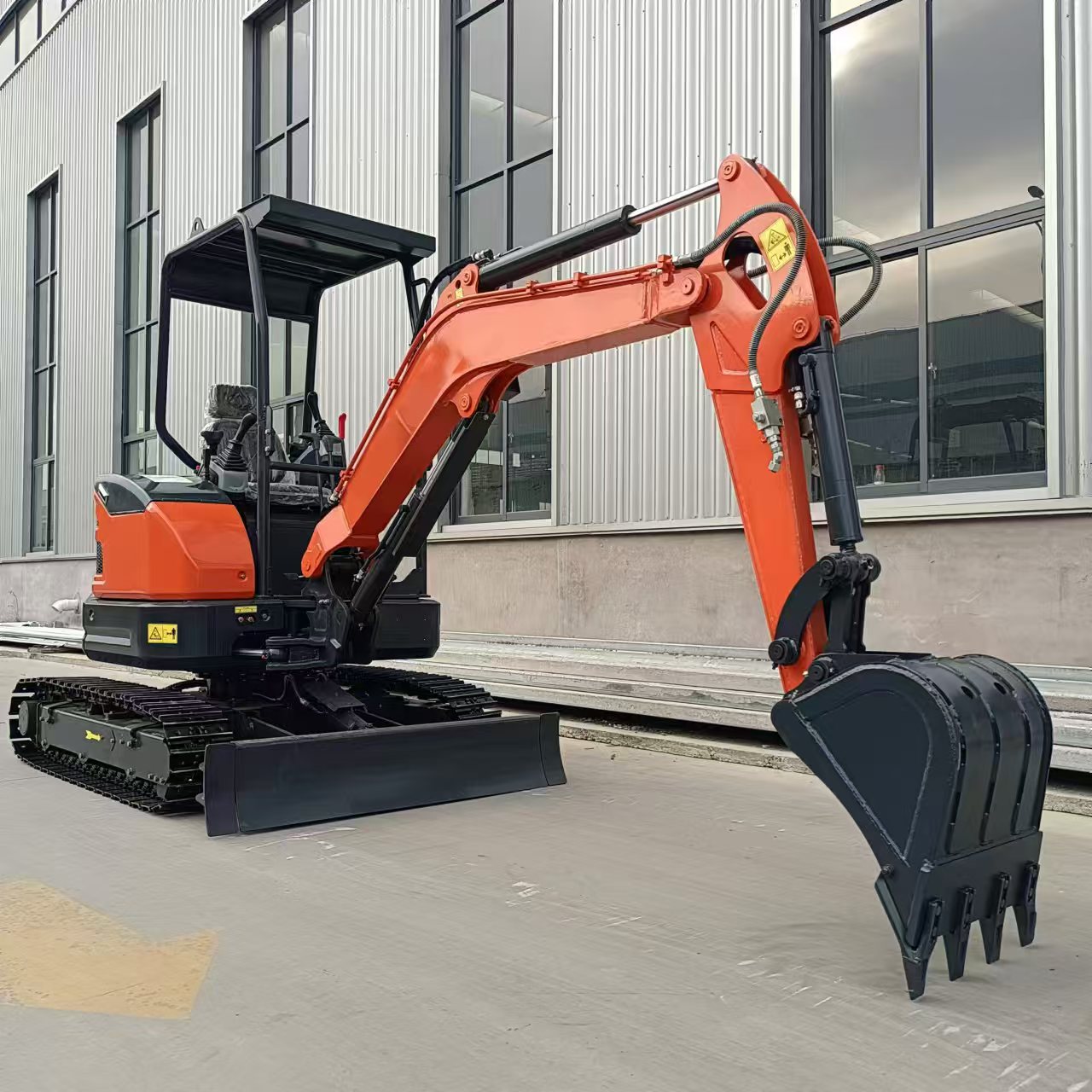

HQE-25F
Standard configuration:
Yanmar engine meets EPA emission standards
Meets Euro 5 emission standards

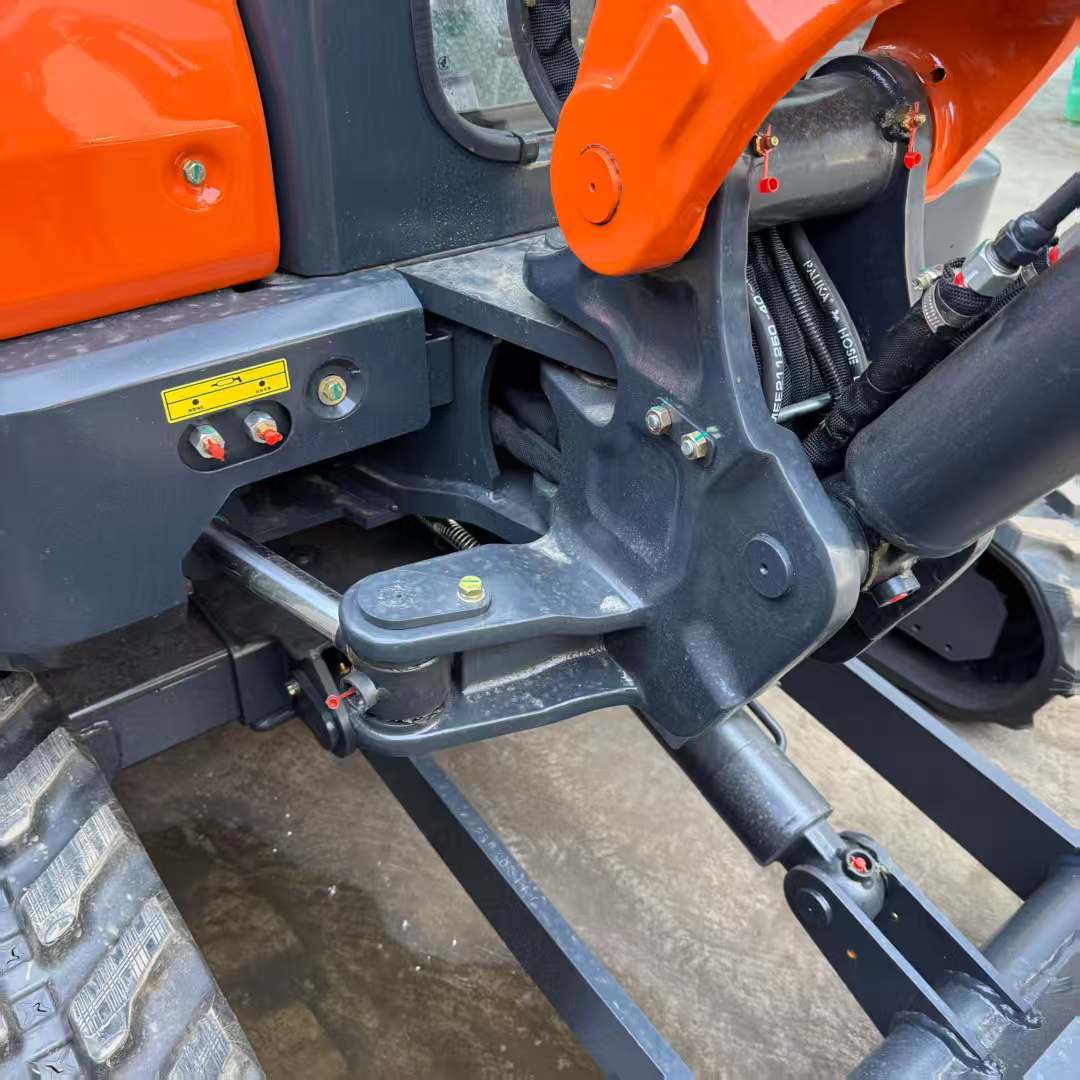

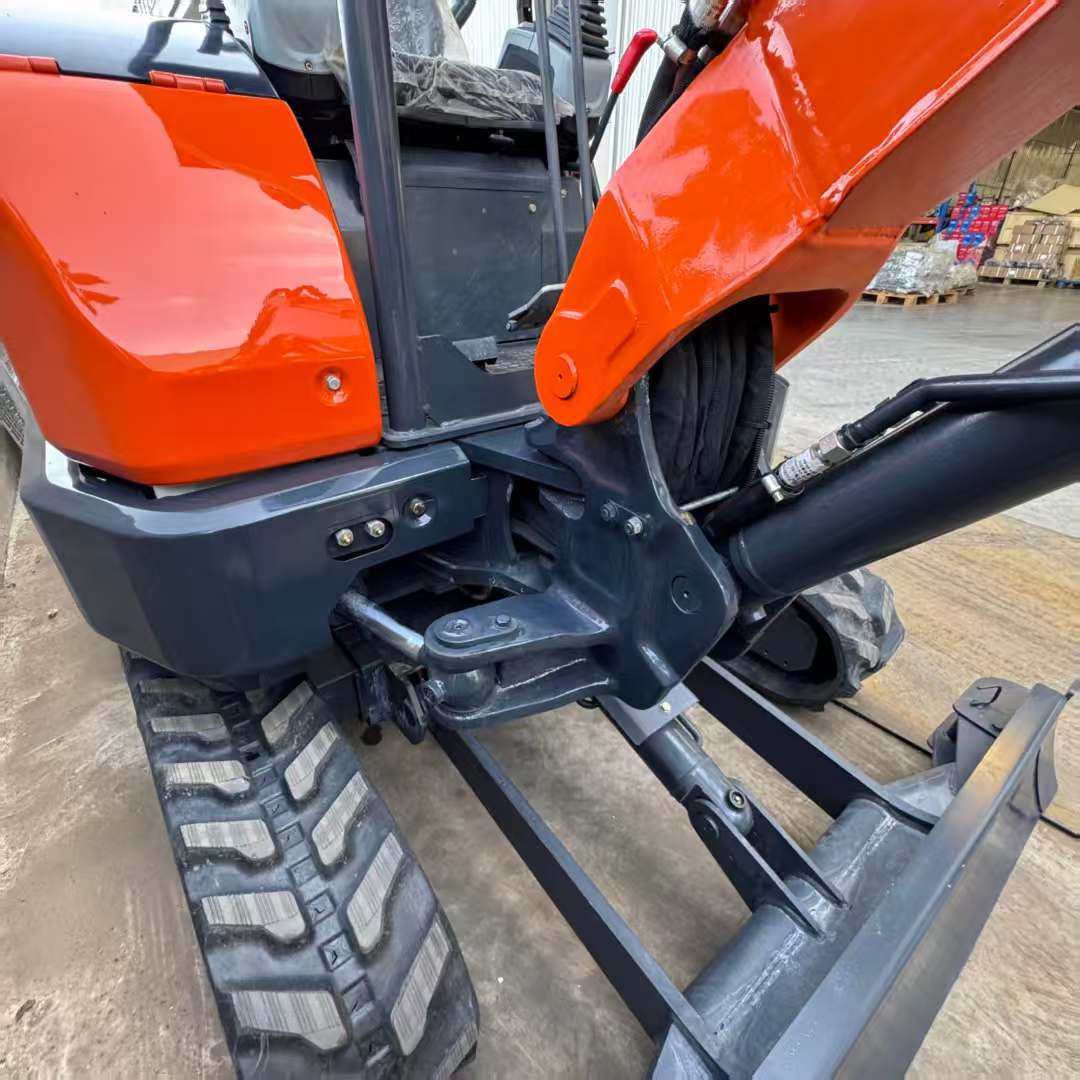

Boom side swing

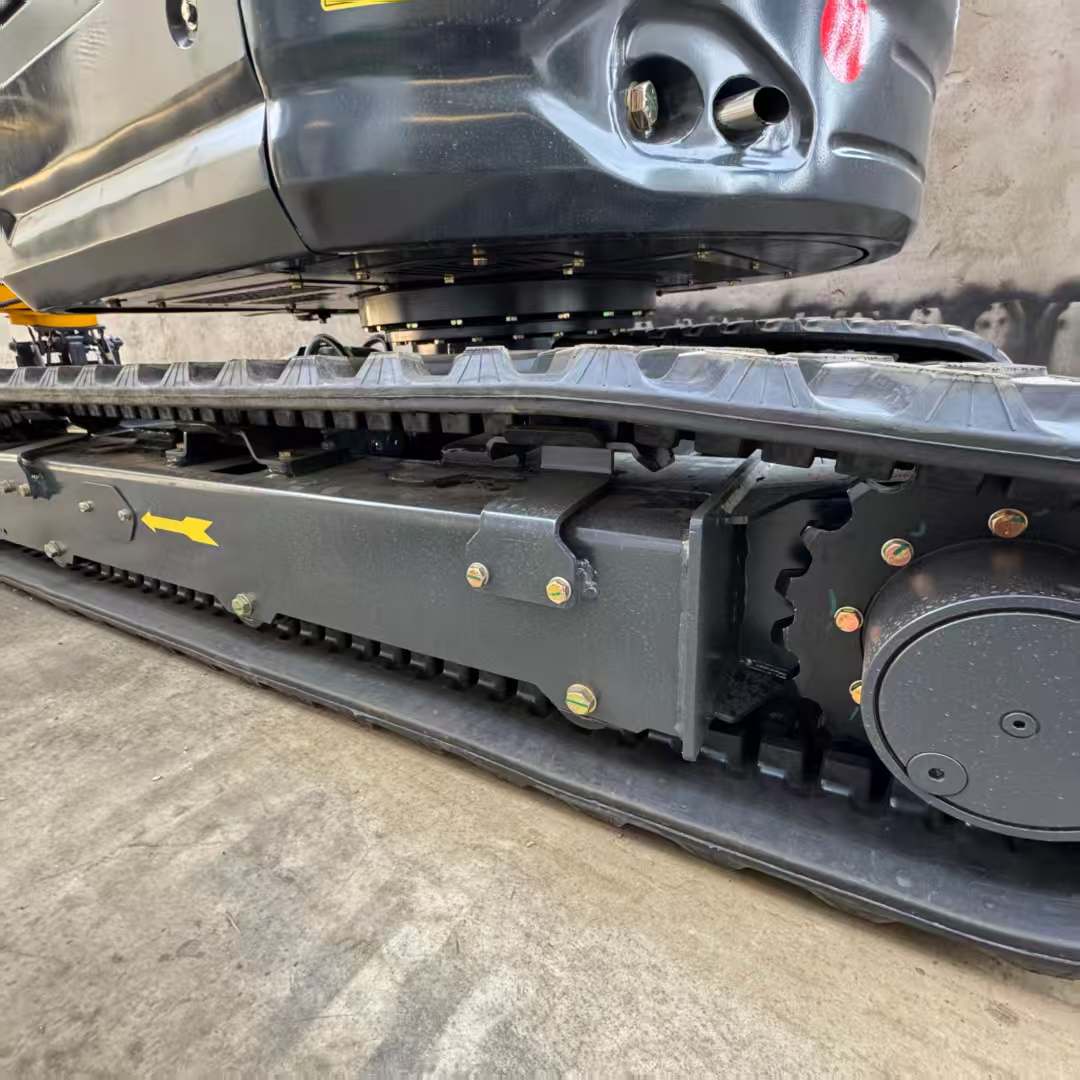

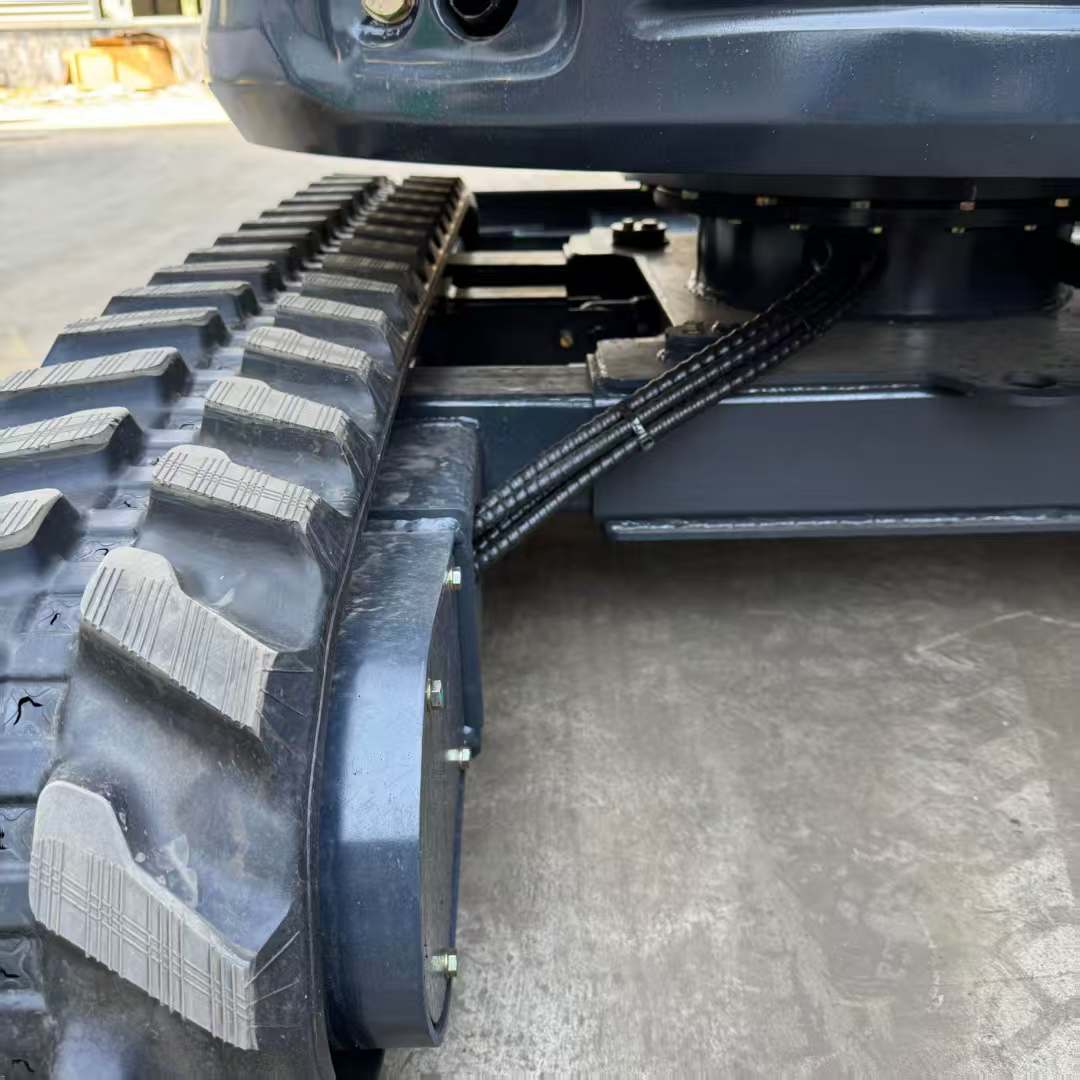

Track retractable
Inquiry Now

HQE-25F
Machine weight (Kg)2500
Rated bucket capacity (m³)0.068
Engine brandYanmar
Engine model3TNV80F
Rated power (kw)15.2
Rated displacement (ml)1267
Rated speed (r/min)2500
Climbing angle °57
Slewing speed (r/min)9.5
Travel speed (km/h)2-3.8

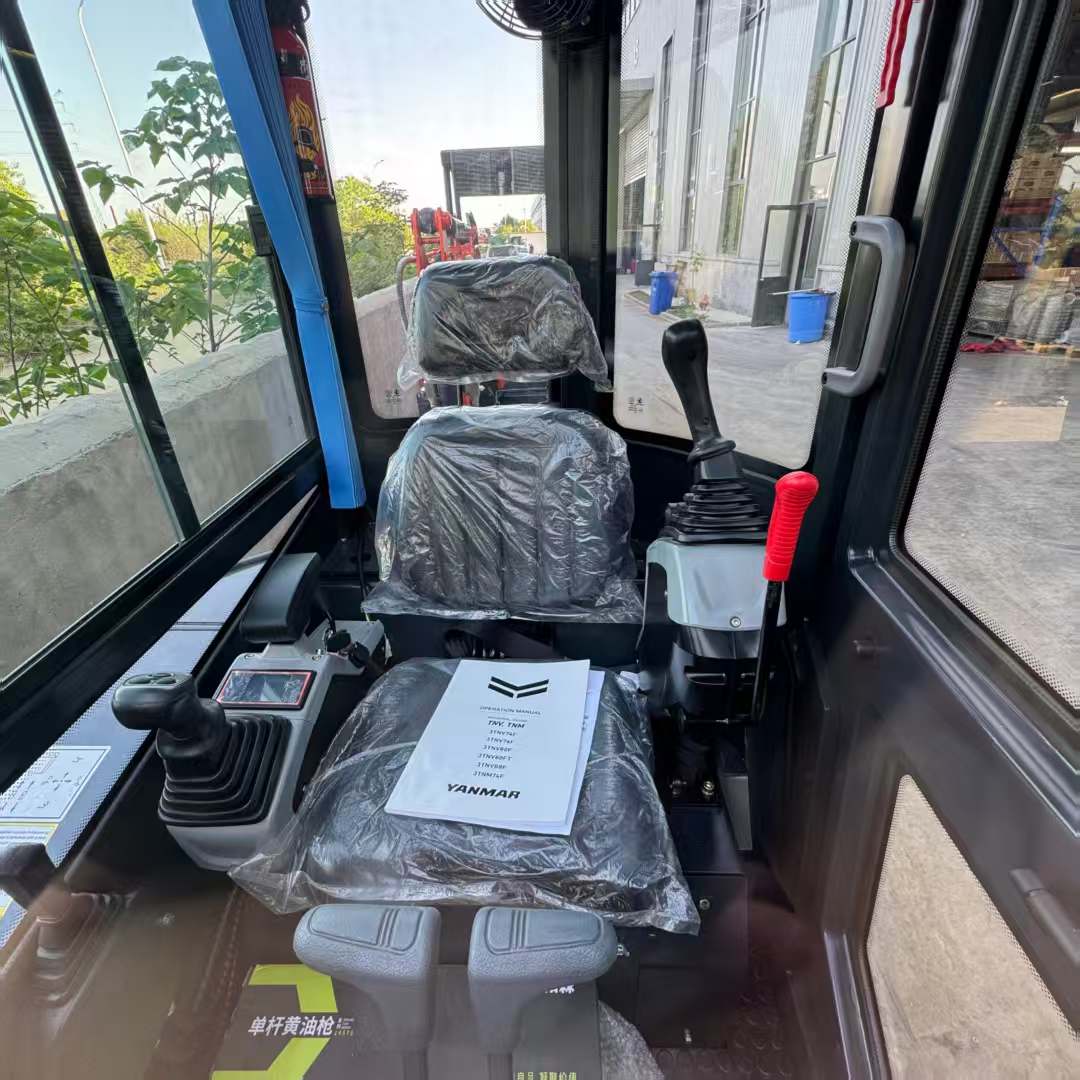

Steering controlPedal control
Drive modeHydraulic drive
Travel motor typePiston hydraulic motor
Service brakeHydraulic brake
Parking brakeHydraulic brake
Fuel tank capacity (L)20
Hydraulic oil tank capacity (L)18
Bucket digging force (KN)20
Transport length (mm)4100
Transport width (mm)1500
Transport height (mm)2440
Slewing radius (mm)700
Track gauge (mm)1070/1270
Maximum digging radius (mm)4520
Maximum digging depth (mm)2410
Maximum digging height (mm)4190
Maximum unloading height (mm)2880
Turntable ground clearance (mm)490
