Electric forklift- HQ-20

model：HQ-20

Inquiry Now

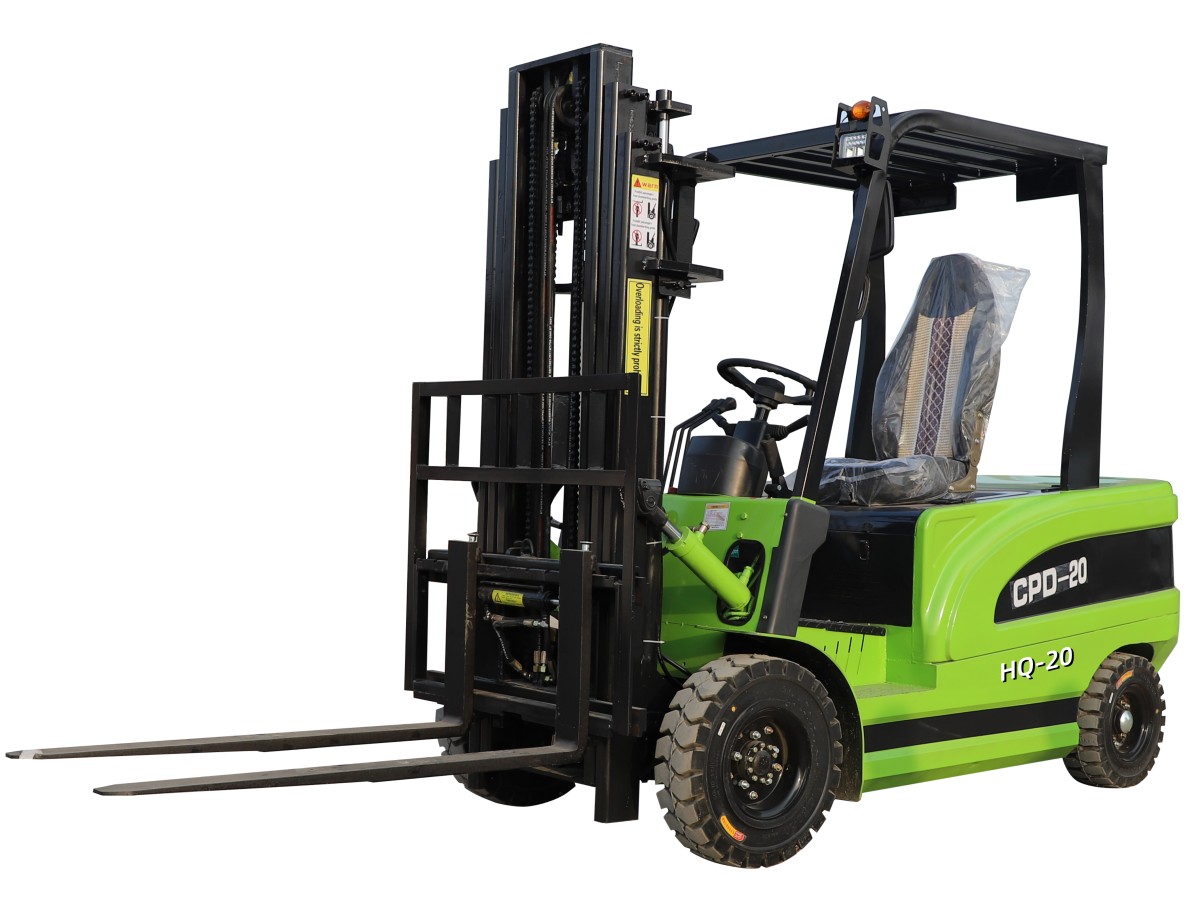

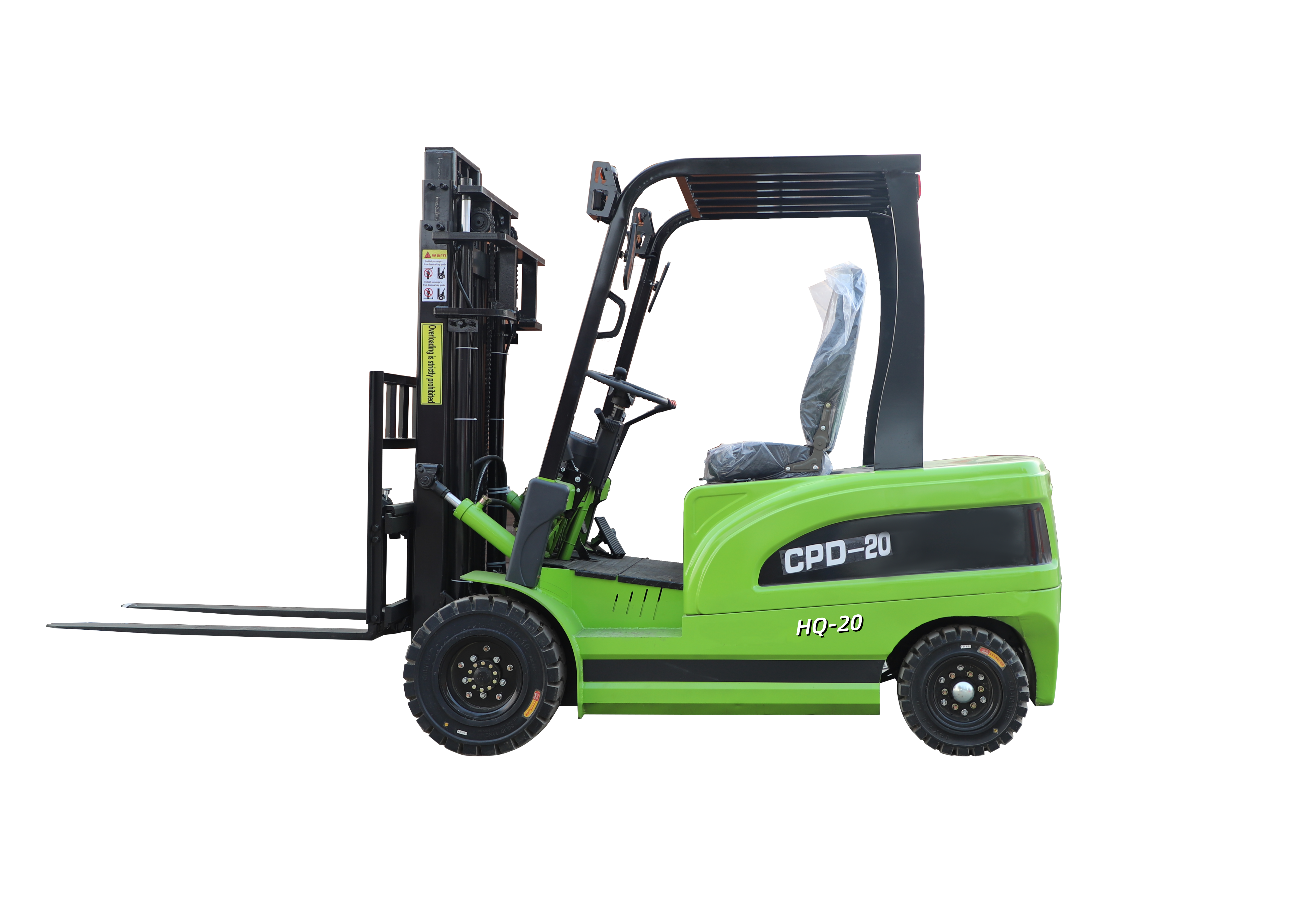

Electric forklift HQ-20

2T Electric Forklift Configuration Table
Parameters
Maximum lifting weight	2000kg
Length	2500mm without fork
Length	3720mm with fork
Width	1200mm
Height	2150mm
Vehicle deadweight	2700kg
Lifting height	3000mm
Body material	Q355B thickened integrated stamped body
Electrical System
Travel motor	Pu Yixi 5kw brushless AC motor/Wuxi Leier
Voltage	60v
Controller	Fuzhou Xinlianda/Shanghai Yuanshen
Battery	5 lead-acid Chaowei batteries

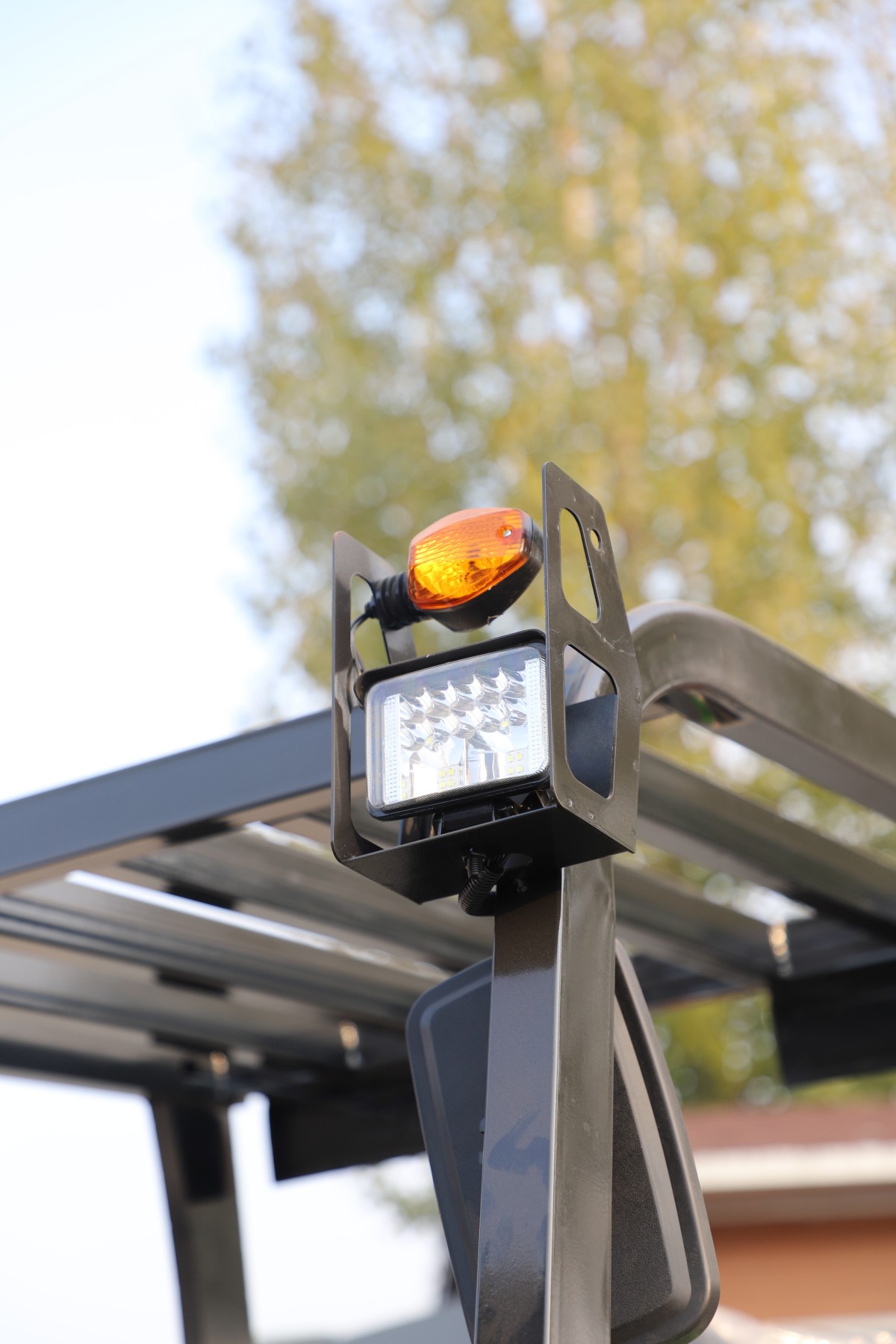

Lights and signals	Lighting, left and right turn signals, brake lights, driving lights, instruments, electric horns, etc.
Chassis system
Drive axle	Fully suspended cast steel integrated 220 bridge

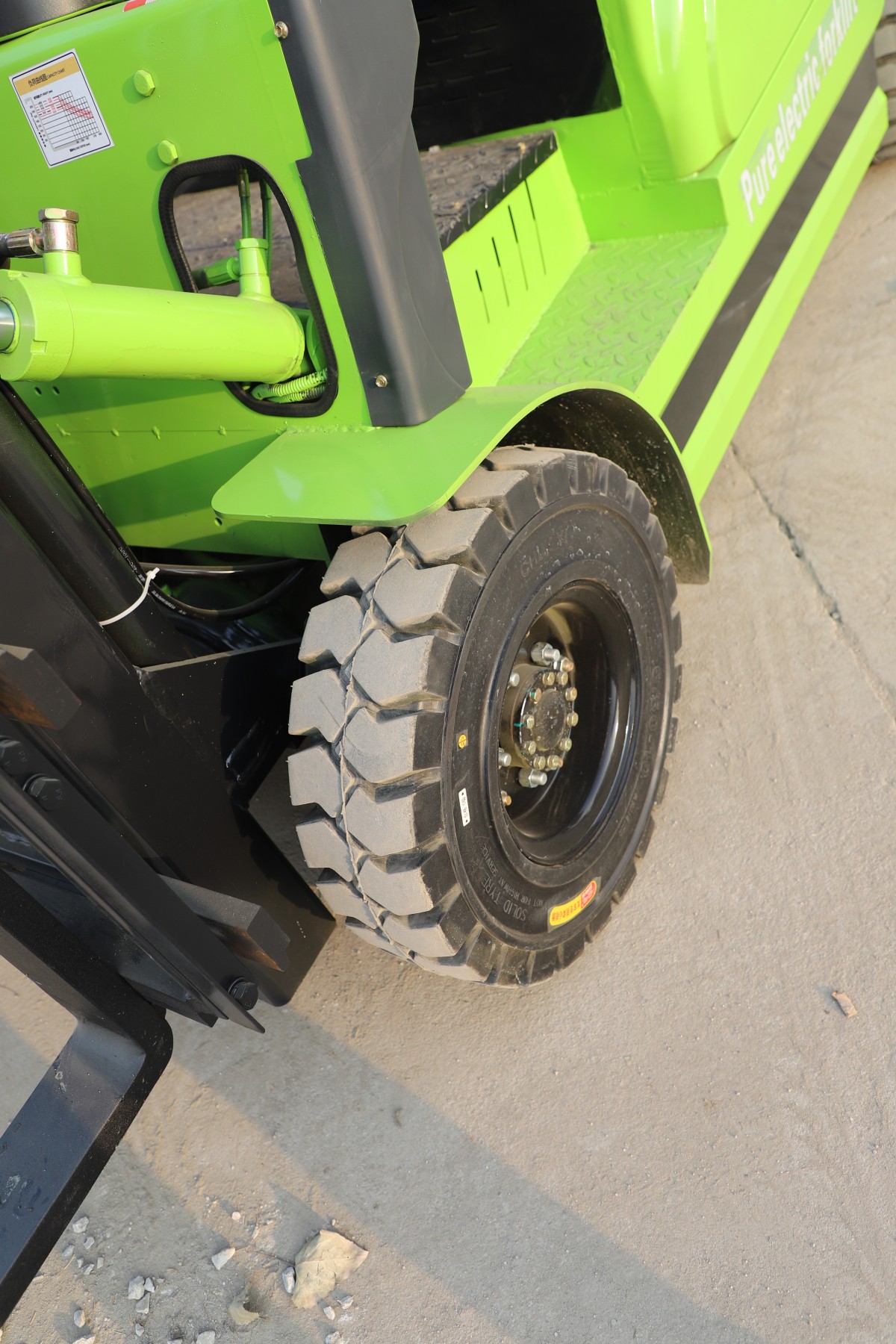

Tire	Front wheel 650-10 (high wear-resistant solid tire), rear wheel 500-8 (high wear-resistant solid tire)
Steering axle	Special rear axle for heavy-duty steel plate forklift
Braking method	Hand brake, oil brake
Lifting cylinder	High precision machining, aviation grinding sleeve, one-way double cylinder
Fork length	1220 integrated forged fork
Hydraulic lifting motor	Pu Yixi 5kw brushless AC oil pump motor
Gantry material	20MnSiv 120mm steel mast

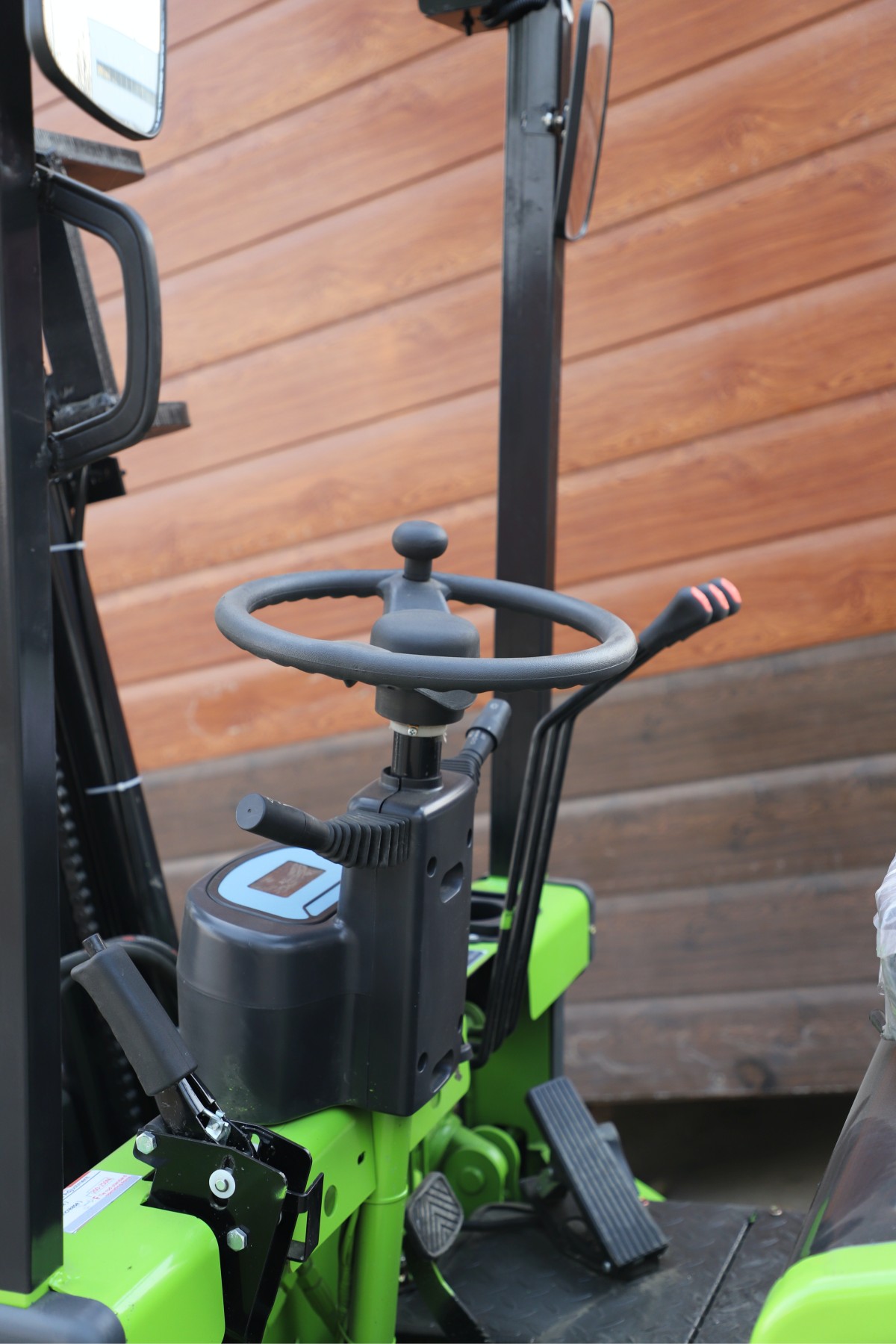

Steering method	Hydraulic power steering
Turning radius	2000mm
Charging time	6-8 hours
Continuous working time	About 5 hours
Climbing angle	12 degrees
Charging voltage	220V
Vehicle accessories	Vehicle tools/fire extinguisher
Note	Customizable body size/lifting height/and other configurations
