• Operating Weight: 2500 kg (5511 lbs)
• Engine: Yanmar 3TNV88F (Standard) / Kubota D1105 (Optional)
• Hydraulic Pump: Taifeng Variable Piston Pump
• Flow Rate: 67.2 L/min (High Speed)
• Digging Force: 20 kN (Bucket)

Engine Performance: Featuring the Yanmar 4TNV98CT, it provides high torque at low RPMs, ensuring fuel efficiency without sacrificing digging power.
• Elite Hydraulics: The 32MPa main pressure combined with an 180L/min rated control valve (Inline HVSE-18) ensures smooth multi-function movements—no more "jerky" controls under load.
• Heavy-Duty Chassis: The 8200kg operating weight and Eddie FTM10VC travel motors provide superior stability and traction on steep or muddy terrains.

Maximum excavation height: 2800 mm（111 in）
Maximum unloading height: 1850 mm（73 in）
Maximum excavation depth: 2100 mm（83 in）
1. Pull up the upper arm
2. Arm side swing
3. Broken pipelines and shut-off valves
4. Load sensitive valve, hydraulic pilot operation
5. 230 * 72 * 45 section extended rubber track
6. 4-Leg Ceiling
7. Increase bucket capacity
8. Standard high-end hidden plunger high and low speed motor
9. The boom oil cylinder is equipped with buffering, making recovery more stable

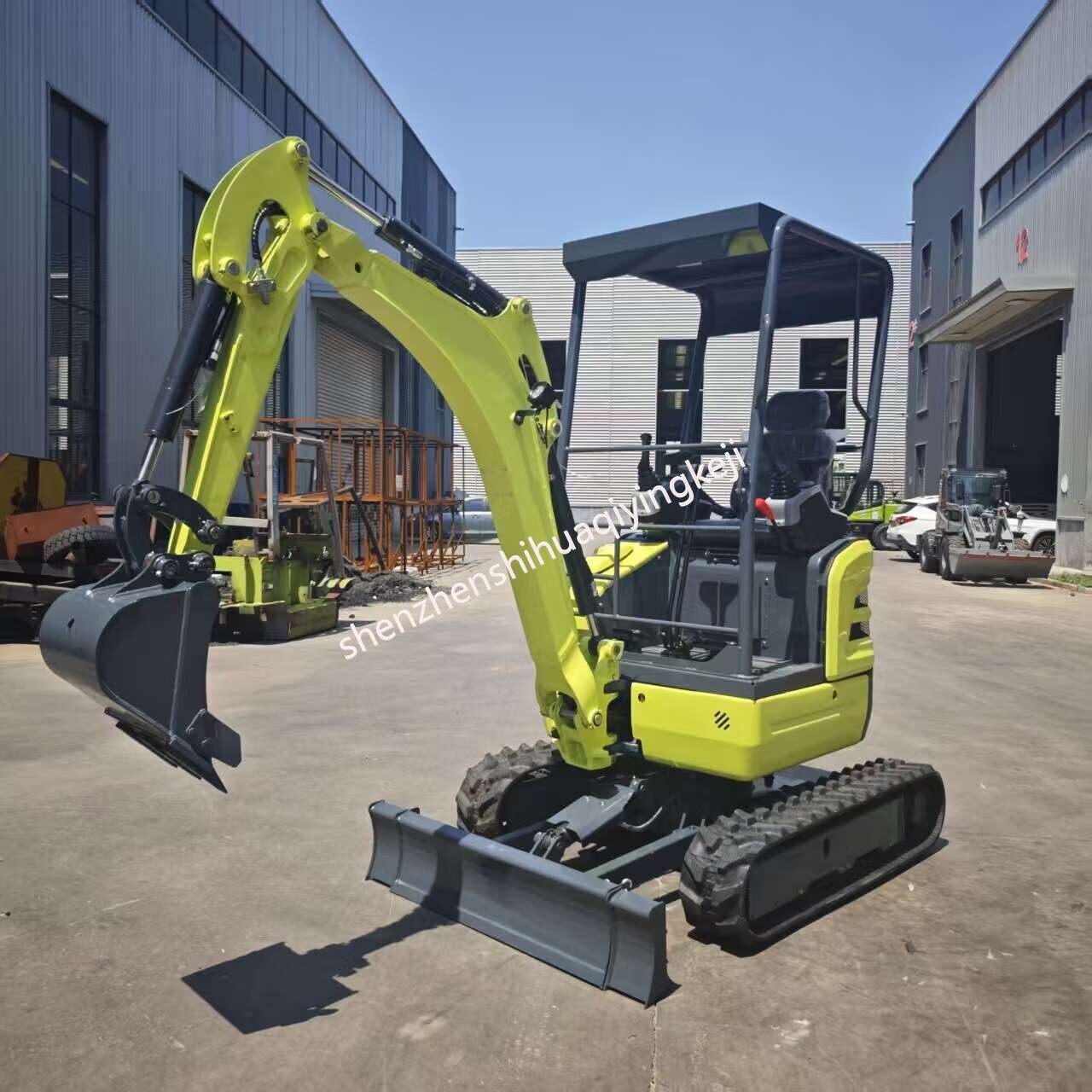

HQE18-Top 1.8T Elite: 64L/min High-Flow & Precision
The HQE18-Top is a professional 1800kg mini excavator designed for high-precision tasks. Powered by Yanmar 3TNV74F or Kubota D902 engines (11.8kW), it delivers a powerful 16kN bucket digging force.
Core Technical Highlights:
• Elite Hydraulics: Equipped with a Taifeng A10V28 variable displacement piston pump and TRM10 load-sensing valve, providing 64L/min flow and 23MPa pressure for smooth multi-functioning.
• Smart Design: Features Boom Swing and a Retractable Chassis for tight spaces.
• Pro Drive: Eddie piston motors for swing and travel, featuring hidden high/low speed protection (2.2-4.5km/h).
• Maximum Stability: Built with Dual Cast-Iron Counterweights and short-pitch rubber tracks for superior balance.
Factory direct. OEM service available.

Engine: YANMAR 3TNV88F; 18.2kw
Main pump: Hengli hp5v45
Operating pressure: 25.5 MPa
Maximum flow rate: 99 L/min
Rotary motor: Hengli HM5X1800
Operating pressure: 20.6 MPa
Travel motor: Aidi FTM03C
Operating pressure: 25.5 MPa
Main valve: Hengli hvse-09-10
Flow rate: 100 L/min

Standard configuration without a cab
Basic Configuration:
1. Boom swing
2. Extendable chassis
3. Hidden travel high and low speed motors
4. Load sensing valve
5. Variable displacement piston pump
6. Piston rotary motor
7. Dual cast iron counterweights
8. Short-pitch rubber tracks 230*48*70 mm

Engine: Kubota D1703
Power: 18.2 kW
Bucket Capacity: 0.12 m³
Max. Digging Radius: 5480 mm
Max. Digging Depth: 3208 mm
Max. Digging Height: 4800 mm
Max. Dumping Height: 3406 mm

Engine Options:
1. Changchai 490
2. Yanmar 388
3. Kubota D1703
