HQE60 Excavator Specifications

HQE60: The High-Performance 6-Ton Excavator (Premium Hydraulic Edition)

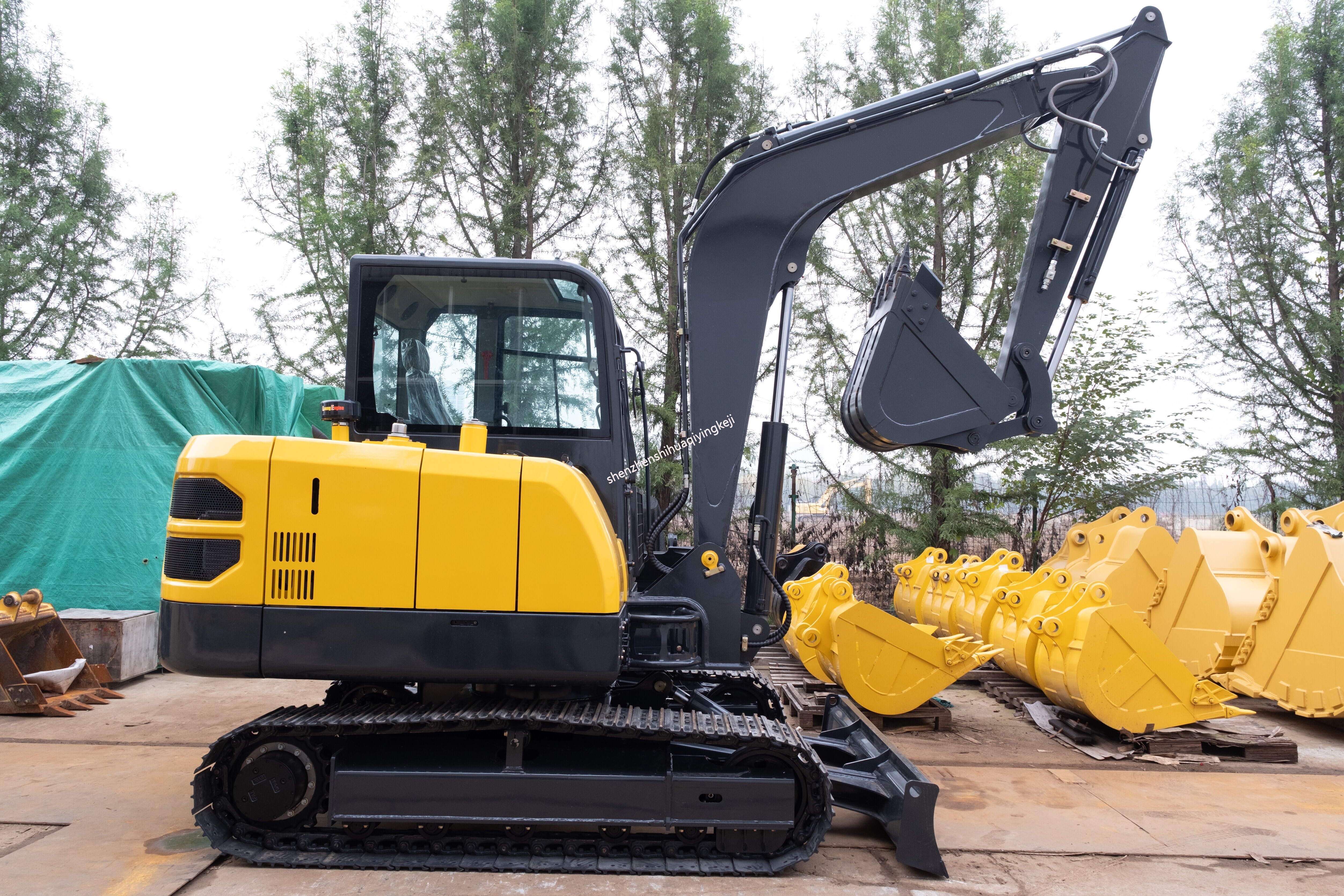

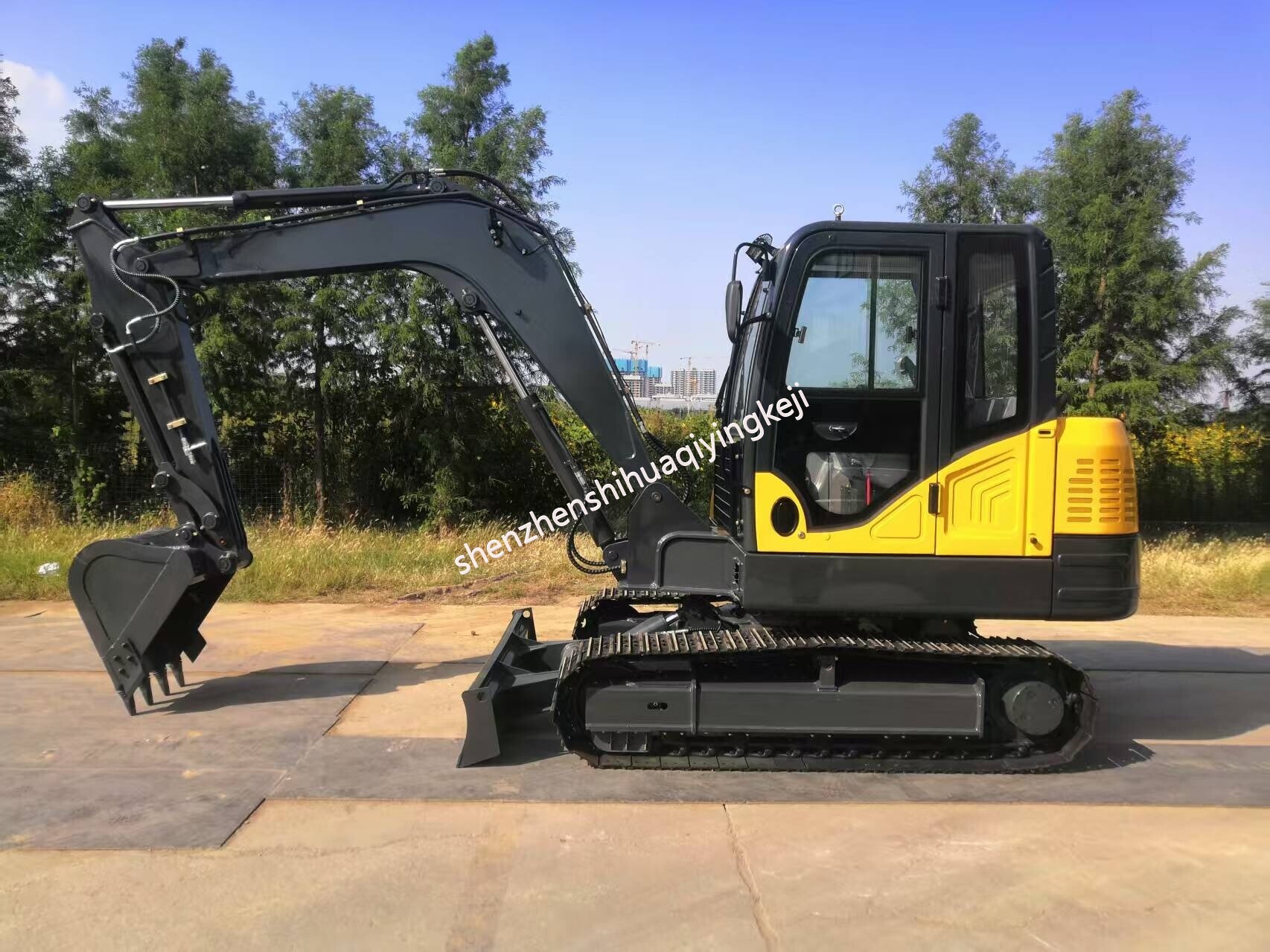

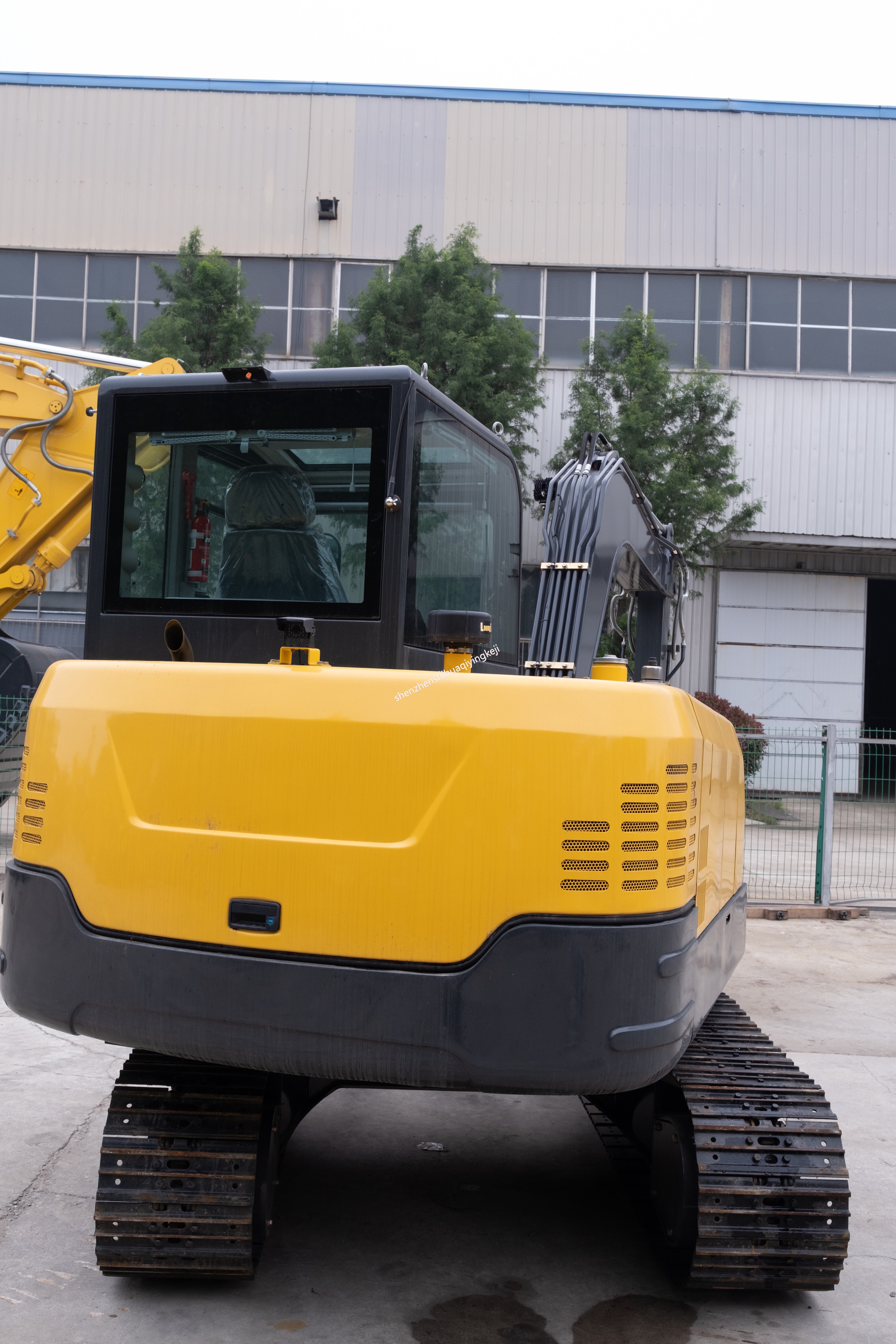

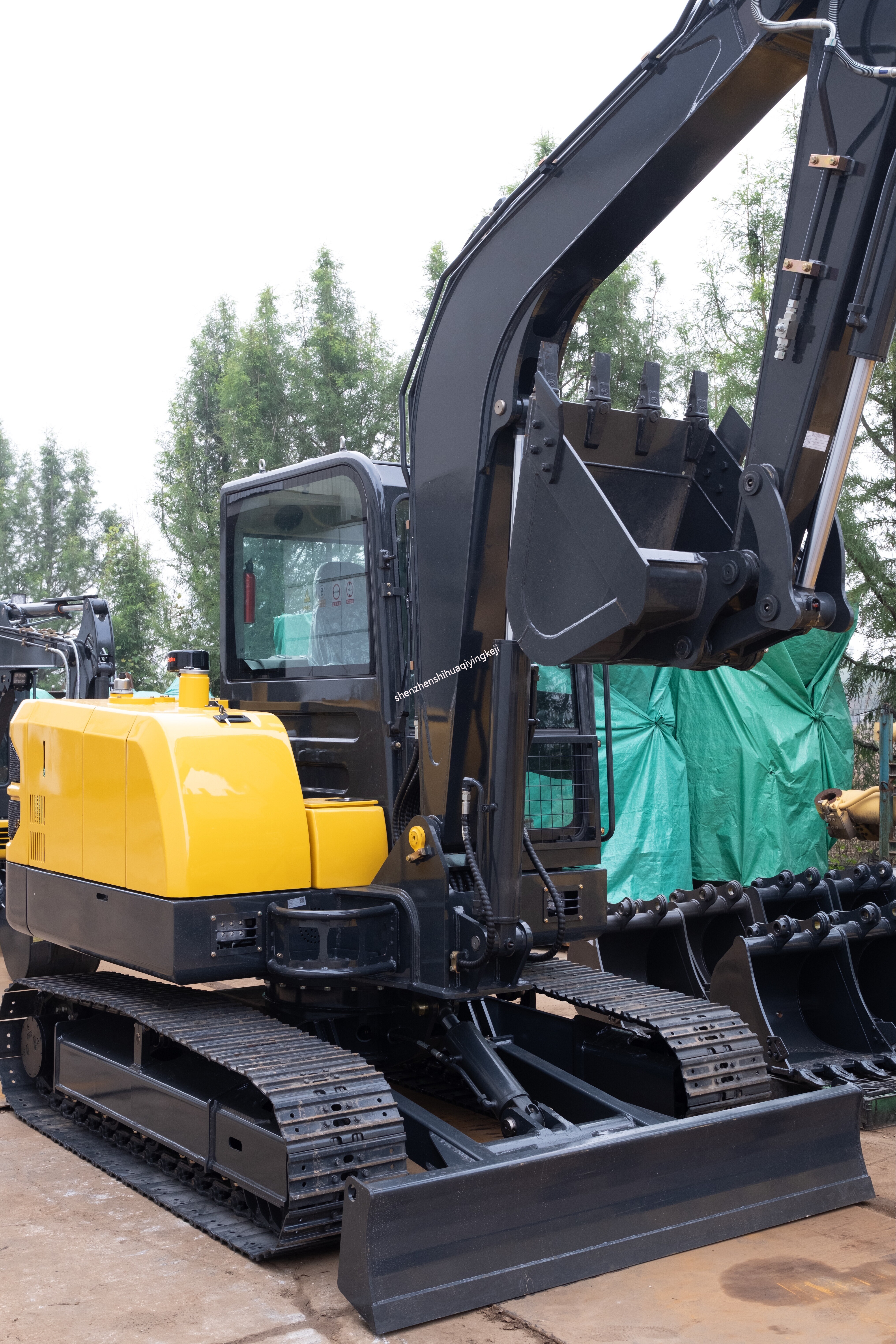

The HQE60 is a professional-grade 6000kg crawler excavator engineered for high-intensity construction, urban infrastructure, and heavy-duty earthmoving. By integrating a genuine Yanmar 4TNV98 engine with the industry-leading Inline (Hengli) hydraulic architecture, the HQE60 delivers a massive 160L/min hydraulic flow—setting a new benchmark for speed and power in the 6-ton class.

Core Technical Advantages

1. Legendary Powertrain (Yanmar 4TNV98)

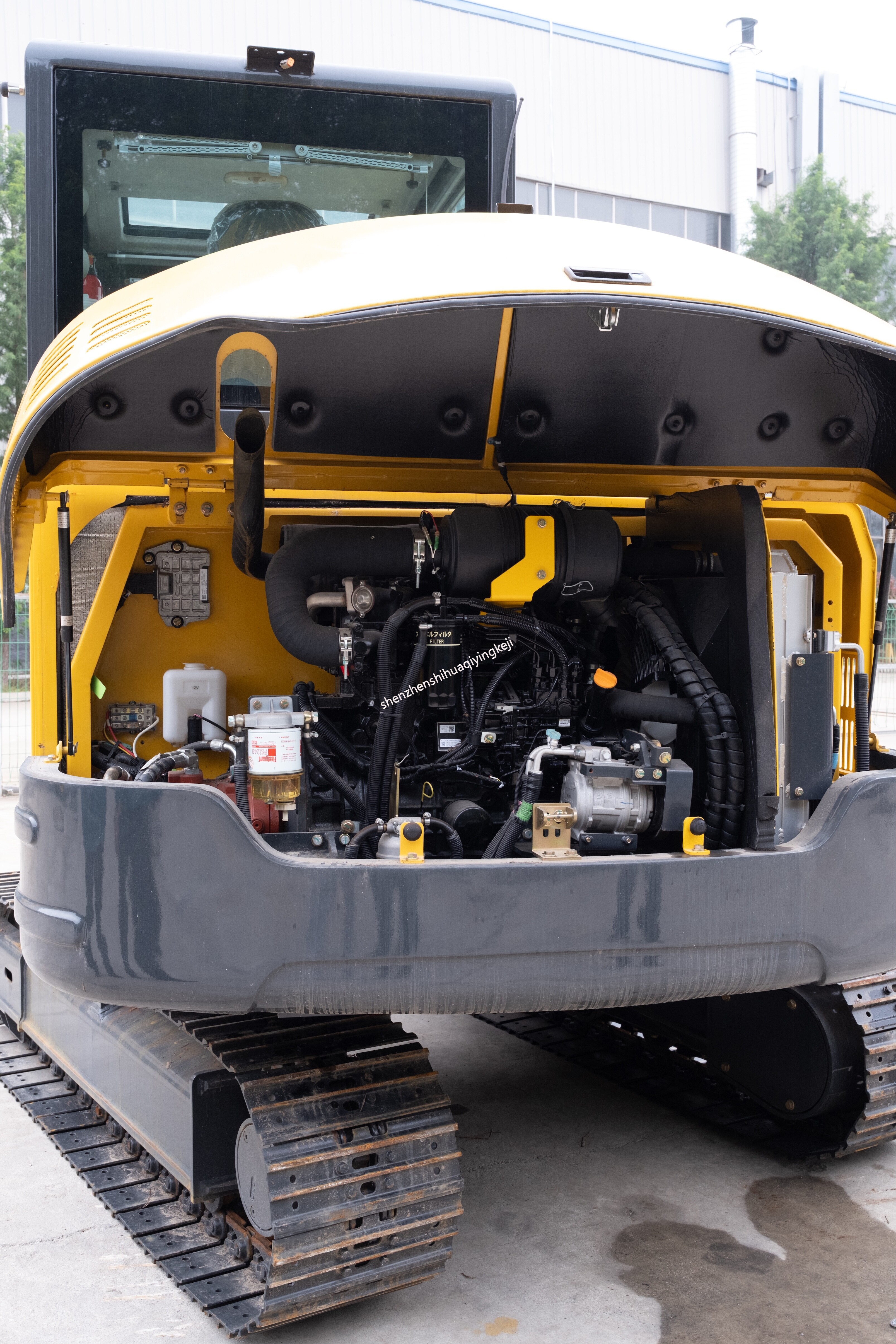

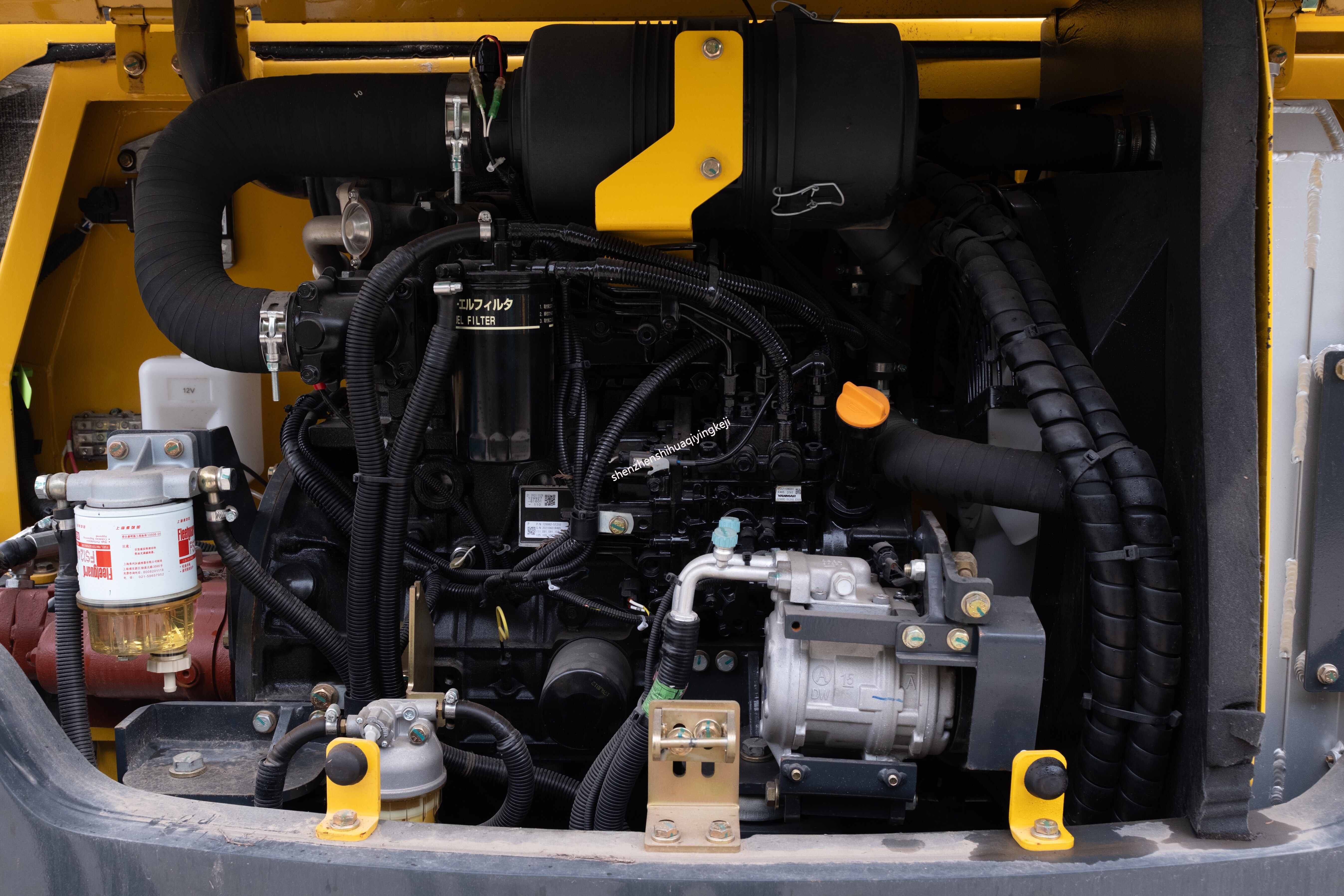

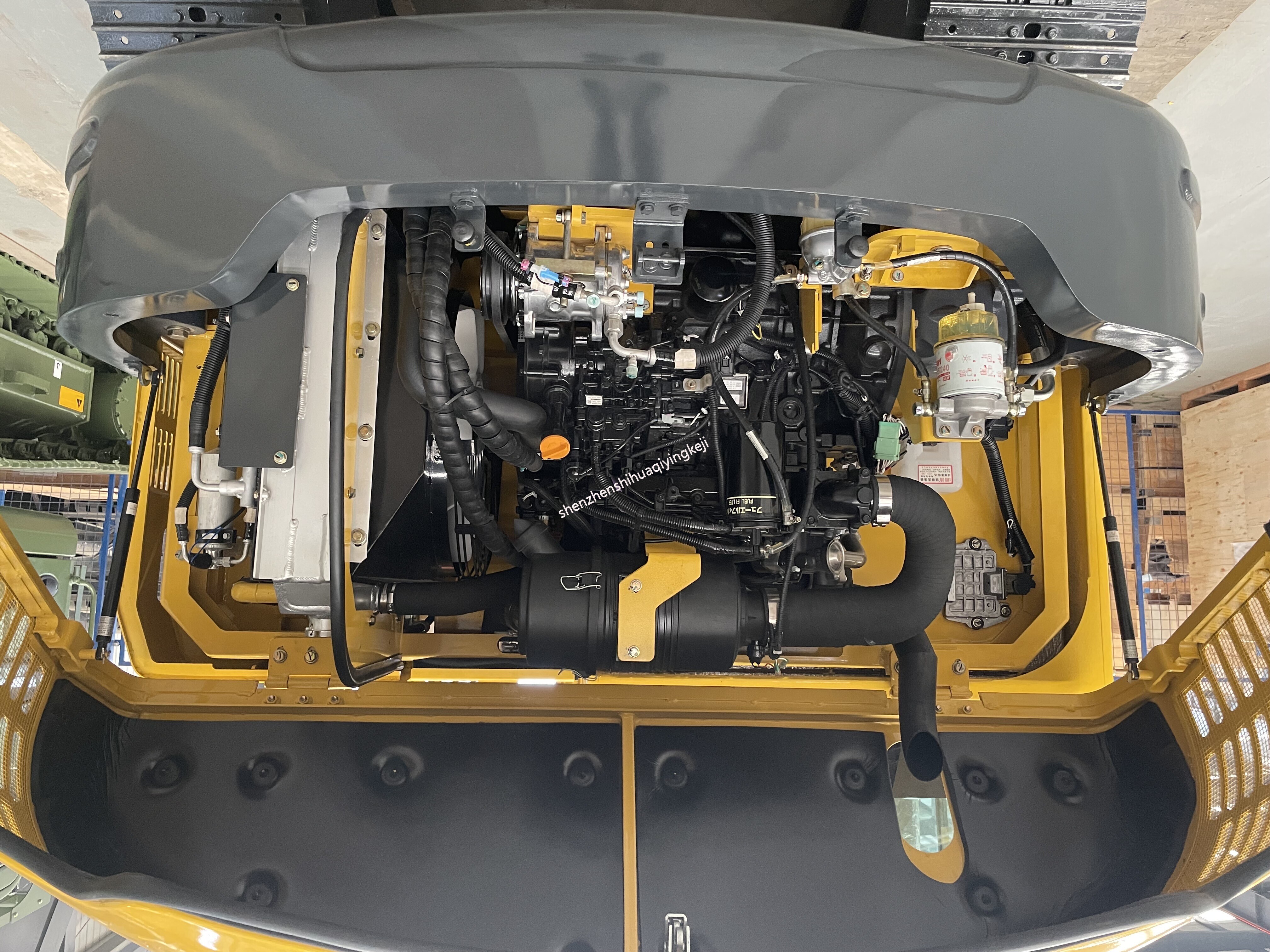

• Reliability: Equipped with a 3.319L Yanmar 4TNV98 natural aspiration engine.

• Output: Delivers a robust 46.3kW (62HP) at 2200rpm, providing stable torque for continuous heavy lifting.

• Fuel Efficiency: Optimized fuel injection system reduces operating costs while meeting global emission standards.

2. Elite Hydraulic Architecture (Full Inline System)

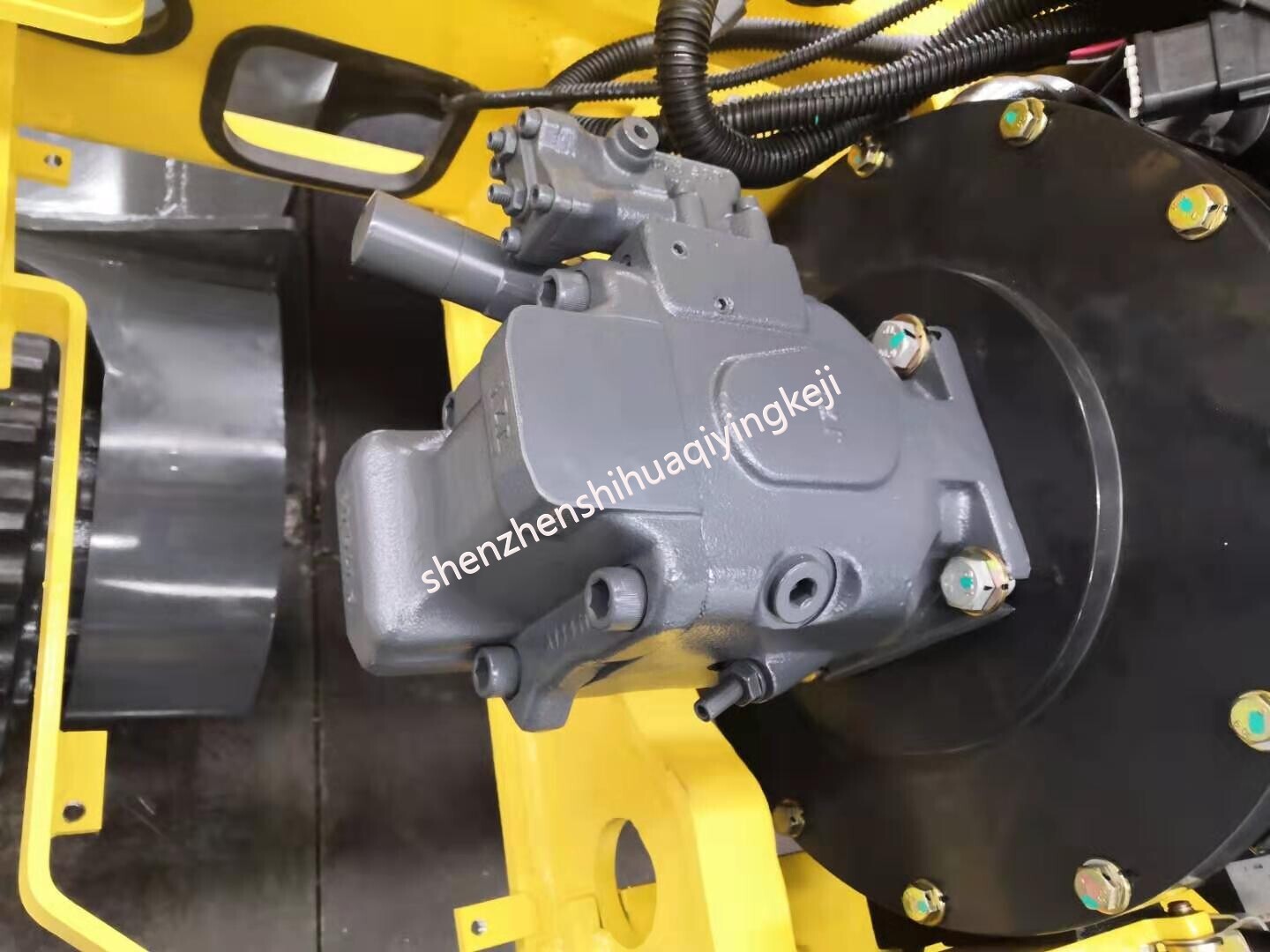

• Main Pump (Inline HP5V76): An axial piston pump providing a class-leading 160L/min flow rate and 28MPa working pressure. This ensures lightning-fast cycle times and smooth compound movements.

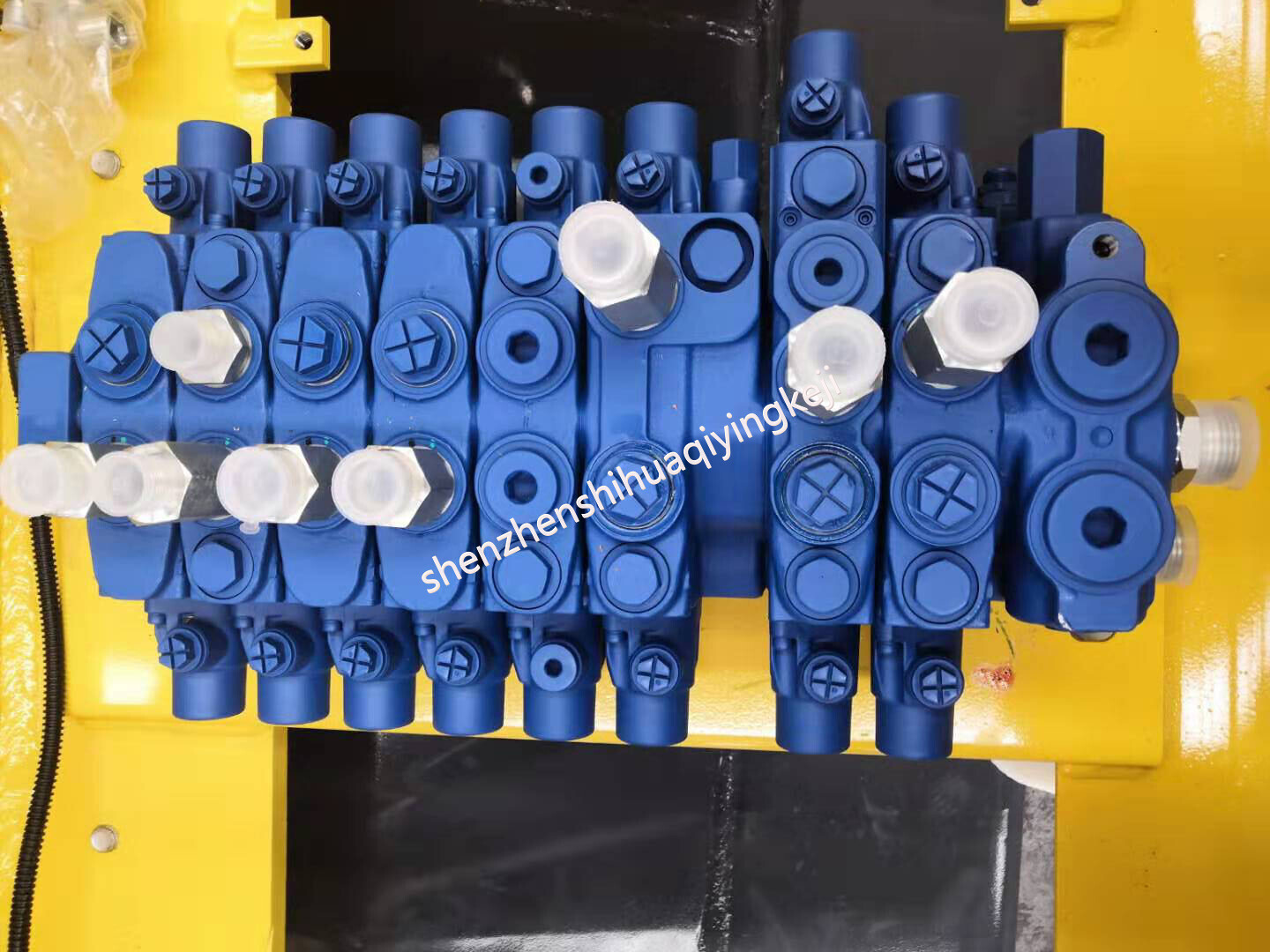

• Main Valve (Inline HVSE-12): Features advanced load-sensing technology with a 120L/min capacity, allowing for surgical precision and zero-lag response during multi-function operations.

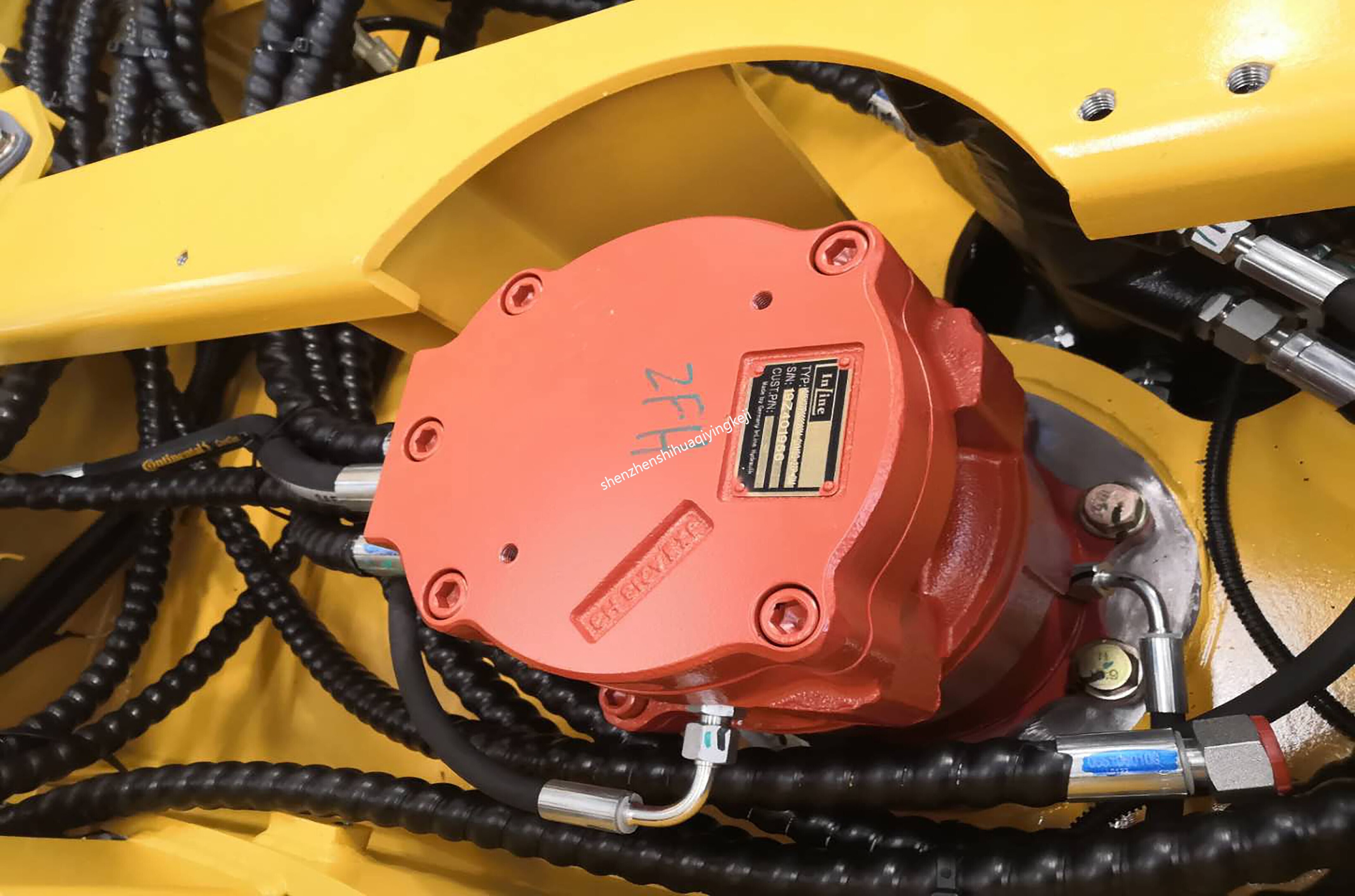

• Swing Motor (Inline HM5X27): High-torque rotation with a dedicated 20.6MPa pressure system for stable performance on slopes.

3. Superior Digging Force & Agility

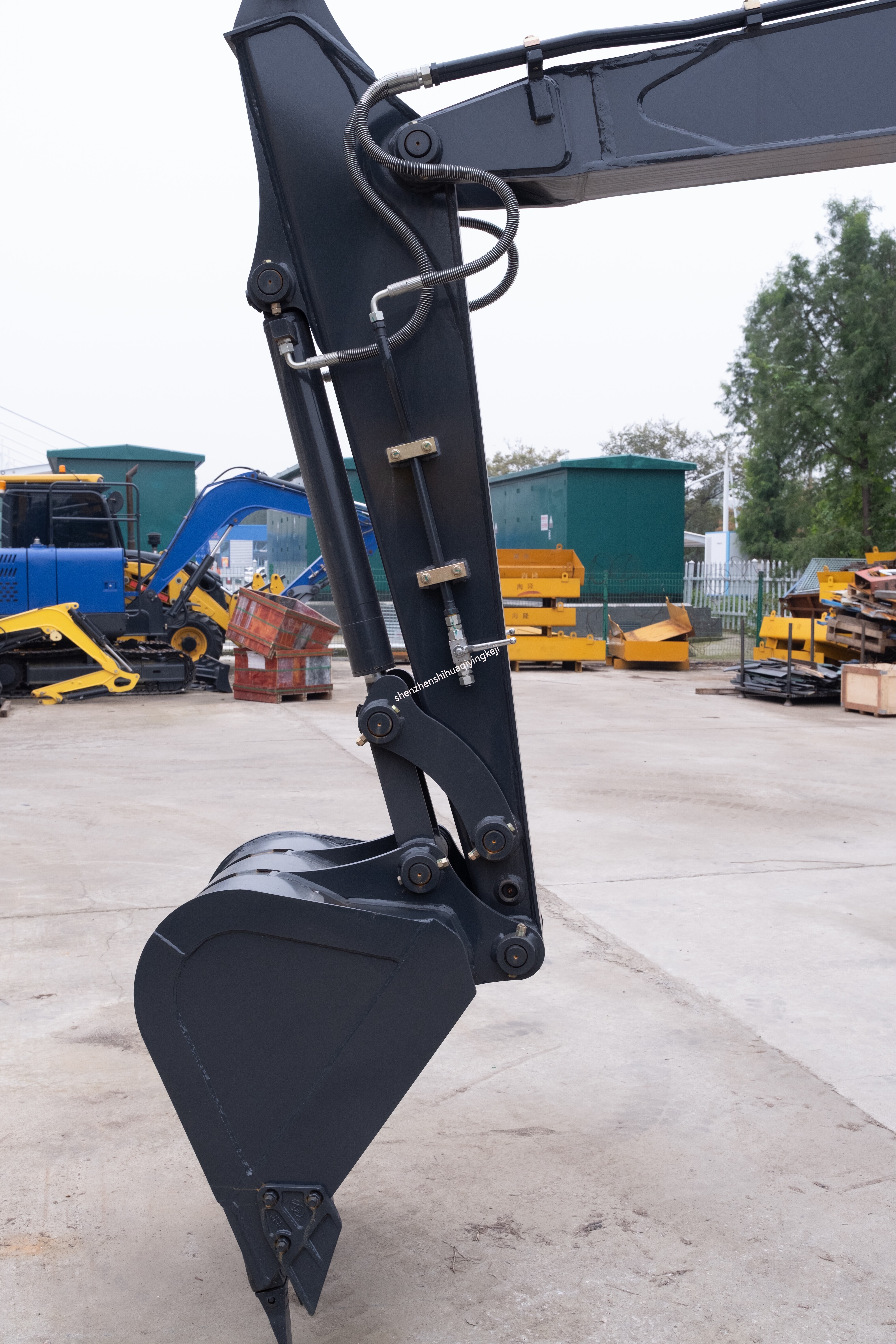

• Massive Power: A bucket breakout force of 42kN and arm digging force of 30.5kN makes short work of compacted soil and rock.

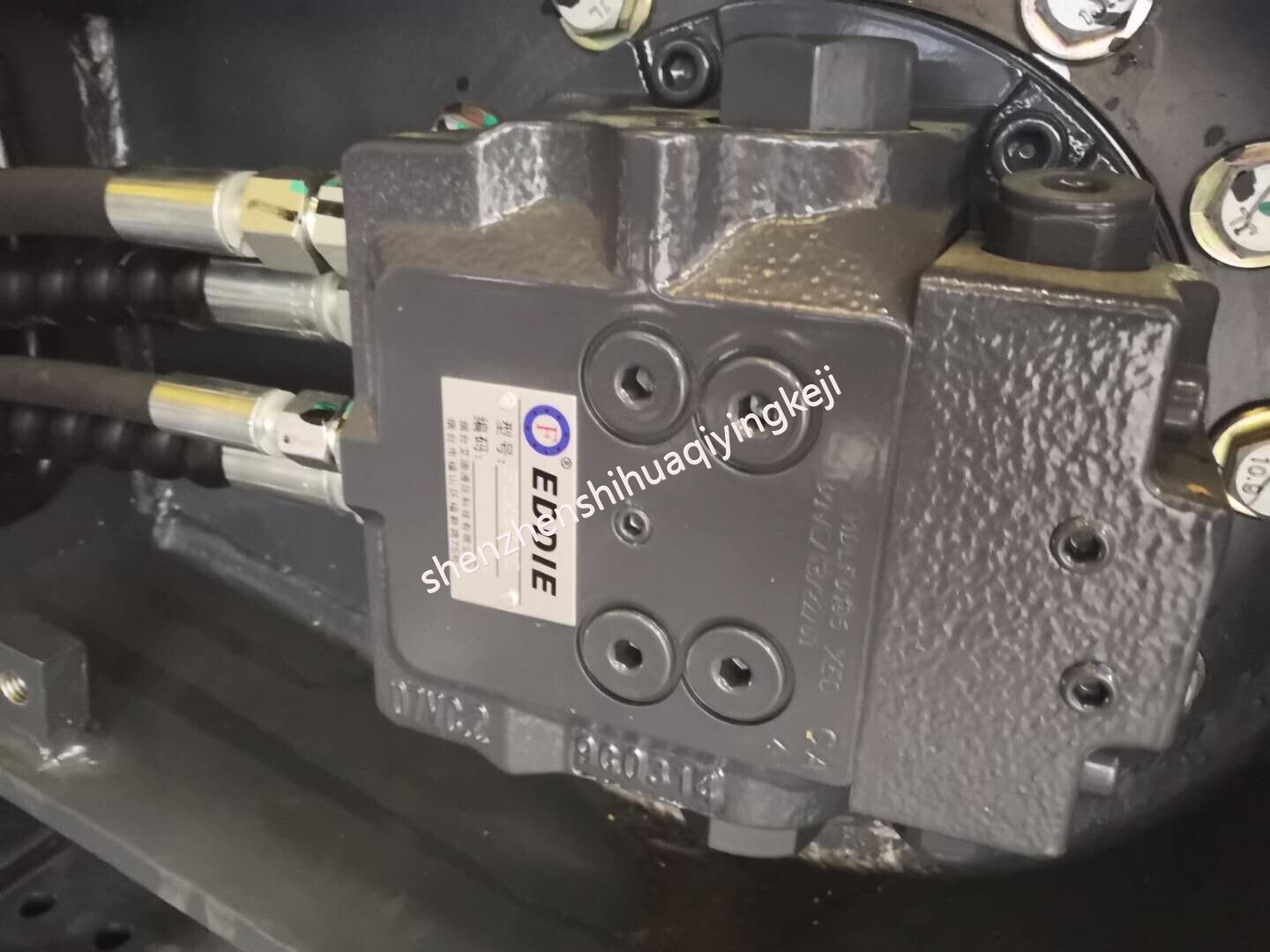

• Maxpower Travel System: Equipped with Maxpower ZTM07 dual-speed motors, allowing for agile site relocation (up to 5.1km/h).

Why Choose HQY Factory?

• Direct Manufacturer: Get factory-direct pricing and direct access to our engineering team.

• 1-Unit OEM Branding: We support professional dealers and project bidders with custom colors and brand application for single-unit orders.

• Tender-Ready Support: We provide all necessary CE/ISO documentation and technical submittals for government and commercial tenders.
