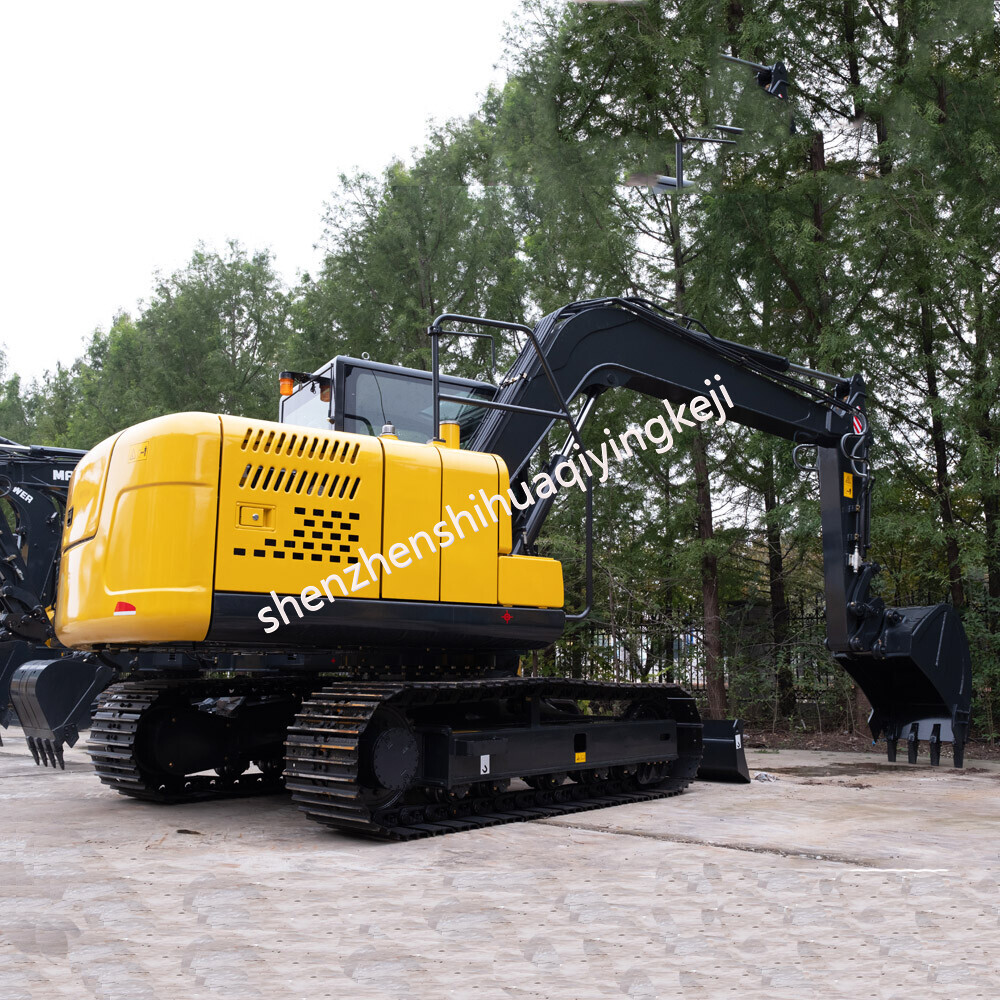

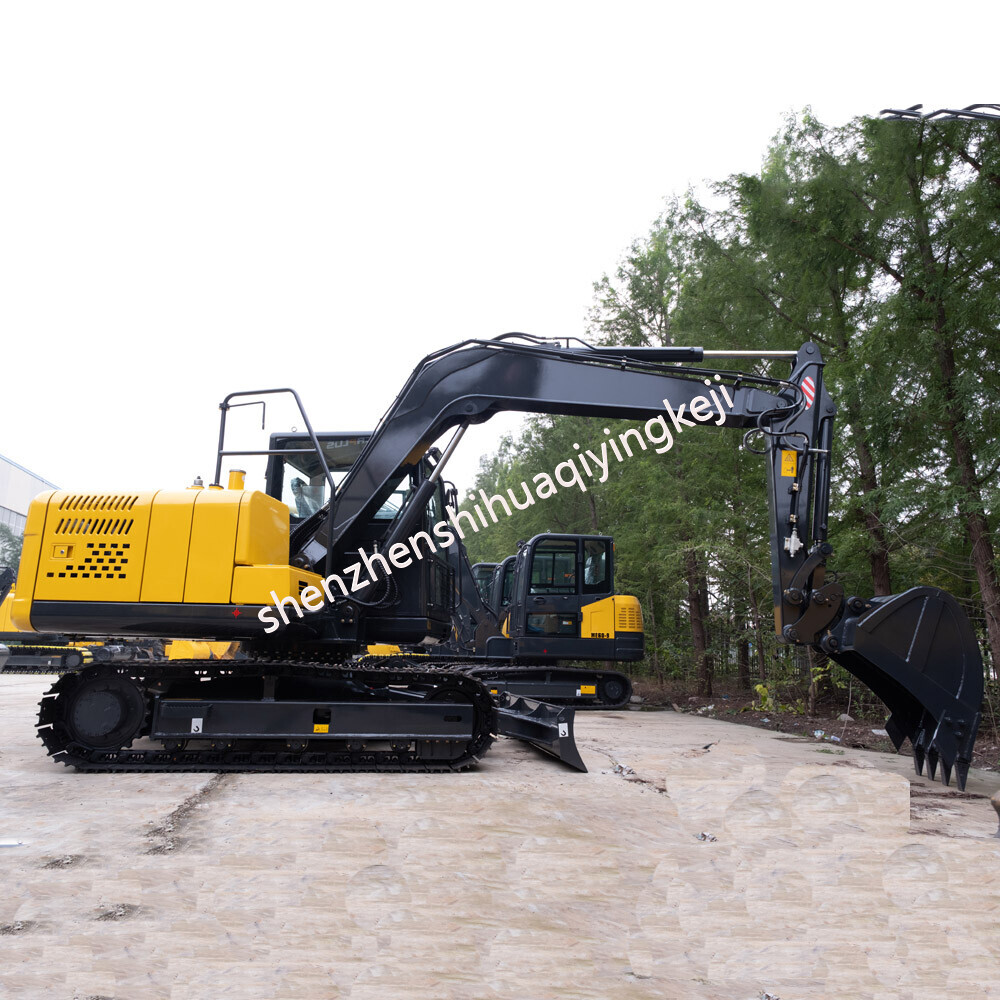

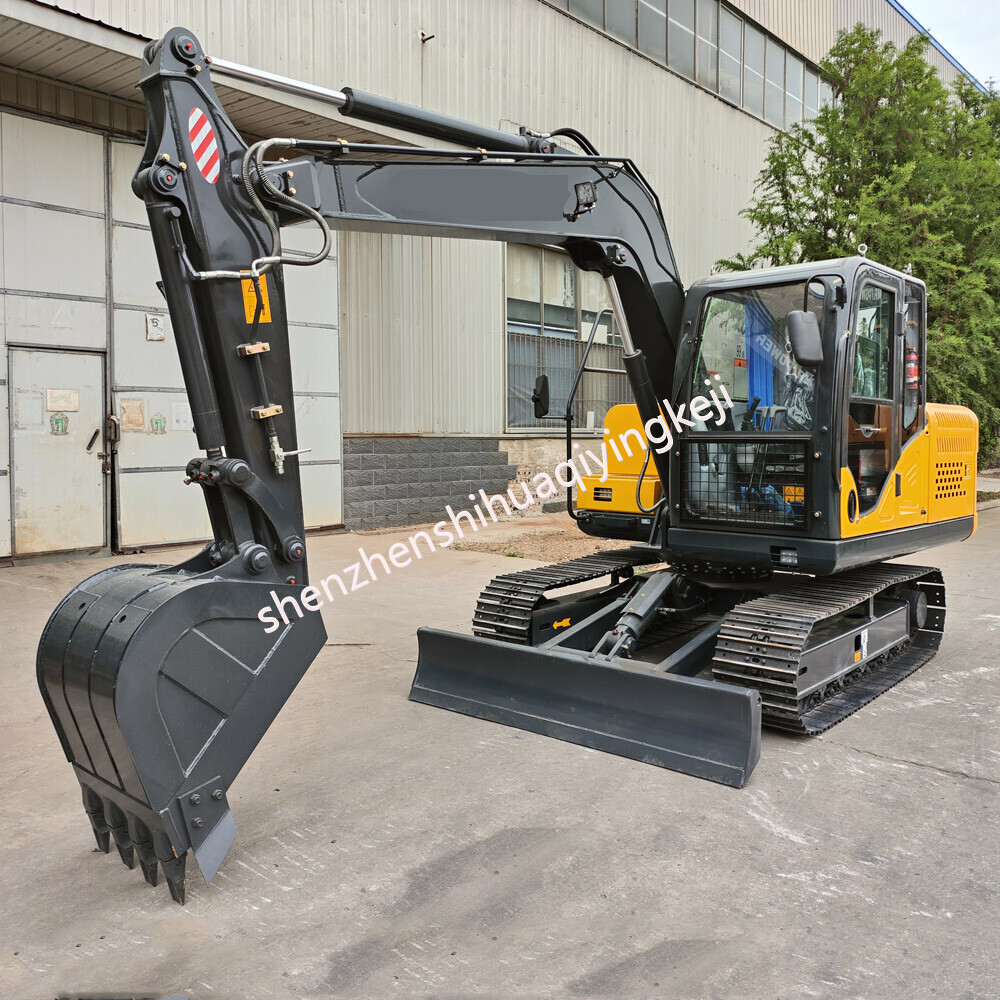

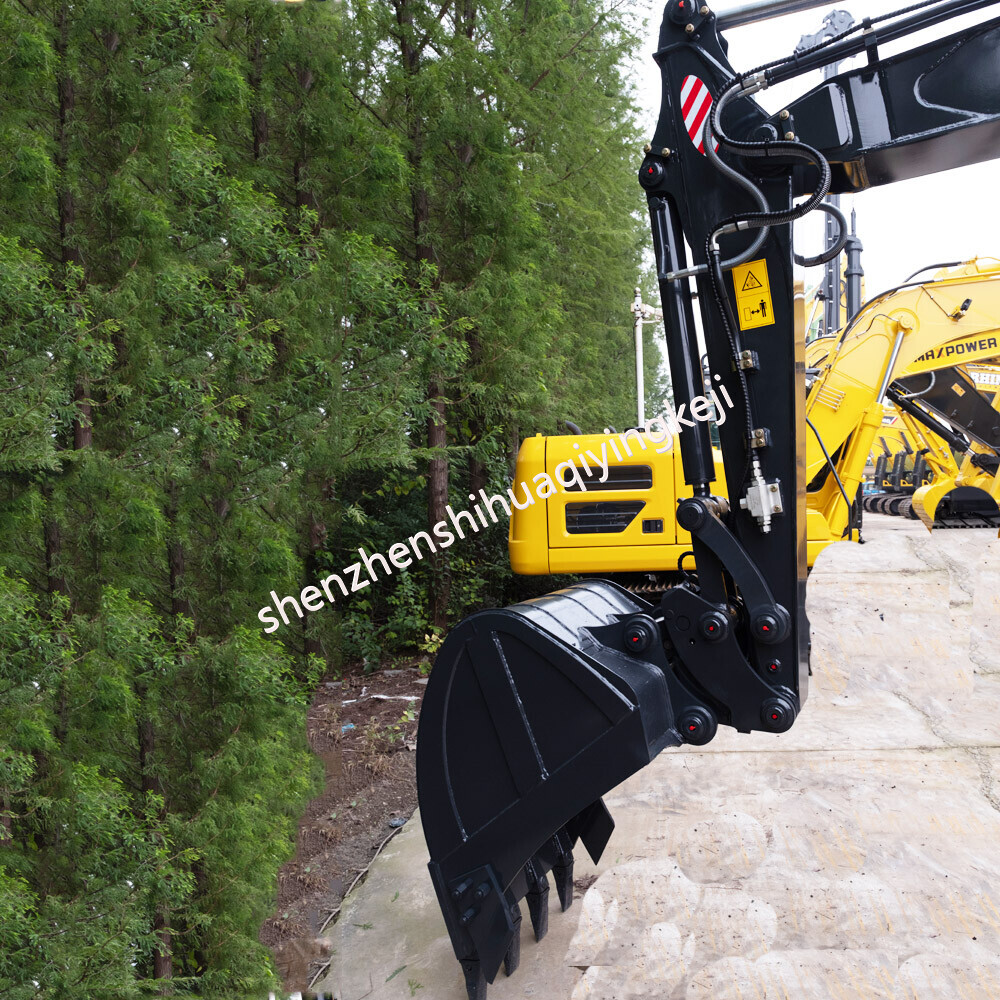

Excavator HQY HQE80 8 Ton Excavator | Yanmar Turbo Engine | 165L/min High Flow

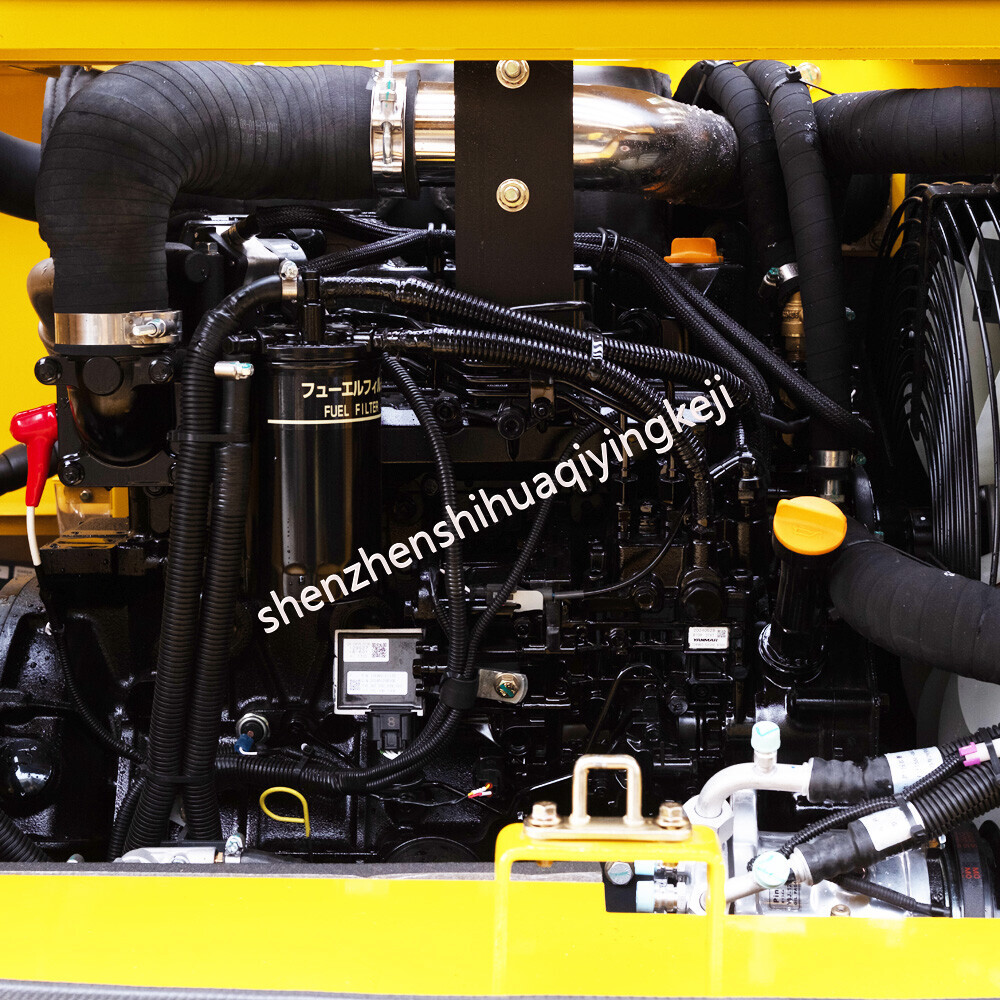

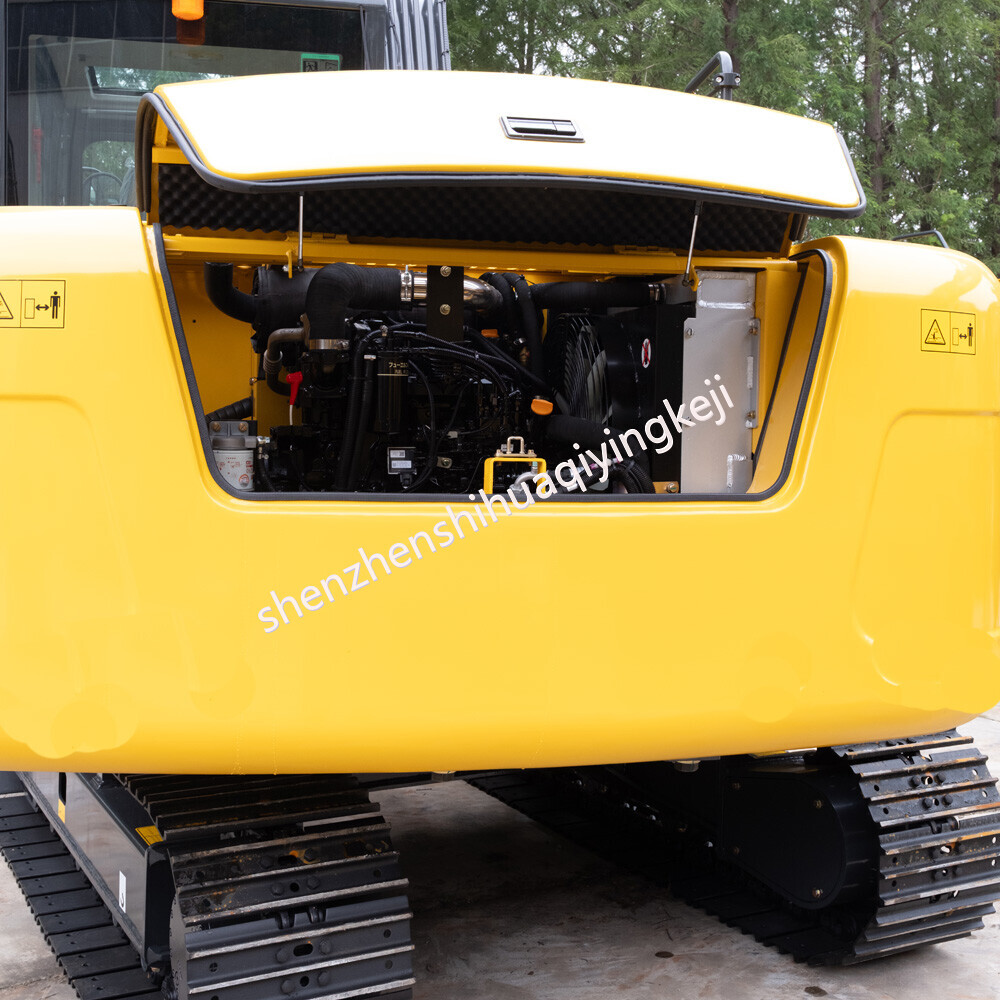

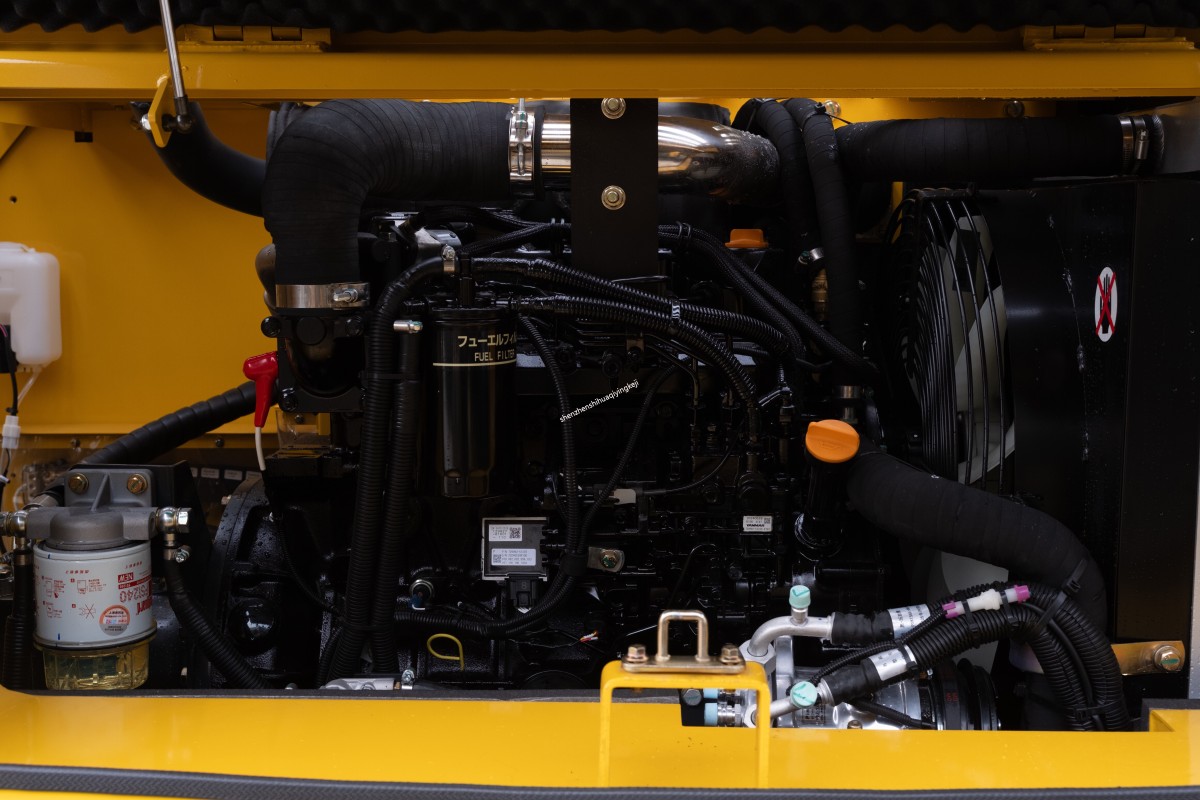

Engine Performance: Featuring the Yanmar 4TNV98CT, it provides high torque at low RPMs, ensuring fuel efficiency without sacrificing digging power.

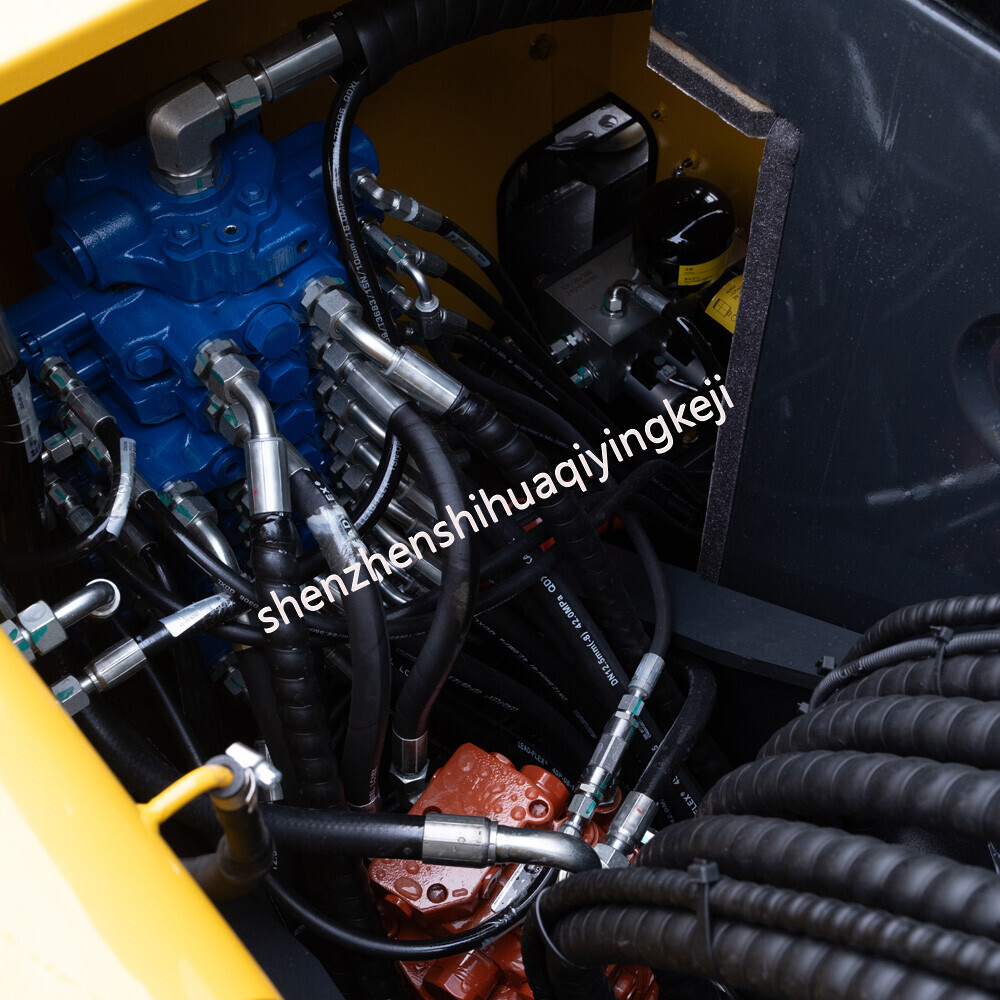

• Elite Hydraulics: The 32MPa main pressure combined with an 180L/min rated control valve (Inline HVSE-18) ensures smooth multi-function movements—no more "jerky" controls under load.

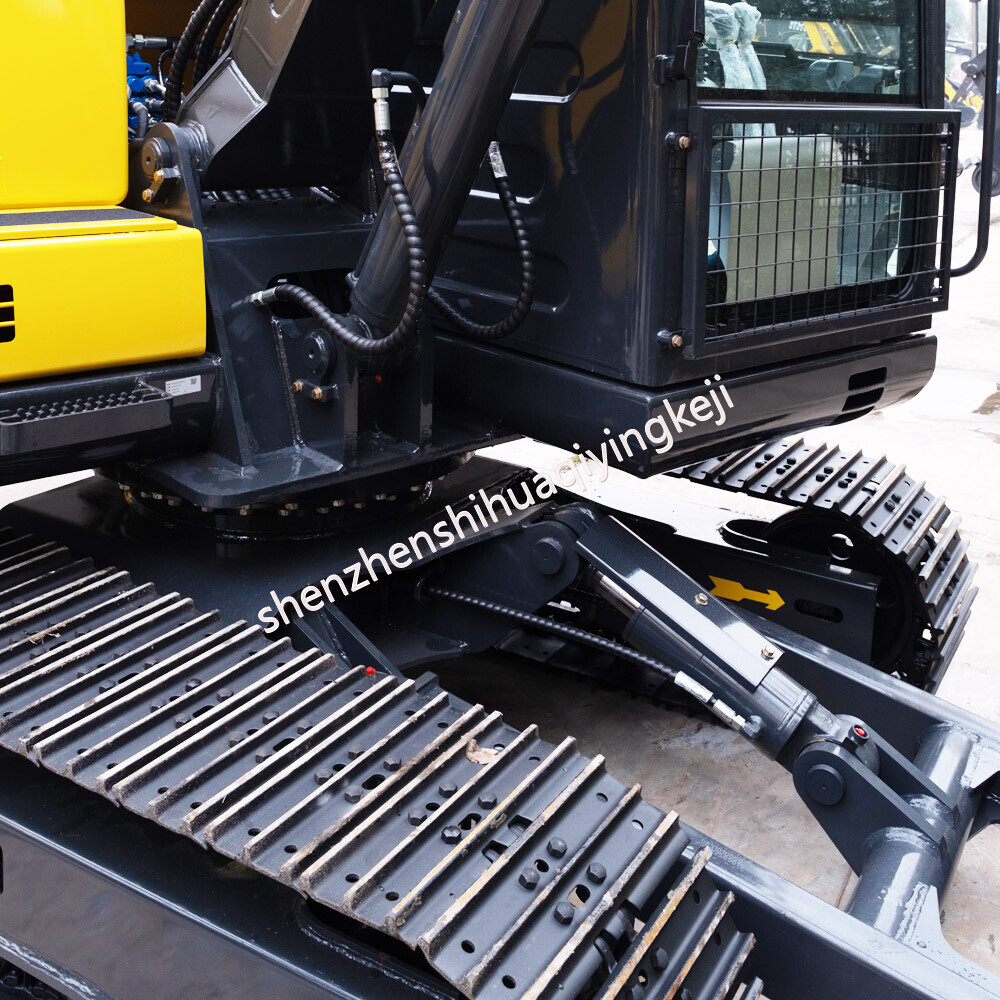

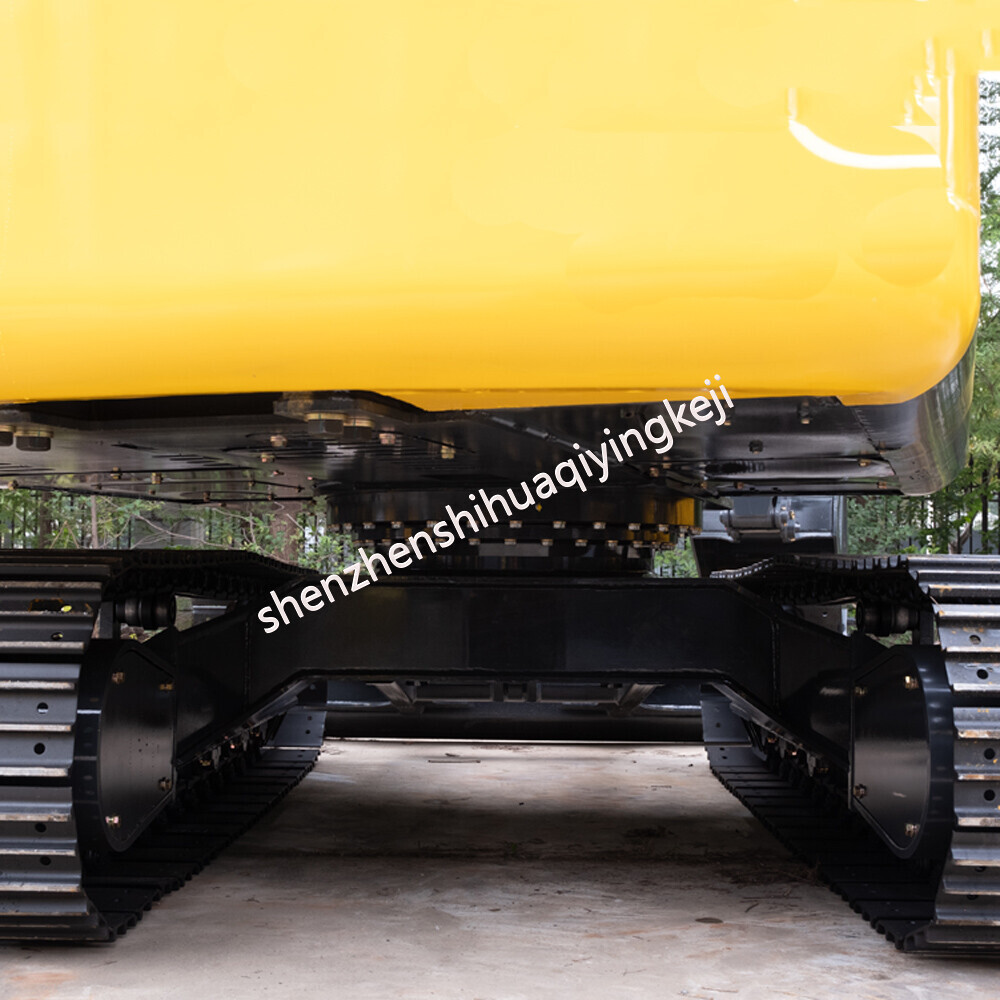

• Heavy-Duty Chassis: The 8200kg operating weight and Eddie FTM10VC travel motors provide superior stability and traction on steep or muddy terrains.

Inquiry Now

HQE80 excavator main technical parameters

Name: Excavator HQY HQE80 8 Ton Excavator | Yanmar Turbo Engine | 165L/min High Flow
SKU: 0

Overview of HQE80 8-Ton Excavator

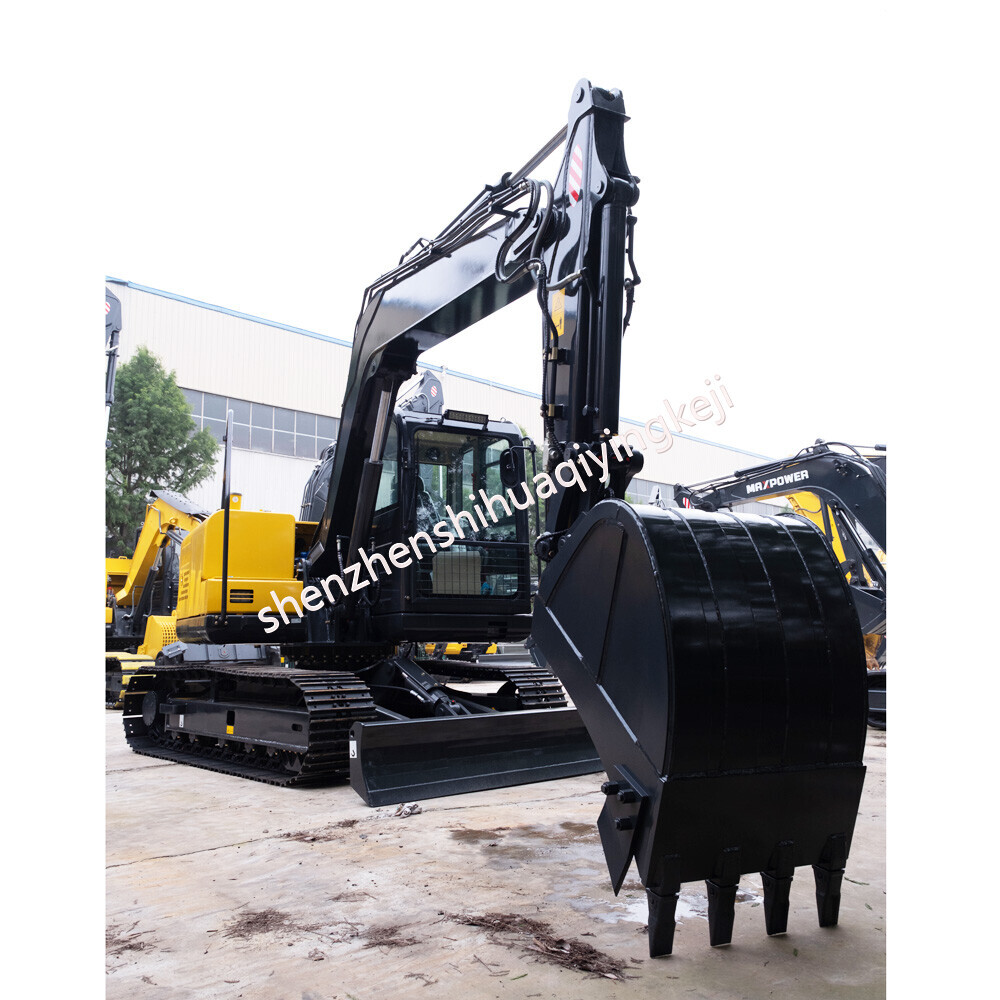

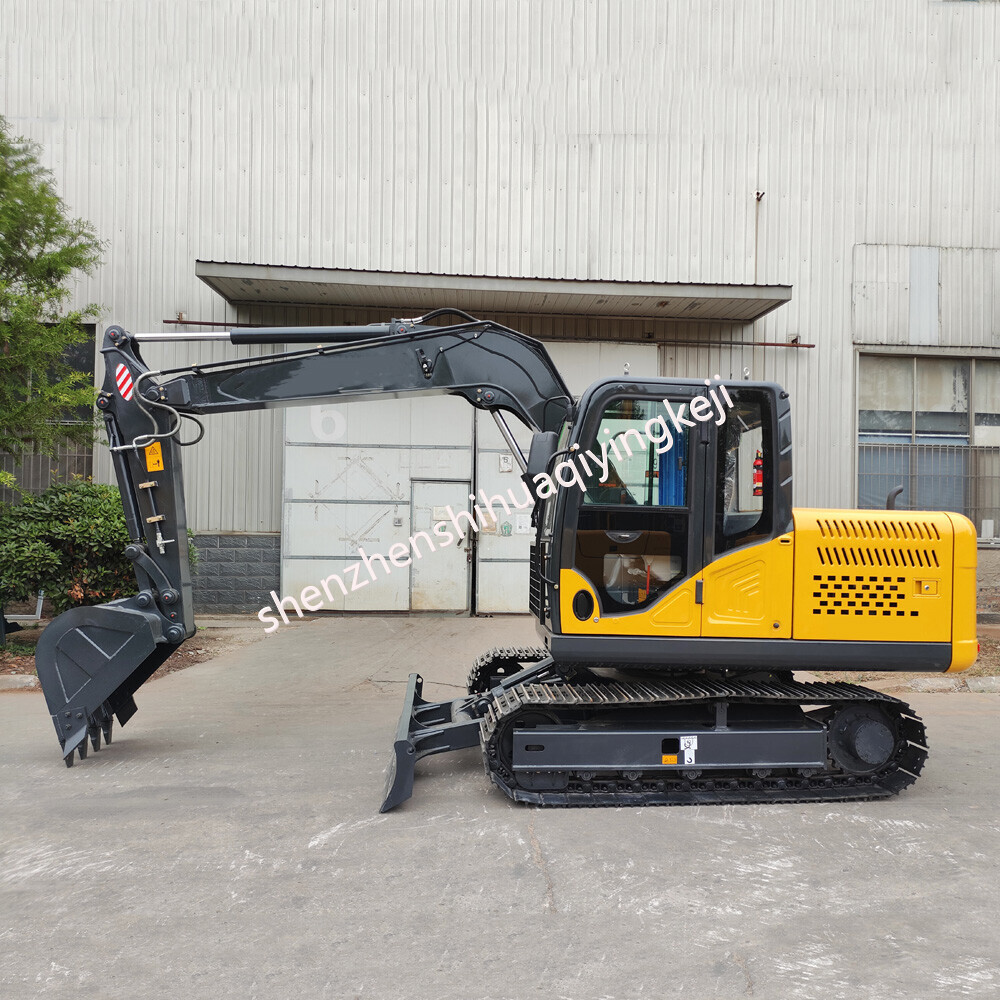

The HQE80 is a heavy-duty 8 ton excavator designed for operators who require maximum power and precision. Equipped with a Yanmar 4TNV98CT Turbocharged engine, it delivers 53.7kW of output, making it one of the most powerful machines in the midi excavator class.

Why Choose the HQE80?

* High-Flow Hydraulics: With a massive 165L/min hydraulic flow, it easily handles heavy mulchers, hammers, and shears.

* Extreme Durability: The 32MPa working pressure and reinforced chassis ensure stability in tough terrains.

* OEM Ready: We provide custom branding and factory-direct support for dealers and rental businesses.

HQE80 excavator main technical parameters
规格型号 Model				HQE80
斗容Bucket capacity (m3)			m³	0.32
操作重量Operating weight (T)			kg	8200
油箱容积 Volume of fuel tank (L)			L	130
序号No.	名称Name	项目Item	单位Unit
发动机 Engine		品牌型号 Brand		Yanmar 4TNV98T
		功率Rated power (kw/r/min)	kw/rpm	56.5/2200
		排量Capacity of engine	L	3.319
		最大扭矩（N/m）和曲轴转速（min-1） maximum torque (N/m) and crankshaft rotation speed (min-1)	（N.m/rpm）	273.7～298.2/1650±100
		缸数及排列方式（直列、V型）Number and arrangement of cylinders (inline, V-shaped)		4 inline
		进气方式Intake mode		涡轮增压Turbocharger
		燃油系统工作方式Fuel system mode		直喷Direct injection
		排放标准Emission standard		国Ⅲ
底盘Chassis		驱动方式Drive mode		液压Hydraulic

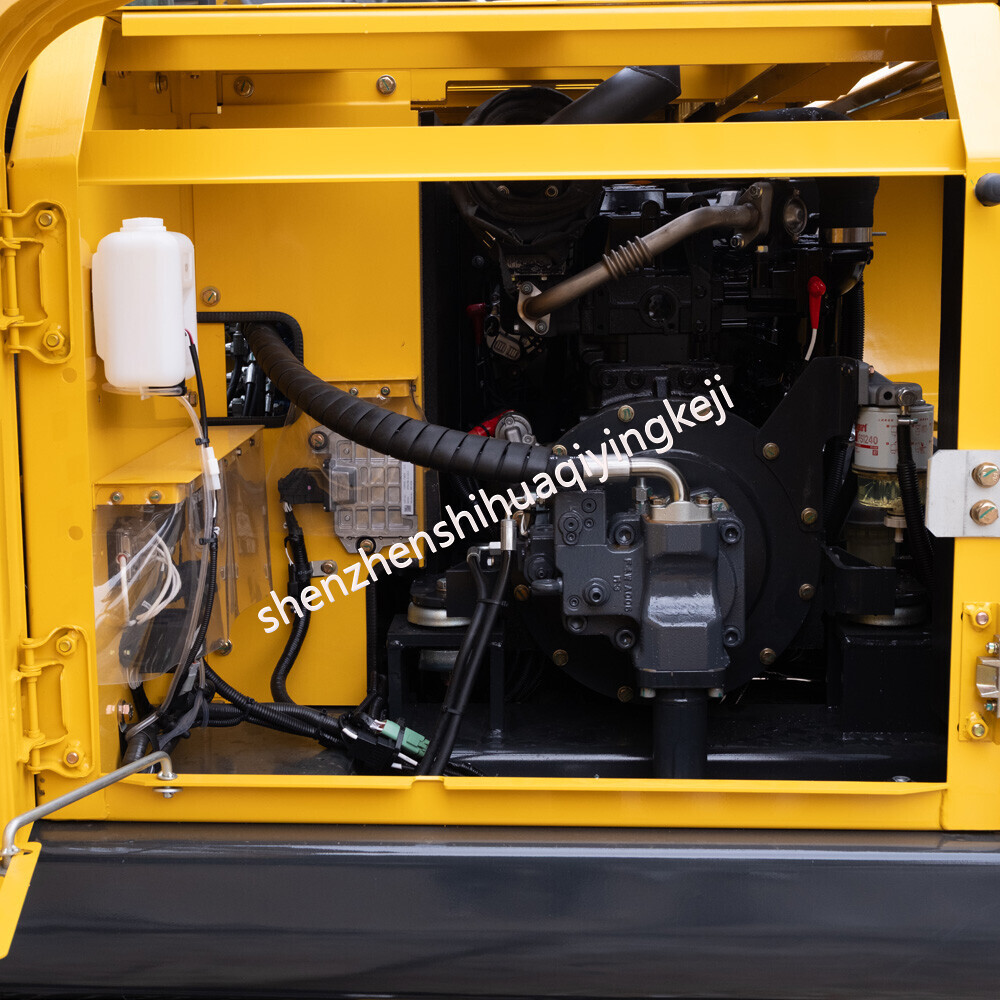

主泵Main pump		品牌型号Brand		Inline HP3V80
		额定压力Rated pressure	Mpa	32
		流量Flow	L/min	165
回转马达Swing motor		品牌型号Brand		Inline HM5X45
回转马达Swing motor		工作压力Rated pressure	MPa	23.5
行走马达Travel motor		品牌型号Brand		Eddie FTM10VC
行走马达Travel motor		工作压力Rated pressure	MPa	32.3
主控阀Control valve		品牌型号Brand		Inline HVSE-18
		额定流量Rated flow	L/min	180
		制动形式Brake form		液压 Hydraulic
液压油Hydraulic oil		标号及用量Model and dosage	L	HM046/75
底盘件Chassis parts		履带形式-Track form		三齿
		履带板宽度Track width	㎜	450
		履带板数量No. of track	件	每侧 38(Each side)
		履带接地比压Average grounding pressure(KPa)	KPa	30
		支重轮数量No. of track rollers	件	每侧 5(Each side)
性能参数Performance parameter		爬坡能力Max climbing degree°	度	35
		行驶速度Travel speed		2.7/5.1
		最大挖掘高度Max. digging height	mm	7165
		最大卸载高度Max. dumping height	mm	5065
		最大挖掘深度Max. digging depth	mm	4038
		最大挖掘半径 Max. digging radius	mm	6330
		斗杆挖掘力Arm digging force	kN	45
		铲斗挖掘力Bucket digging force	kN	52
		最大牵引力Traction	kN	75
		回转速度Swing speed	r/min	10
