HQE-18-Top

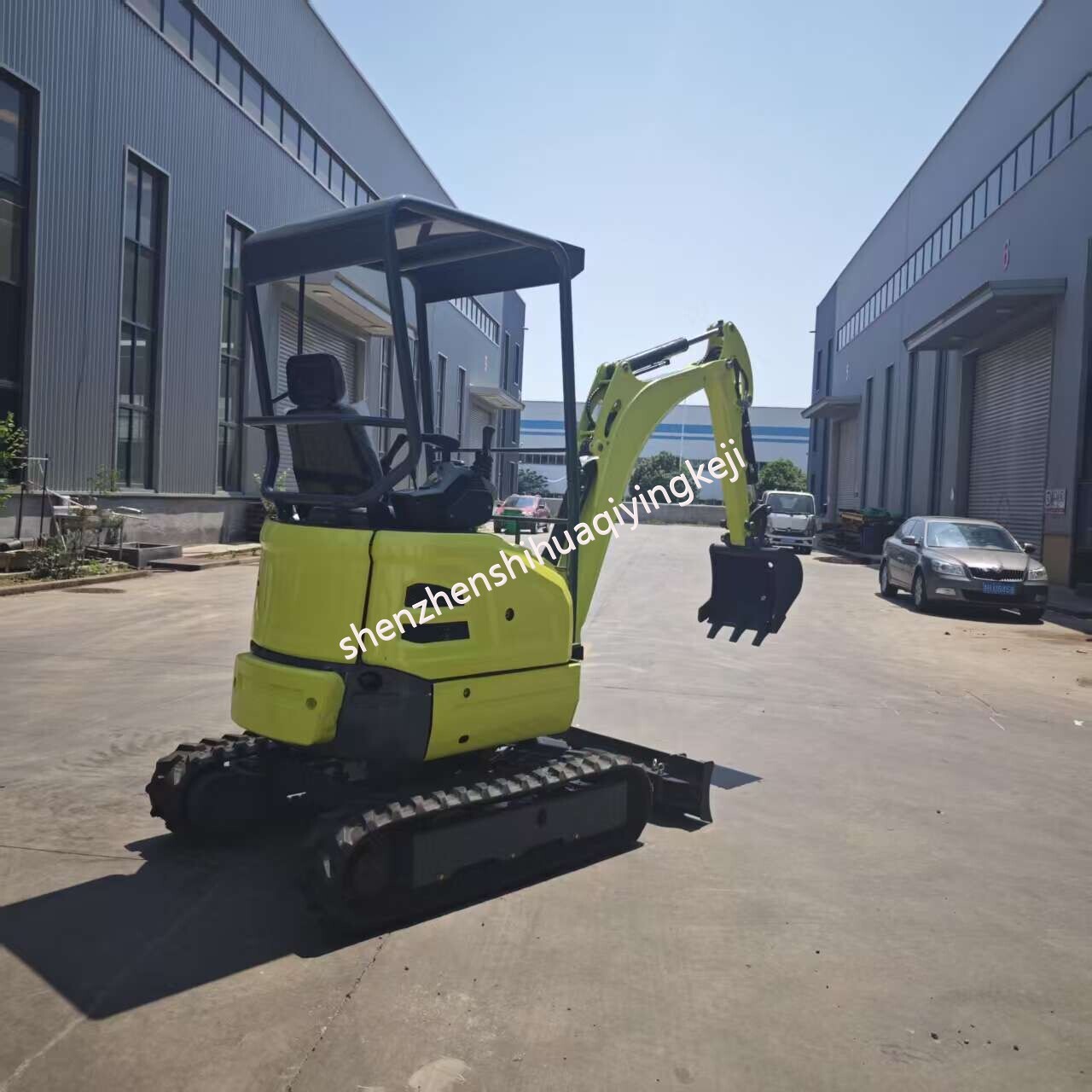

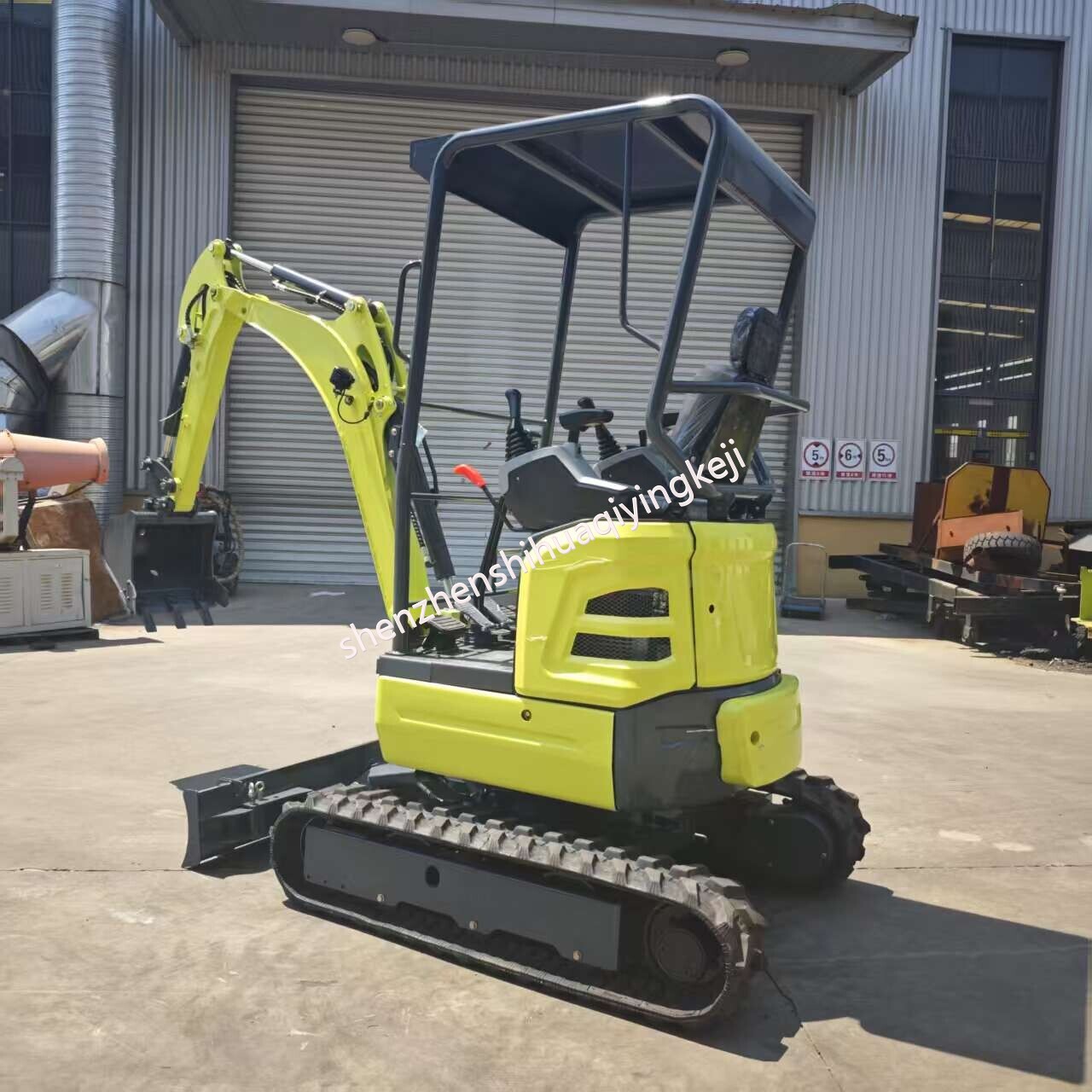

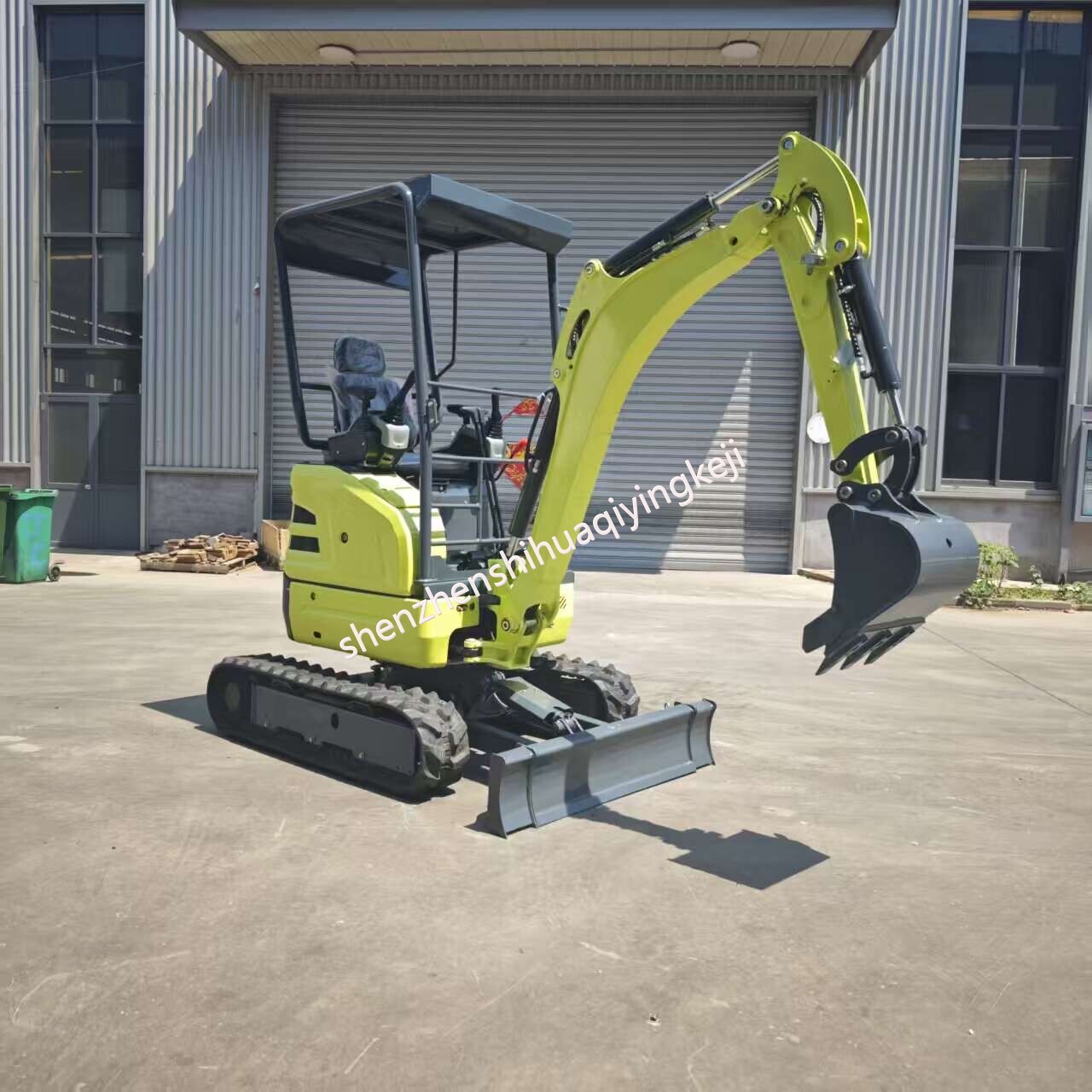

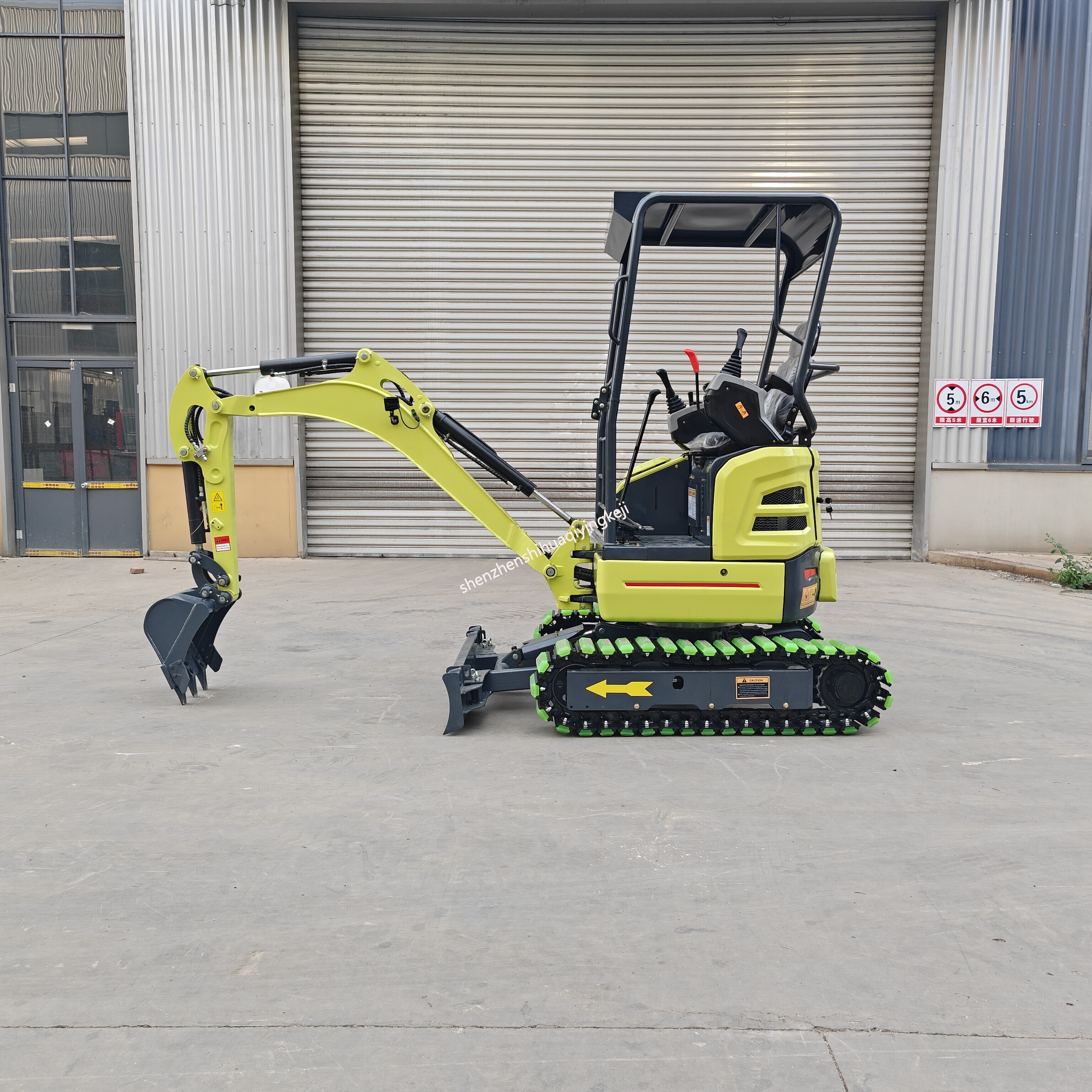

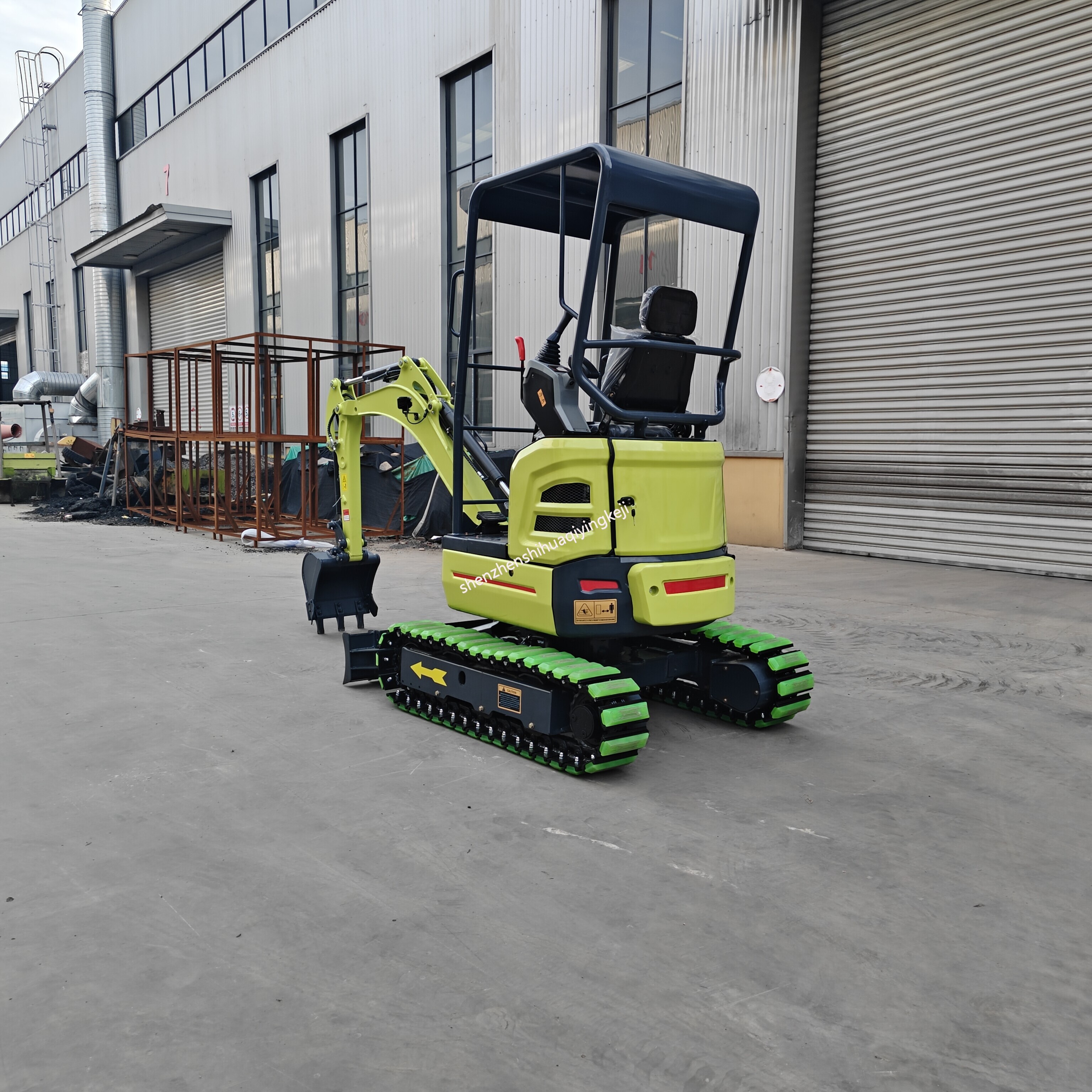

Standard configuration without a cab
Basic Configuration:
1. Boom swing
2. Extendable chassis
3. Hidden travel high and low speed motors
4. Load sensing valve
5. Variable displacement piston pump
6. Piston rotary motor

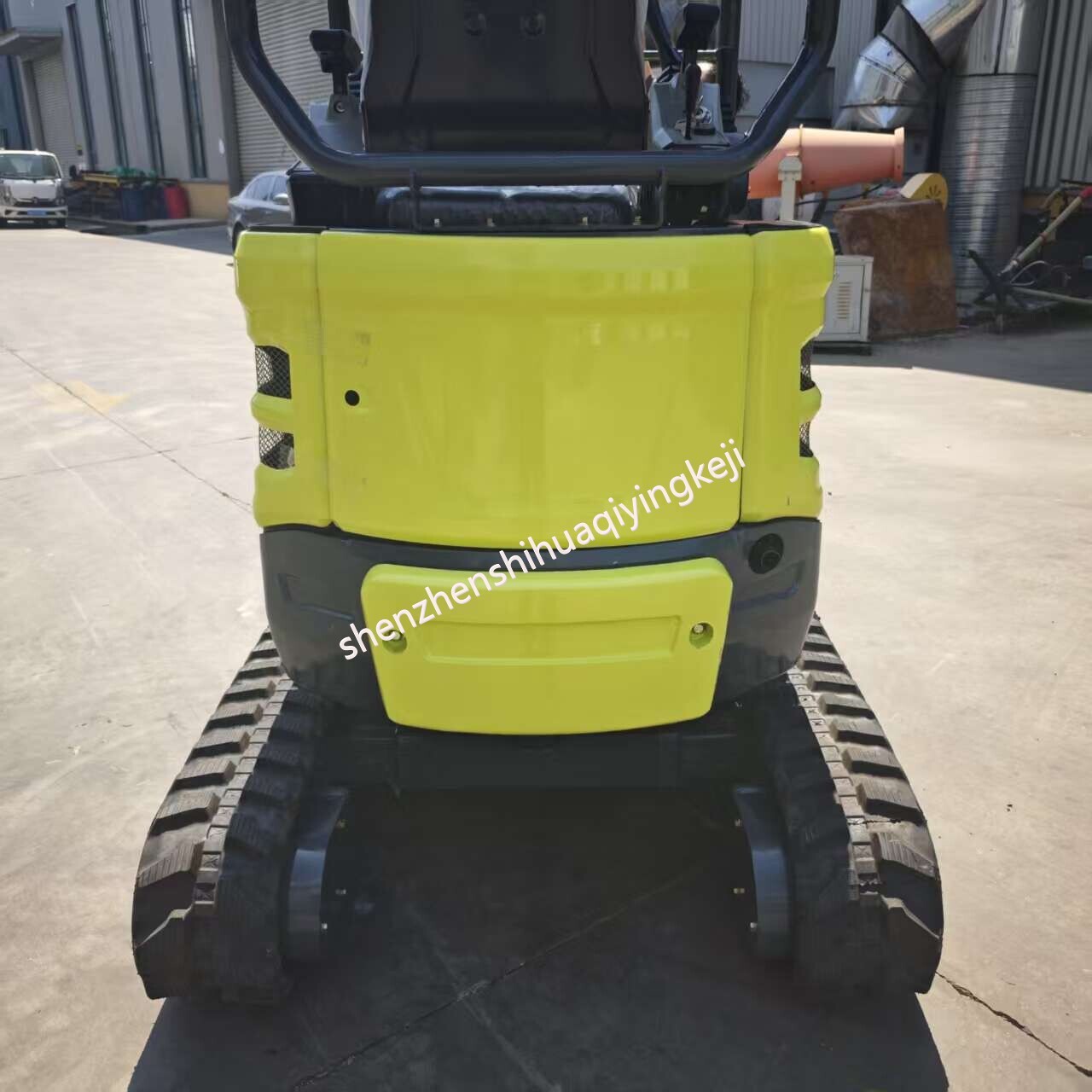

7. Dual cast iron counterweights
8. Short-pitch rubber tracks 230*48*70 mm

Inquiry Now

技术性能参数 SPECIFICATION		单位 Unit
整机重量 Operating weight		kg	1800
标准铲斗容量 Bucket capacity		m3	0.04
工作装置形式 Working device form		/	反铲 Backhoe
燃油箱容量 Fuel tank capacity		L	19
发动机 Engine	型号 Model	/	久保田D902-E4B-CBH-1
	排量 Displacement	L	0.898
	额定输出功率/转速 Engine power/rpm	kw/r（PS / rpm）	11.8 / 2300 (16.1 / 2300)
	最大扭矩 Max. torque	N.m/ r/min	51.3 /1800
	发动机油容量最大（有效） Engine oil capacity	L	3.7
速度与挖掘力 Speed/ Digging force	最大行走速度 km/h	km/h	2.2/4.5
	回转速度 Swing speed rpm	rpm	9.5
	最大爬坡能力 Max. Grade ability	°	30°
	铲斗挖掘力 Bucket digging force kN	kN	16
	斗杆挖掘力 Bucket arm digging force kN	kN	9.5
	最大牵引力 Maximum tractive force kN	kN	18
行走部参数
履带材料 Track Material			橡胶 rubber
履带型号 Track Model			2304870
履带涨紧装置类型 Crawler tension device			黄油油缸 Butter oil cylinder
接地比压 Ground pressure kPa		kPa	29
液压系统 Hydraulic System
泵型式 Pump type			柱塞泵 Piston pump
工作压力 Pressure Mpa		MPa	23MPa
流量 Displacement		L	64L/min
回转马达类型 Rotary hydraulic motor			柱塞马达 Piston motor
行走马达类型 Walking hydraulic motor			柱塞马达 Piston motor
多路阀类型 Hydraulic manifold valve			负载敏感阀Load Sensing Valves
液压油箱容积 Hydraulic oil tank capacity		L	17.5
1. Oil Pump --- A10V28DFLR --- Taifeng/Edi
2. Multi-way Valve --- TRM10-BX-KS-1.8T-9 Hydraulic Load-Sensing Multi-way Valve --- Taifeng/Edi
3. Travel Motor --- TM02 Travel Piston Motor --- Zhongwei Zhuote/Edi/Likechuan
4. Hydraulic Oil Cooler --- Plate-fin Oil-Water Split Radiator (Customized)
