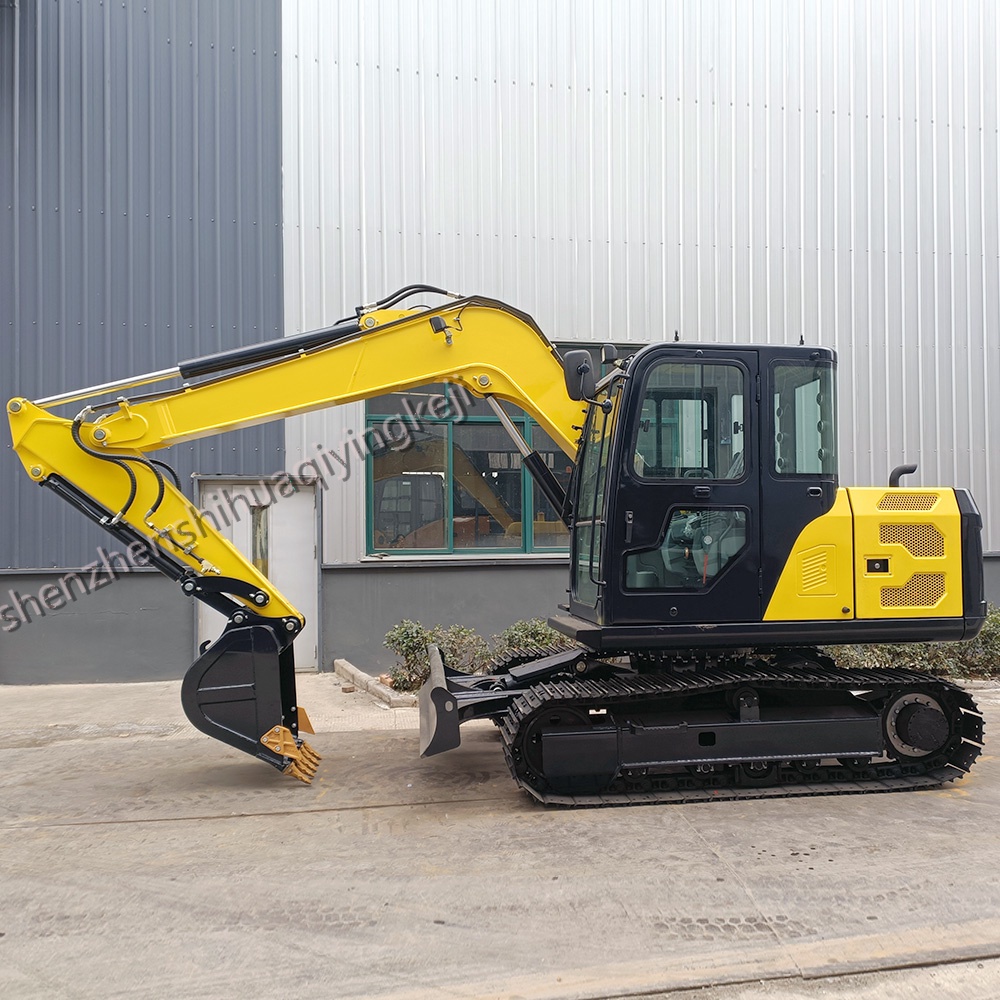

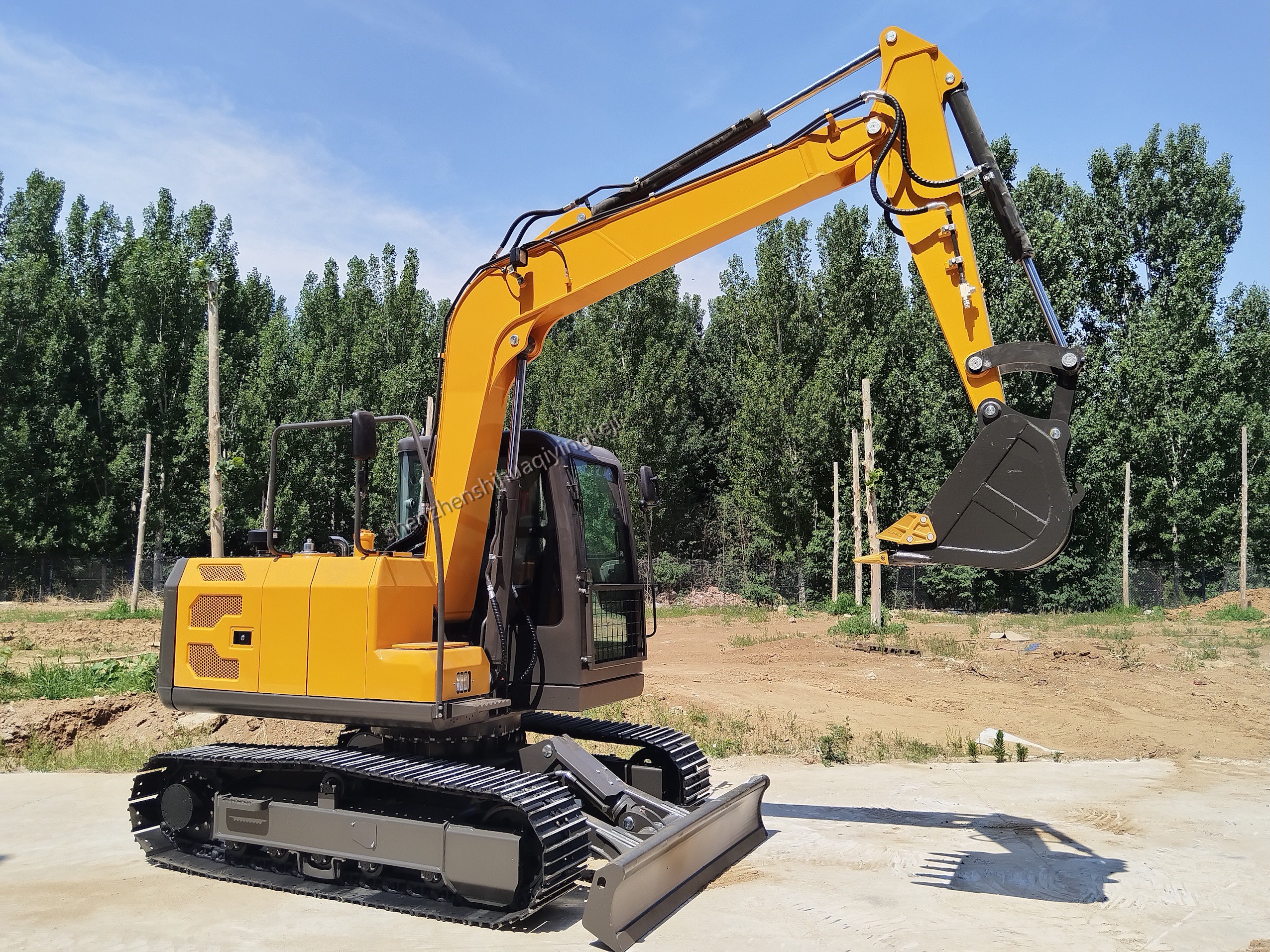

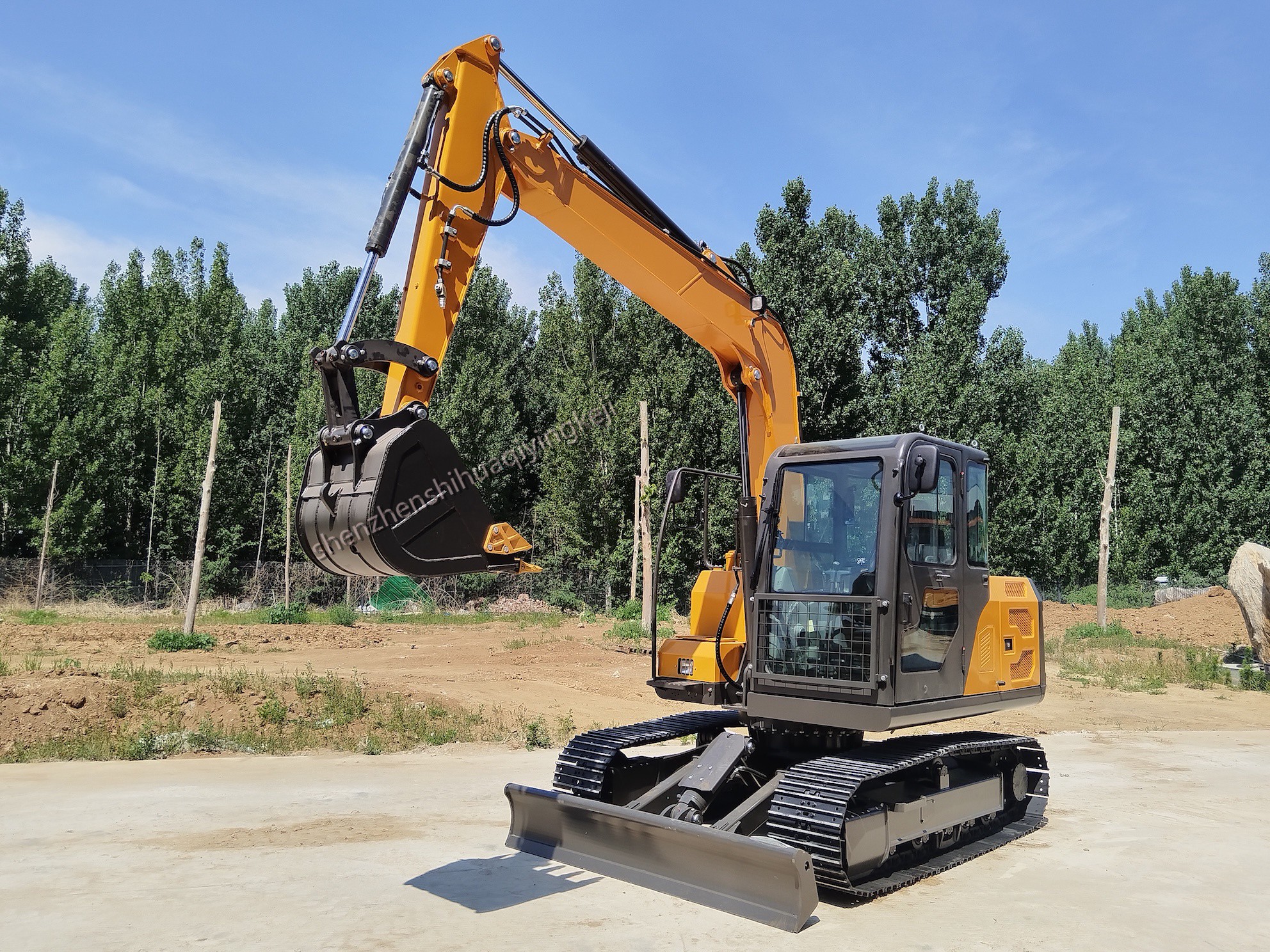

HQE75 Excavator Technical Specifications

■ Premium Powertrain & Global Compliance

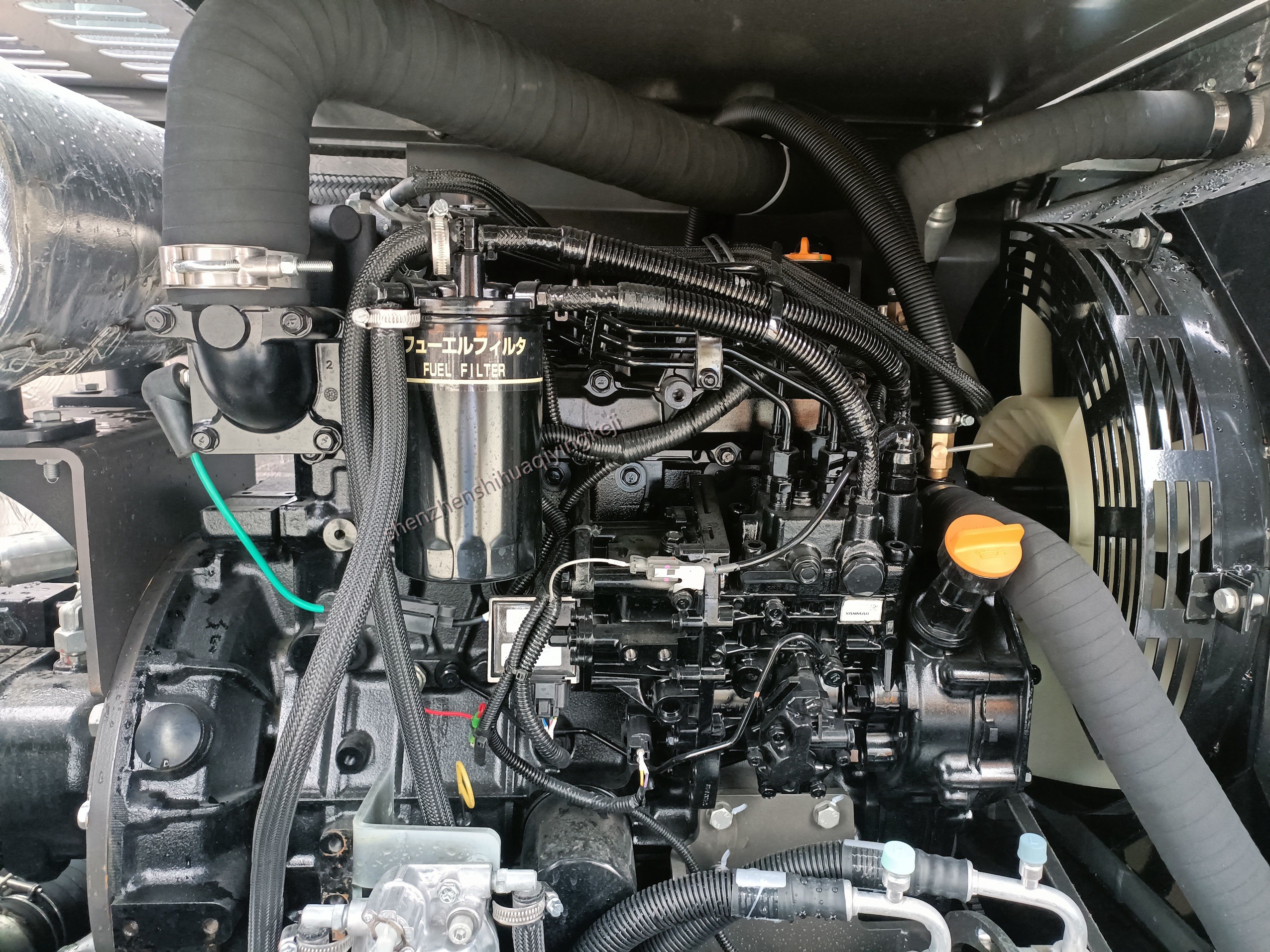

• Engine Excellence: Standard equipped with the reliable Yanmar 4TNV98 (44kW/59hp).

• Emission Ready: Fully compliant with EURO 5 and EPA regulations for easy import and operation in Europe and North America.

• Brand Flexibility: Optional Isuzu or Cummins engines are available to match your local service preferences and fleet requirements.

■ Exceptional Digging Performance

• Unmatched Force: With a 56kN bucket digging force and 38kN arm digging force, the HQE75 tackles tough terrain with ease.

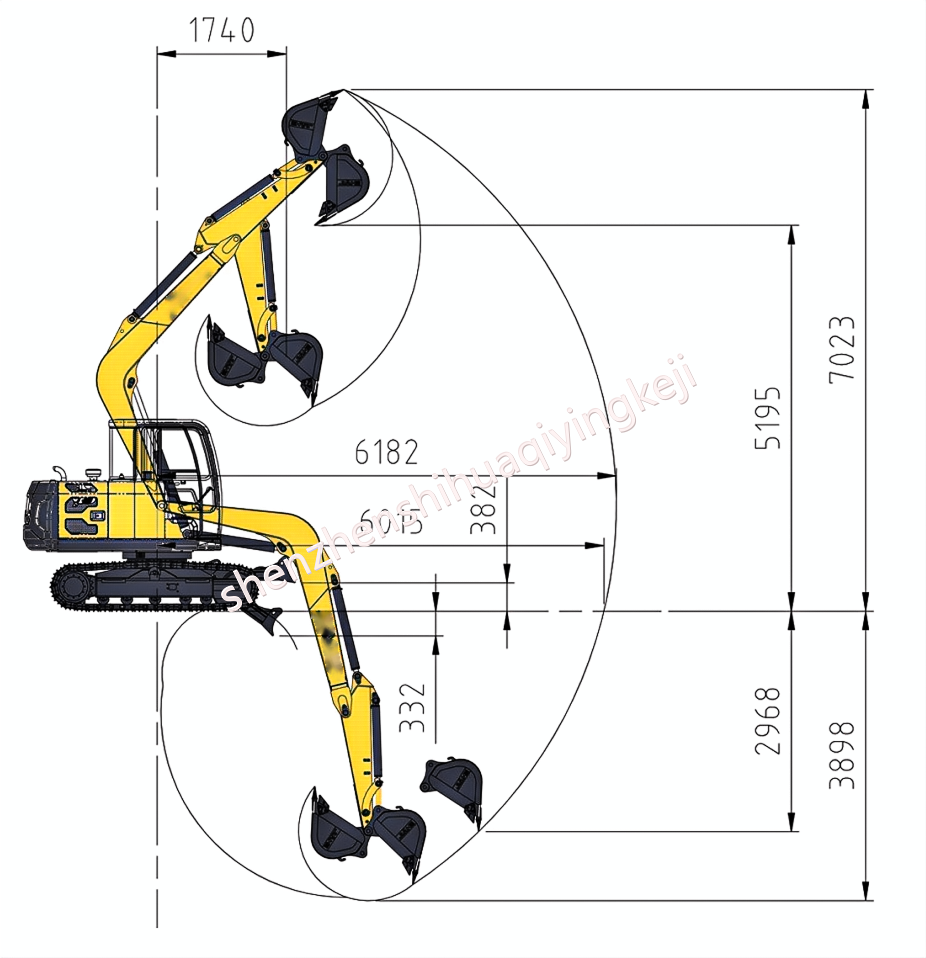

• Working Range: Achieve a maximum digging depth of 3898mm and a digging radius of 6182mm, making it highly efficient for deep trenching.

• Efficient Loading: A 0.28m³ large-capacity bucket combined with a 5195mm dumping height ensures fast truck loading cycles.

■ Heavy-Duty Structure & Stability

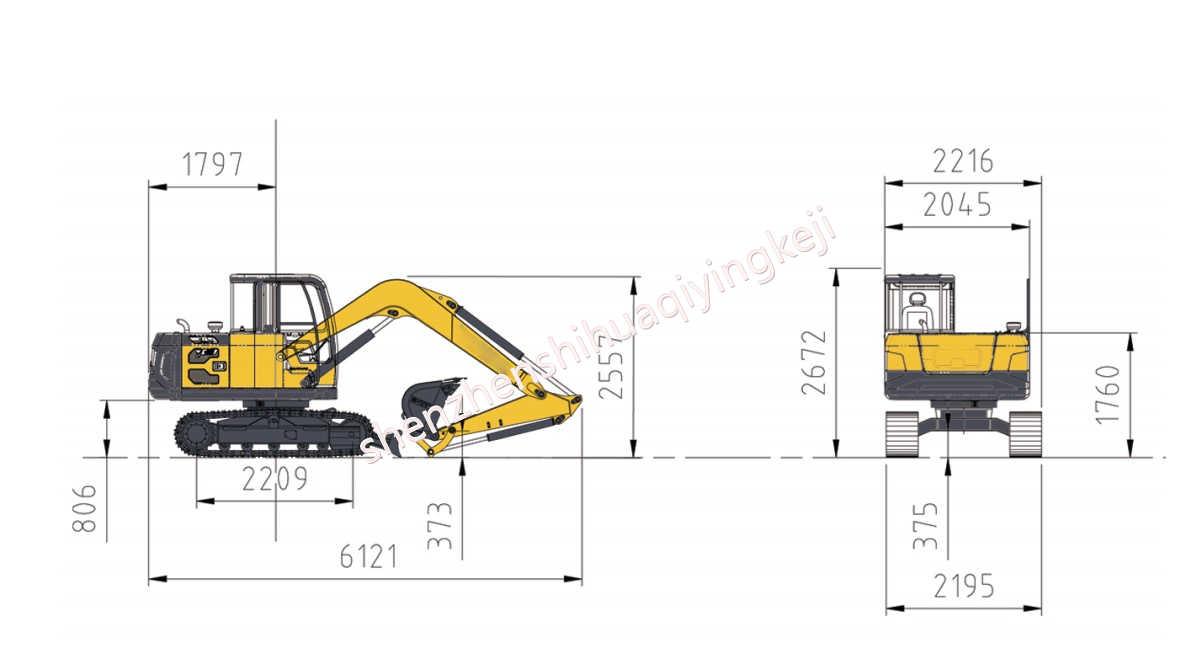

• Stability First: An axle base of 2209mm and a machine width of 2216mm provide a rock-solid foundation for heavy lifting.

• Ground Clearance: A high 375mm ground clearance allows for superior mobility on uneven construction sites.

• Precision Hydraulics: Operates at a system pressure of 27 MPa, ensuring smooth and powerful compound movements.

■ Operator Safety & Comfort

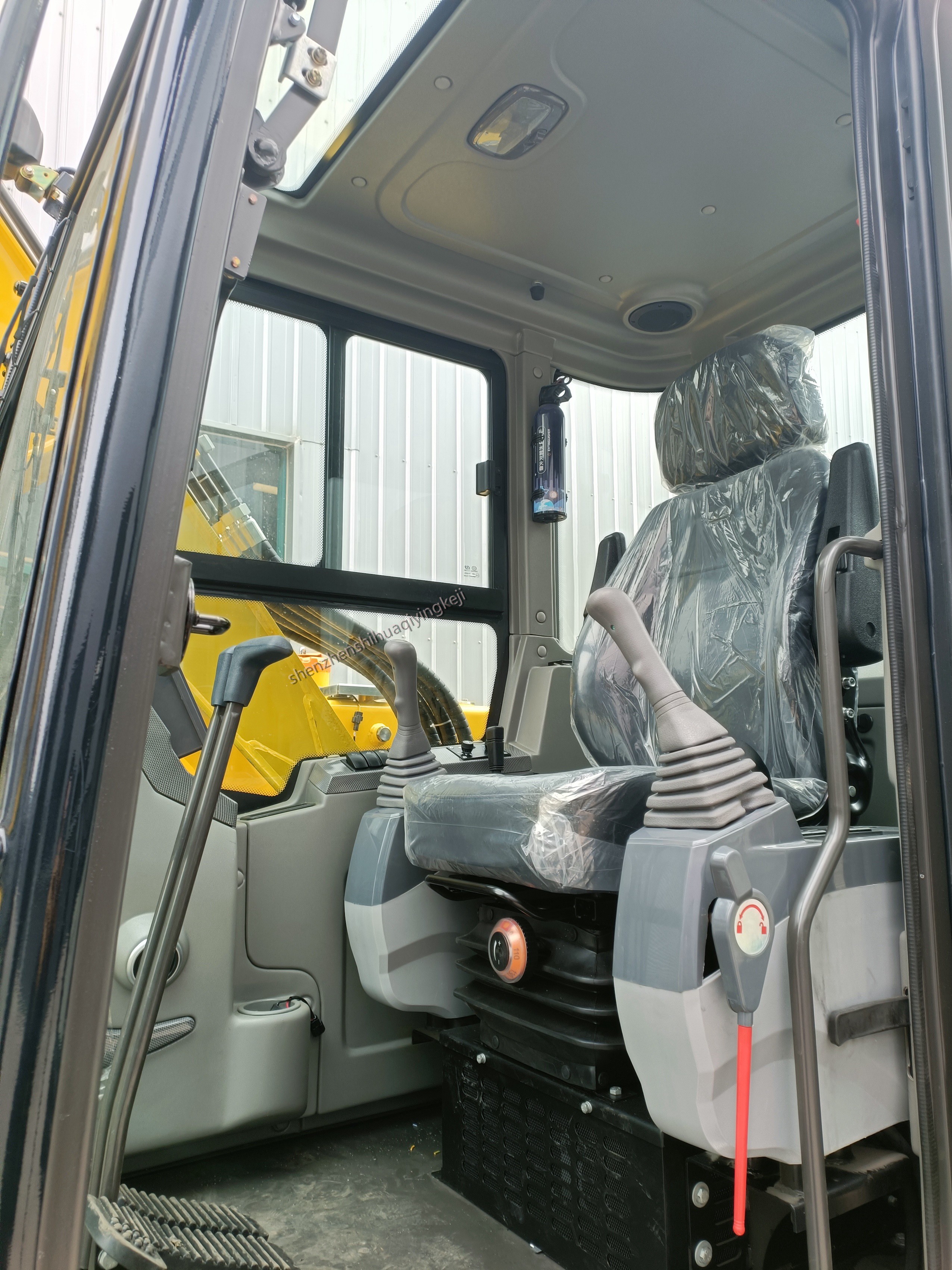

• Full Cab Comfort: Features a spacious, sealed 2672mm high cabin with ergonomic controls and excellent visibility.

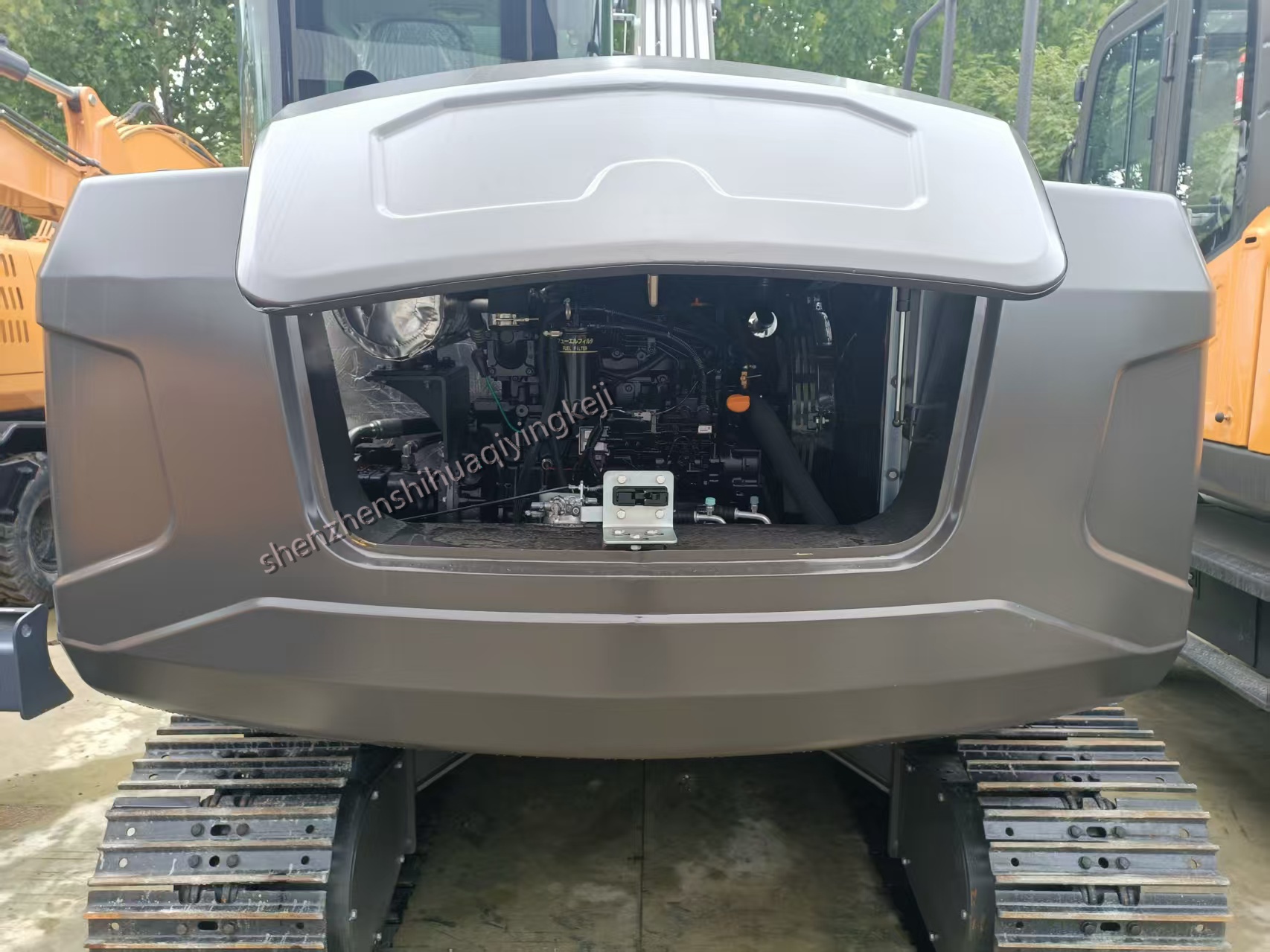

• Easy Maintenance: Large engine hoods and centralized grease points reduce downtime and service costs.
